Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production:
T Thread Stud - Cast
Terminal, Toggle - Forged
Surface Treatment: Electro Polished

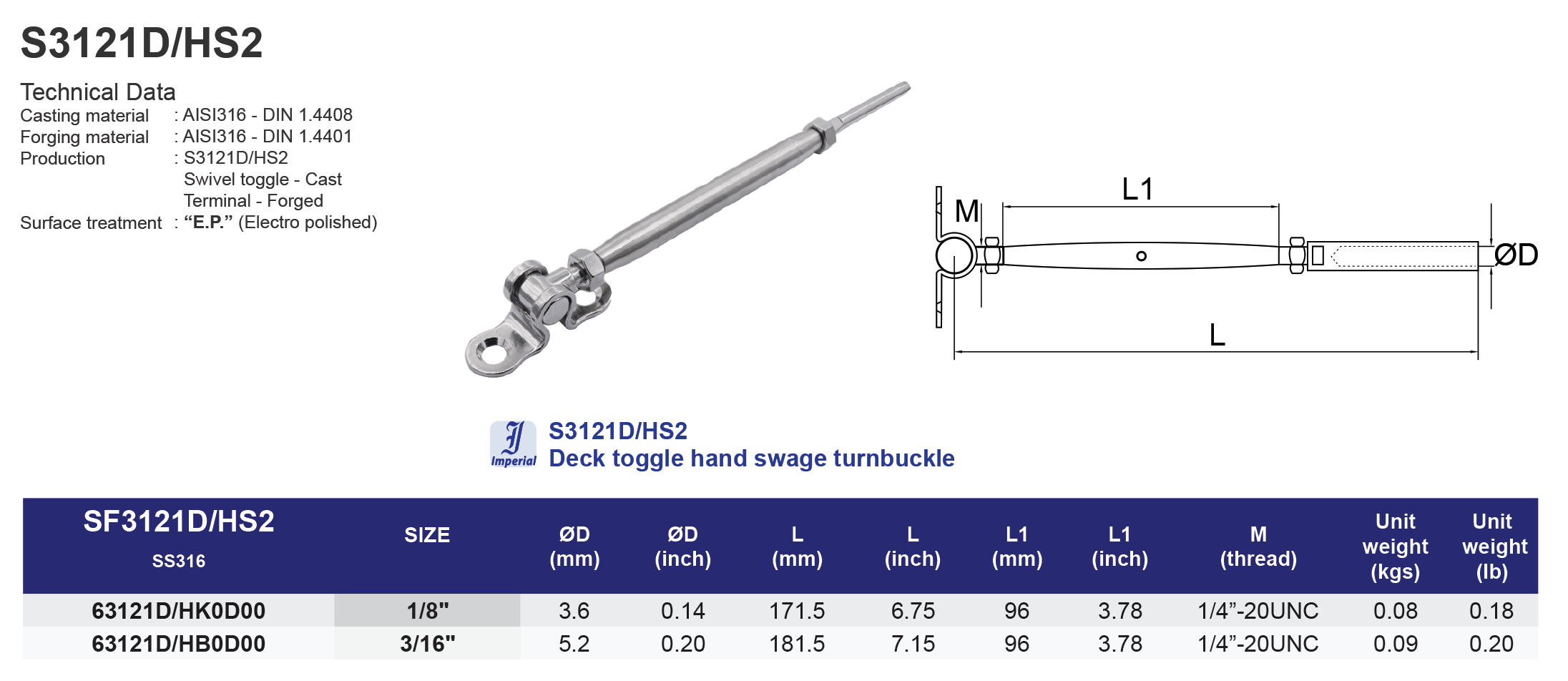

Model
S3121D/HS2

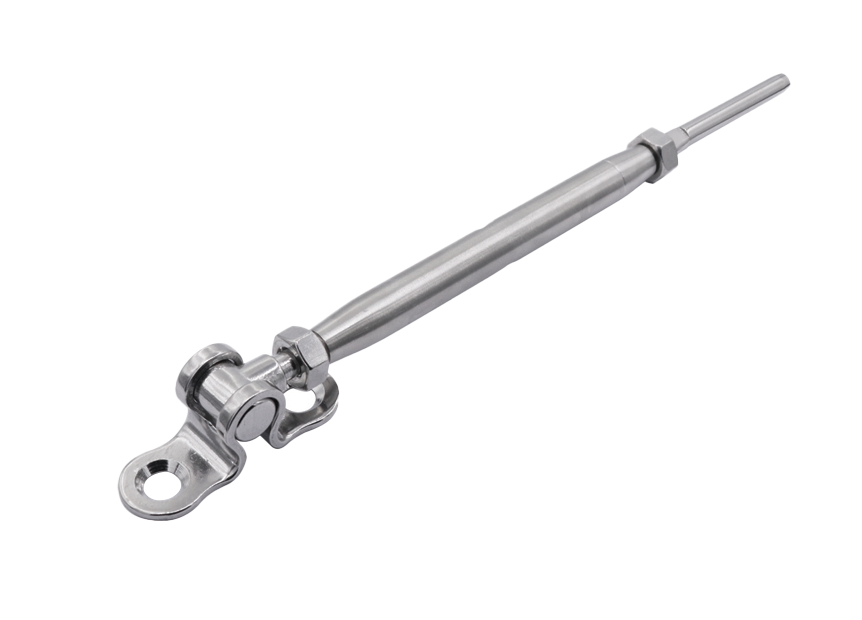

Deck toggle hand swage turnbuckle
316 ss

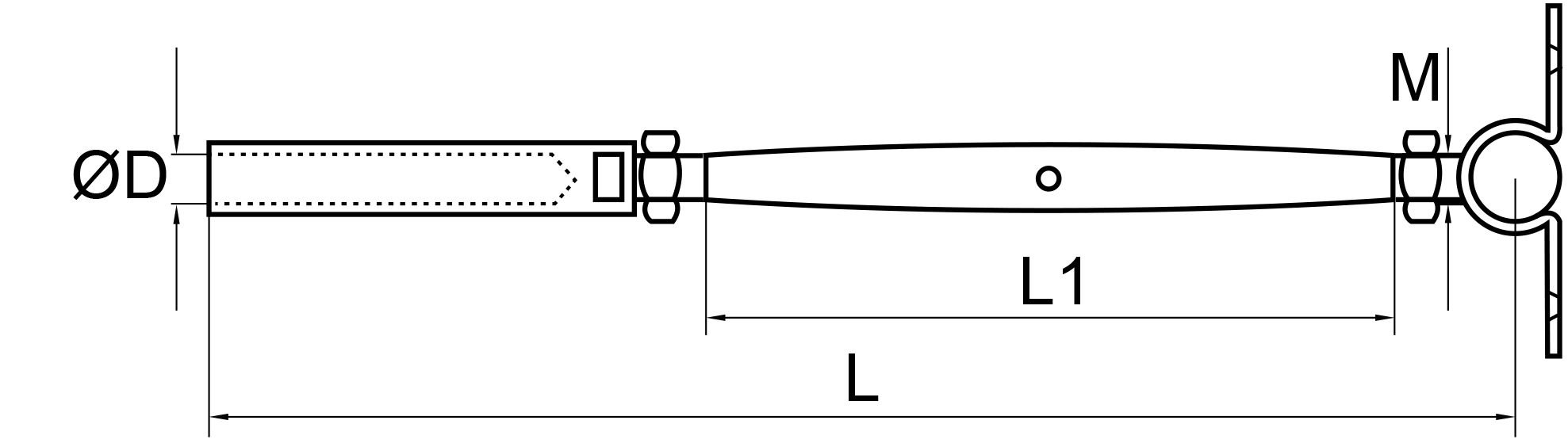

| SS316 | SIZE | ØD (mm) | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63121D/HK0D00 | 1/8" | 3.6 | 171.5 | 96 | 1/4"-20UNC | 0.08 |
| 63121D/HB0D00 | 3/16" | 5.2 | 181.5 | 96 | 1/4"-20UNC | 0.09 |
| SS316 | SIZE | ØD (inch) | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63121D/HK0D00 | 1/8" | 0.14 | 6.75 | 3.78 | 1/4"-20UNC | 0.18 |
| 63121D/HB0D00 | 3/16" | 0.20 | 7.15 | 3.78 | 1/4"-20UNC | 0.20 |
