S3121/5/TG1 Toggle hand swage turnbuckle

SKU: 63121/5TK0D00

Size (Cable) Inch: 1/8”
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material:
AISI316 - DIN 1.4401
Production:
SF3121 / 7 - Eye - Forged
Terminal - Forged
Surface Treatment:
Matte finished / Passivated

DATA SHEET DOWNLOAD

Model

S3121/5/TG1

Toggle hand swage turnbuckle
316 ss

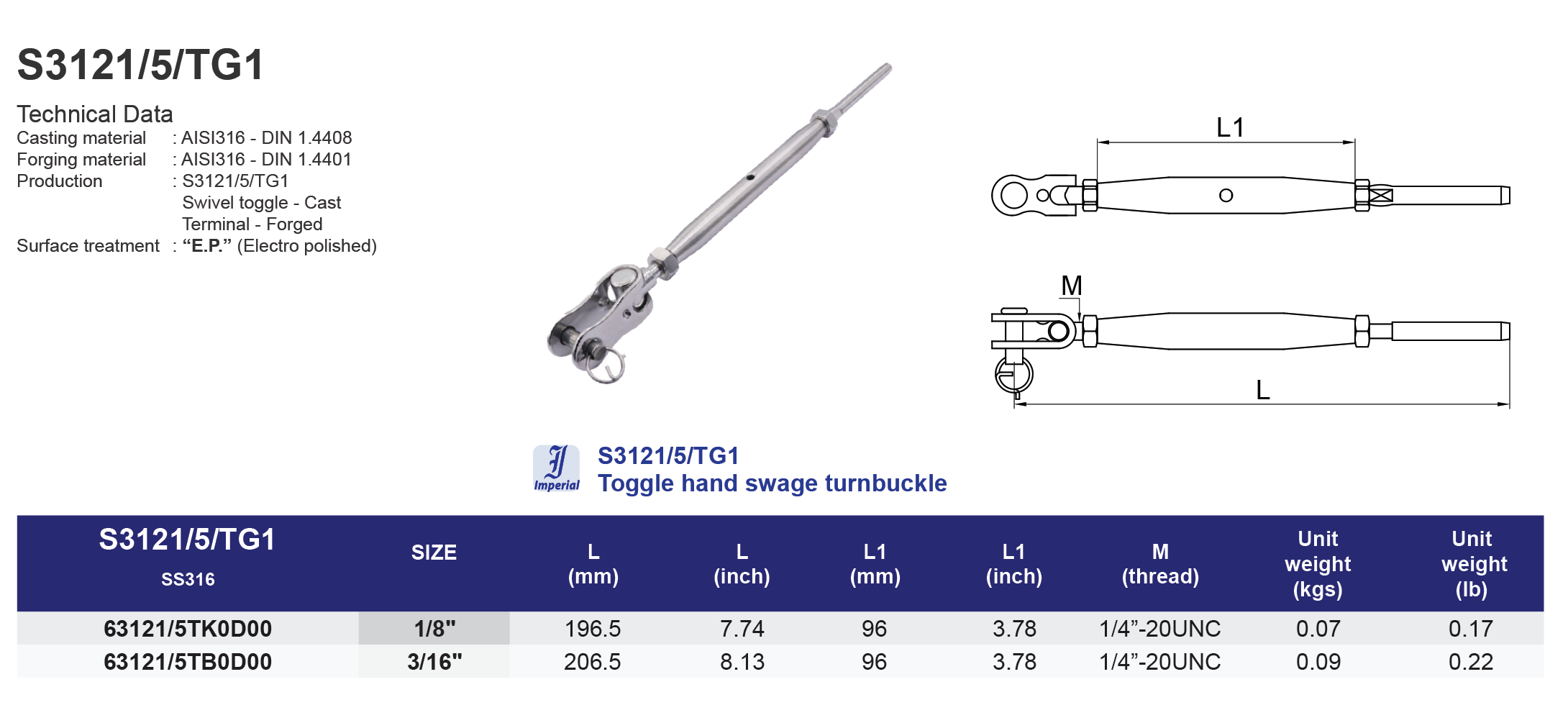

S3121_5_TG1 drawing

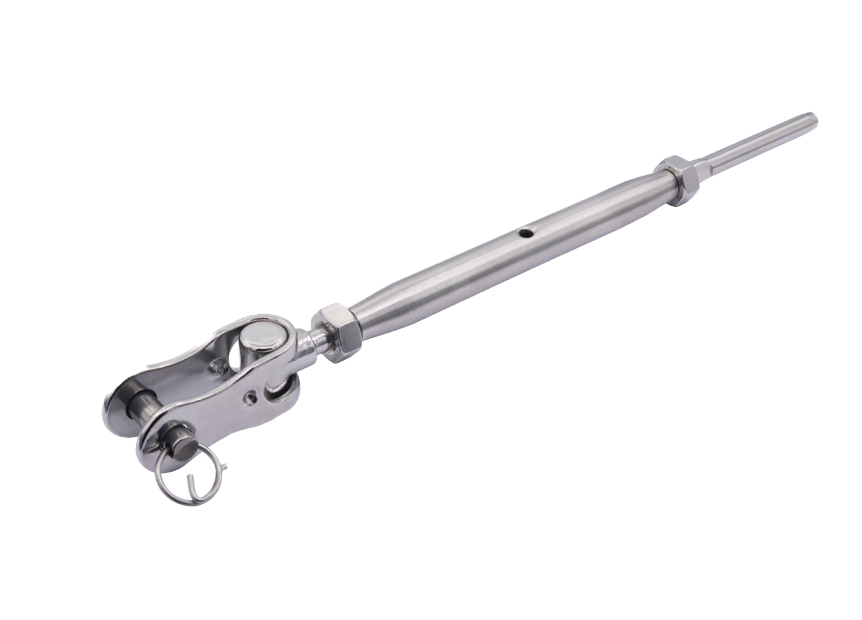

S3121_5_TG1 image
SS316SizeL (mm)L1 (mm)M (thread)Weight (kgs)
63121/5TK0D001/8"196.3495.761/4"-20UNC0.076
63121/5TB0D003/16"206.2595.761/4"-20UNC0.098
SS316SizeL (inch)L1 (inch)M (thread)Weight (lb)
63121/5TK0D001/8"7.733.771/4"-20UNC0.170
63121/5TB0D003/16"8.123.771/4"-20UNC0.220
