Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311US/EE Frame - Cast
Eye - Forged
Surface Treatment: “M.F.” (Matte finished) Note : Standard safety factor for working load
is 1/4 of breaking load

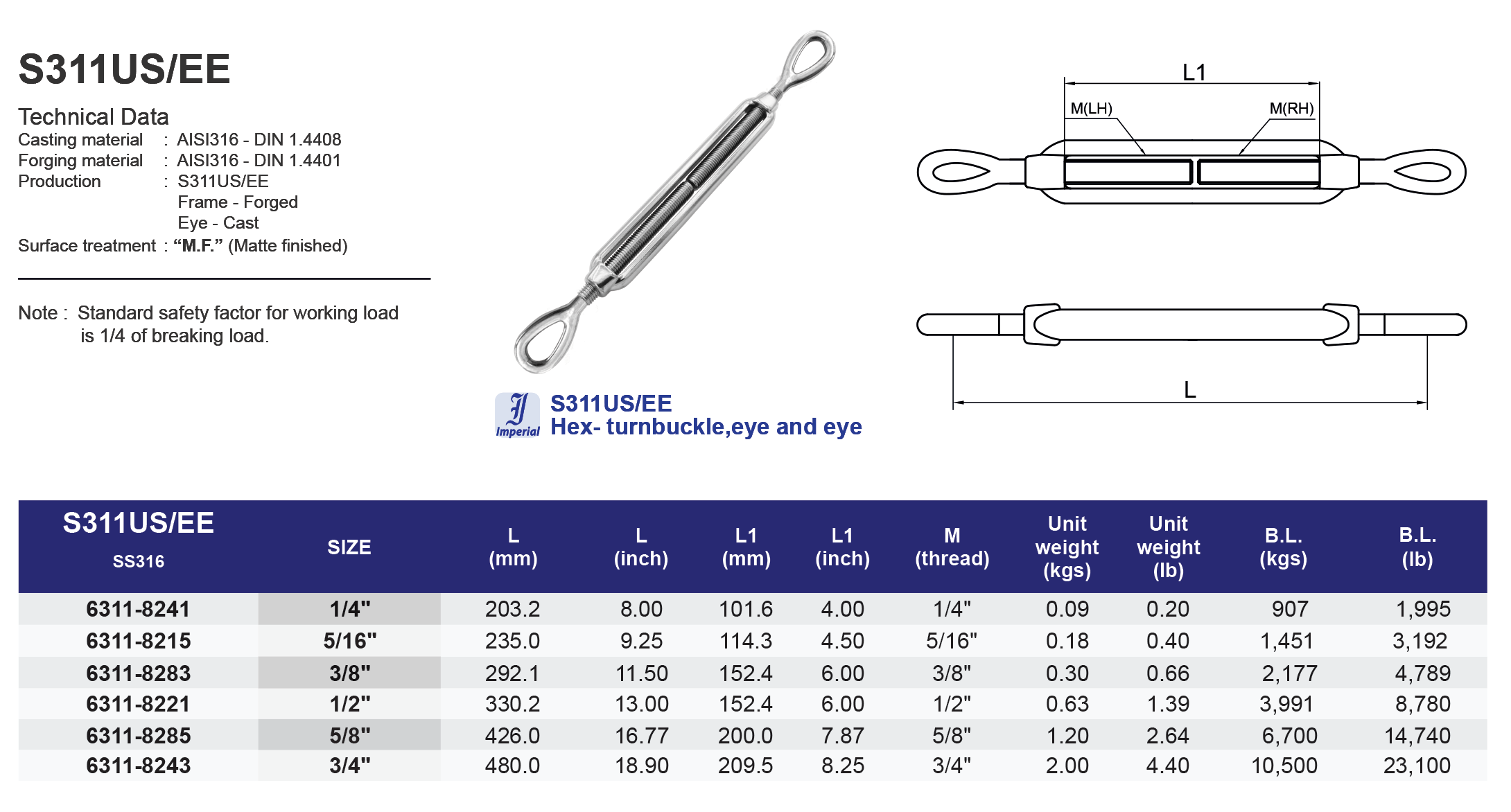

Model
S311US/EE

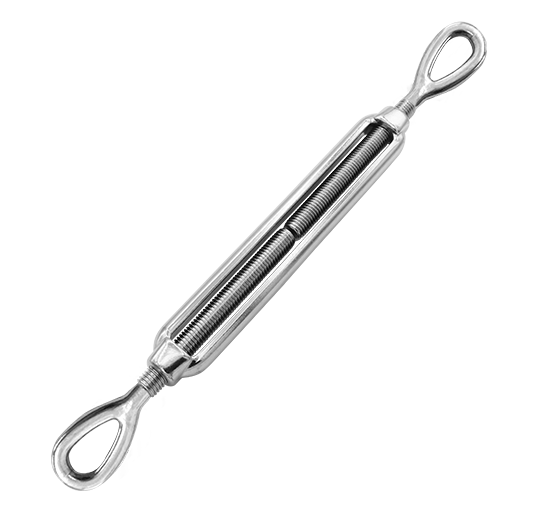

Hex turnbuckle, eye and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (inch) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63118241 | 1/4" | 203.2 | 101.6 | 1/4" | 0.09 | 907 |
| 63118215 | 5/16" | 235.0 | 114.3 | 5/16" | 0.18 | 1,451 |
| 63118283 | 3/8" | 292.1 | 152.4 | 3/8" | 0.30 | 2,177 |
| 63118221 | 1/2" | 330.2 | 152.4 | 1/2" | 0.63 | 3,991 |
| 63118285 | 5/8" | 426.0 | 200.0 | 5/8" | 1.20 | 6,700 |
| 63118243 | 3/4" | 480.0 | 209.5 | 3/4" | 2.00 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63118241 | 1/4" | 8.00 | 4.00 | 1/4" | 0.20 | 1,995 |
| 63118215 | 5/16" | 9.25 | 4.50 | 5/16" | 0.40 | 3,192 |
| 63118283 | 3/8" | 11.50 | 6.00 | 3/8" | 0.66 | 4,789 |
| 63118221 | 1/2" | 13.00 | 6.00 | 1/2" | 1.39 | 8,780 |
| 63118285 | 5/8" | 16.77 | 7.87 | 5/8" | 2.64 | 14,740 |
| 63118243 | 3/4" | 18.90 | 8.25 | 3/4" | 4.40 | 23,100 |
