Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Forging Material:
AISI316 - DIN 1.4401
Production:
S311K - Frame - Cast
Stud - Forged
Surface Treatment:
Electro polished / Passivated

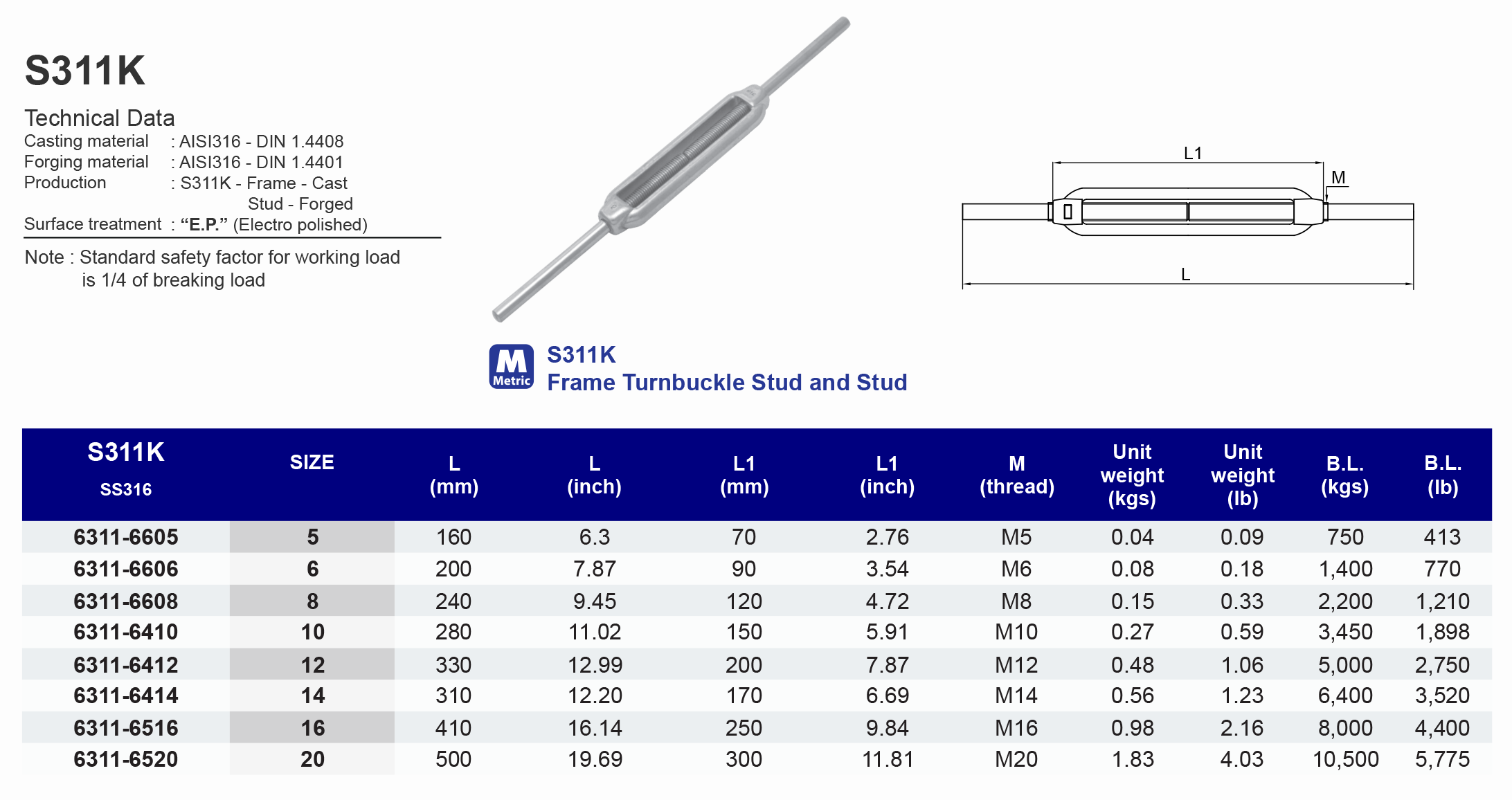

Model
S311K

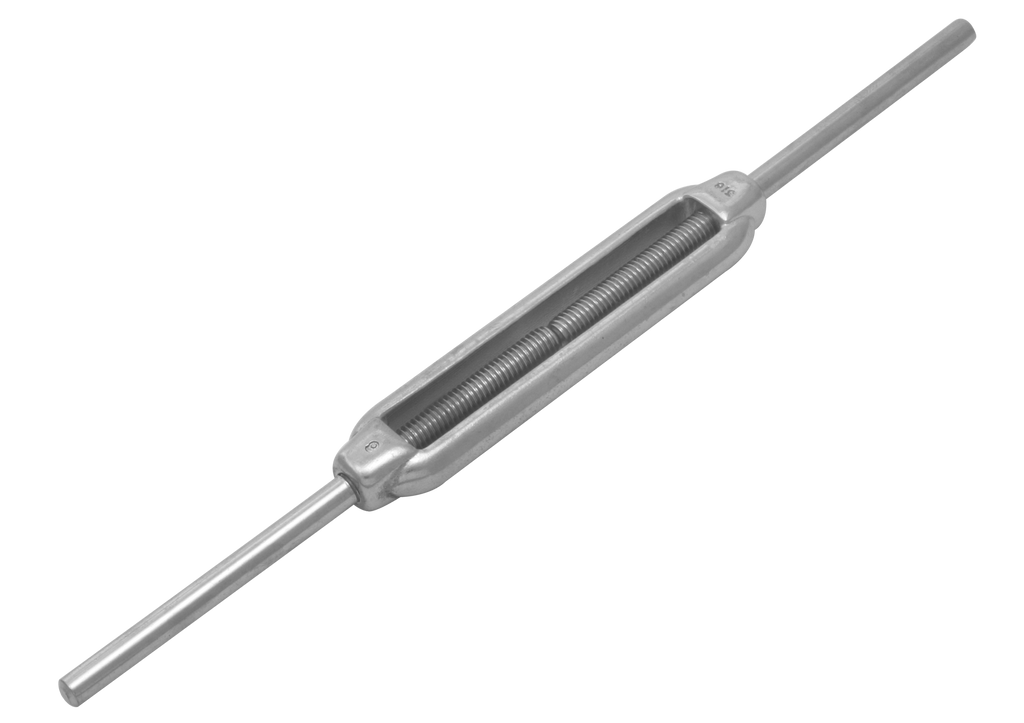

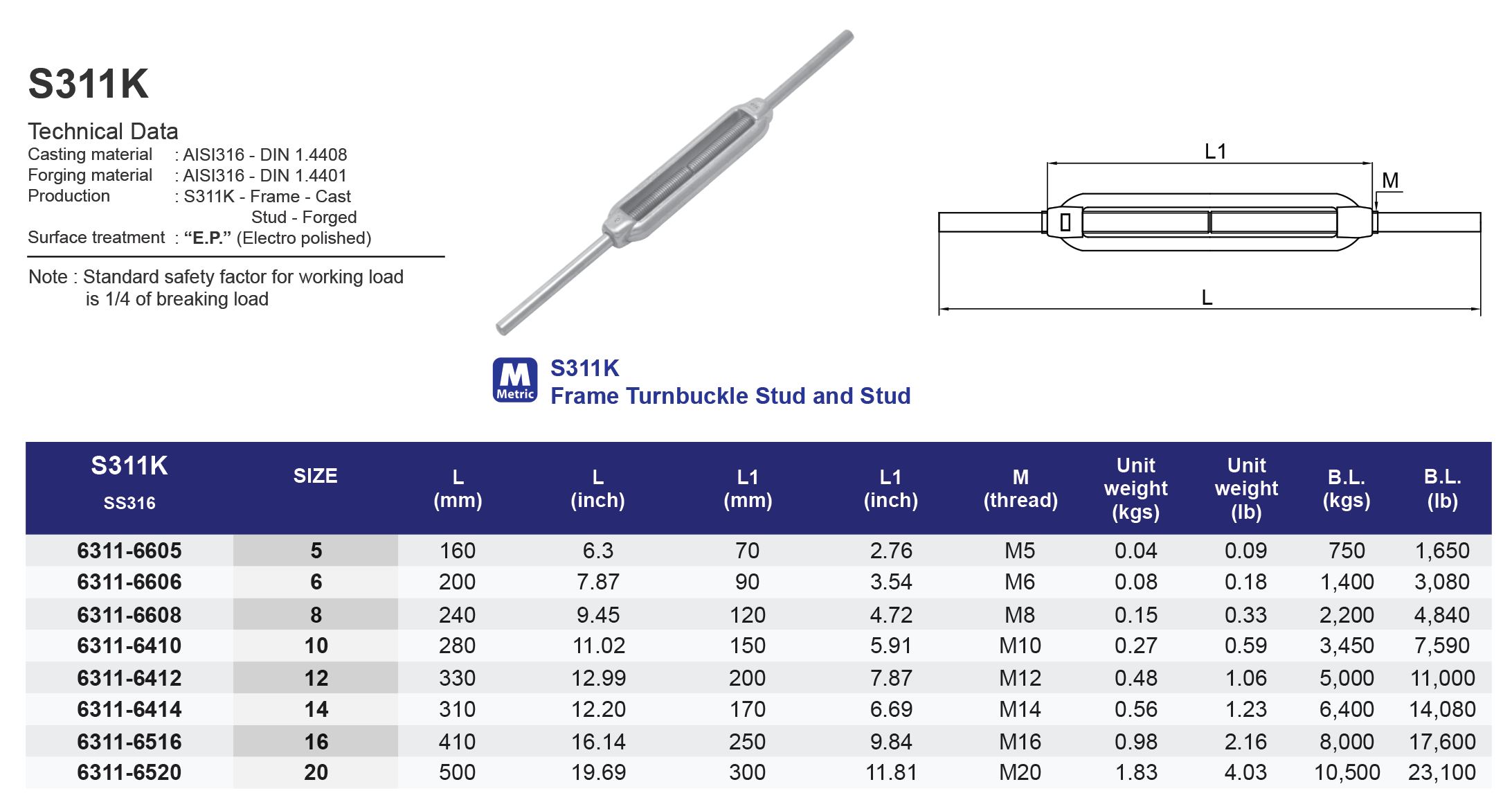

Frame Turnbuckle Stud and Stud
316 ss
| SS316 | Size | L(mm) | L1(mm) | M(thread) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 63116605 | 5 | 160 | 70 | M5 | 0.04 | 750 |
| 63116606 | 6 | 200 | 90 | M6 | 0.08 | 1,400 |
| 63116608 | 8 | 240 | 120 | M8 | 0.15 | 2,200 |
| 63116410 | 10 | 280 | 150 | M10 | 0.27 | 3,450 |
| 63116412 | 12 | 330 | 200 | M12 | 0.48 | 5,000 |
| 63116414 | 14 | 310 | 170 | M14 | 0.56 | 6,400 |
| 63116516 | 16 | 410 | 250 | M16 | 0.98 | 8,000 |
| 63116520 | 20 | 500 | 300 | M20 | 1.83 | 10,500 |
| SS316 | Size | L(inch) | L1(inch) | M(thread) | Unit weight (Ib) | B.L.(lb) |
|---|---|---|---|---|---|---|
| 63116605 | 5 | 6.30 | 2.76 | M5 | 0.09 | 1,650 |
| 63116606 | 6 | 7.87 | 3.54 | M6 | 0.18 | 3,080 |
| 63116608 | 8 | 9.45 | 4.72 | M8 | 0.33 | 4,840 |
| 63116410 | 10 | 11.02 | 5.91 | M10 | 0.59 | 7,590 |
| 63116412 | 12 | 12.99 | 7.87 | M12 | 1.06 | 11,000 |
| 63116414 | 14 | 12.20 | 6.69 | M14 | 1.23 | 14,080 |
| 63116516 | 16 | 16.14 | 9.84 | M16 | 2.16 | 17,600 |
| 63116520 | 20 | 19.69 | 11.81 | M20 | 4.03 | 23,100 |
