S311JJ Frame turnbuckle, jaw and jaw - 316 (CLEARANCE SALE)

SKU: 63116408

Size: M8 (Min 12pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311JJ - Frame - Cast
Jaw - Forged
Accessory - See Chart
Surface Treatment: “E.P.” (Electro polished) DATA SHEET DOWNLOAD



Model

S311JJ

Frame turnbuckle, jaw and eye
316 ss

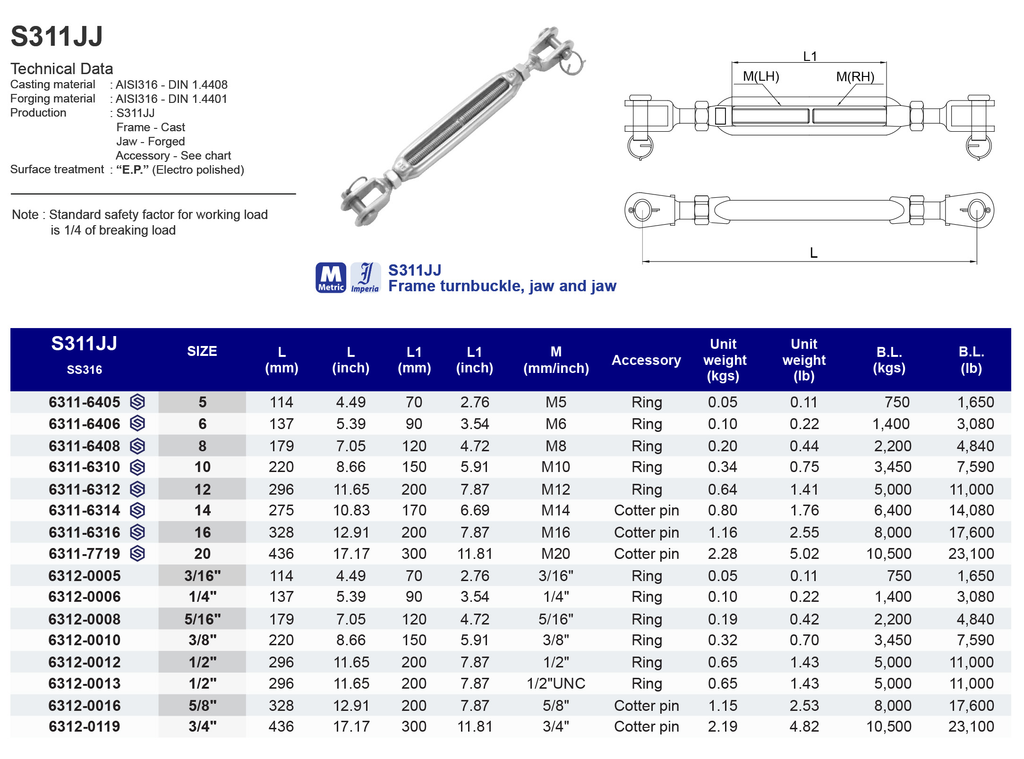

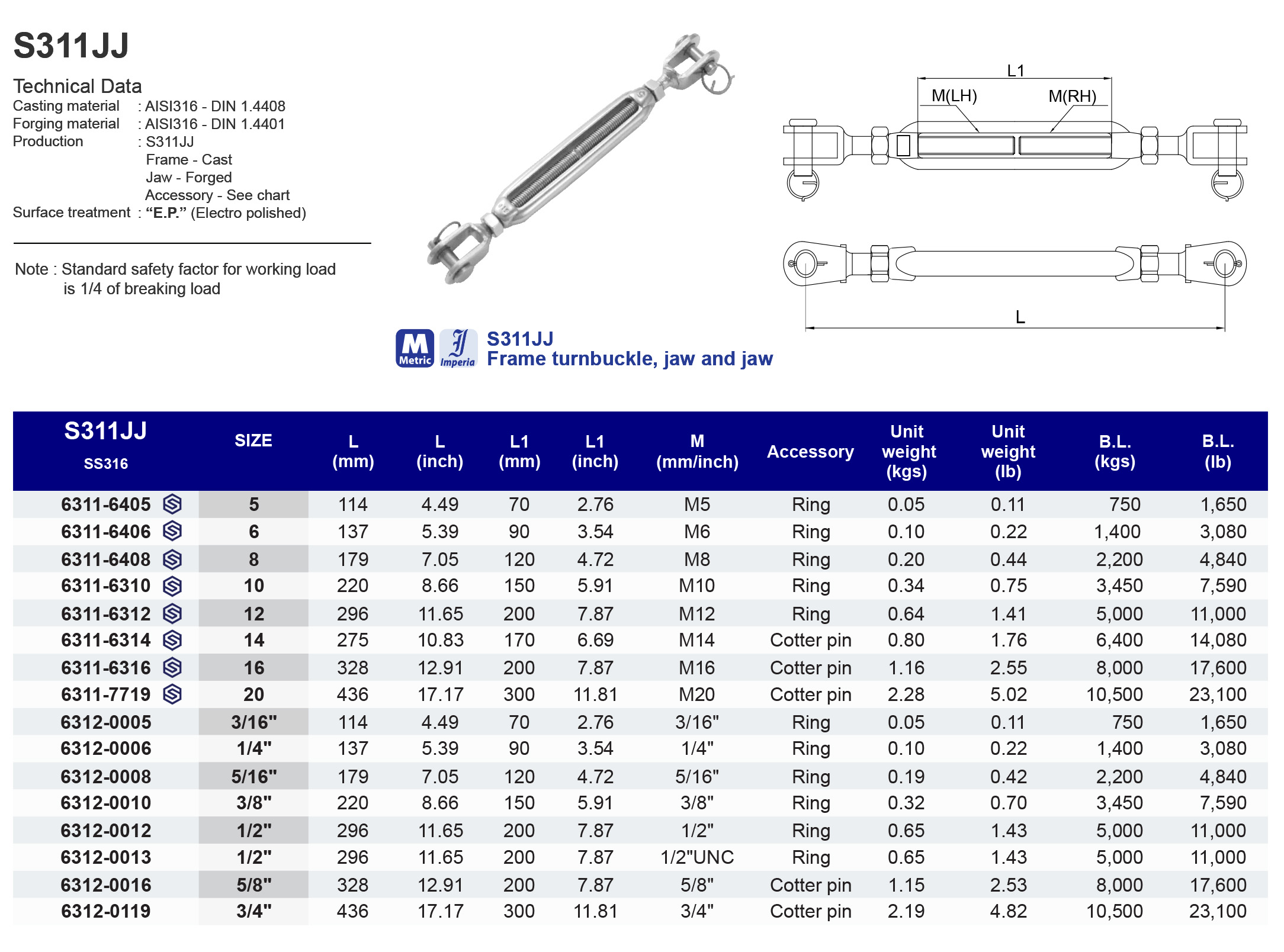

S311JJdrawing

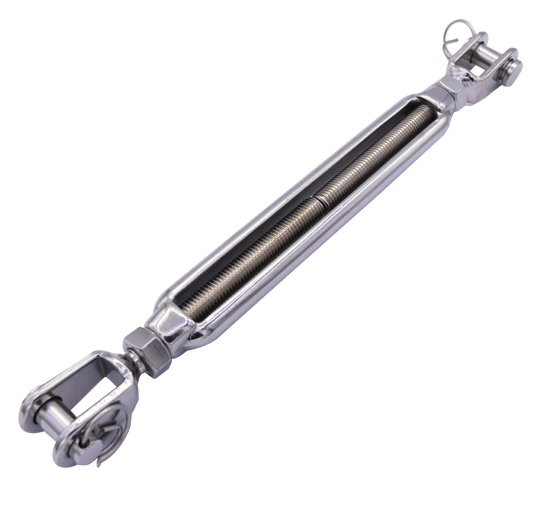

S311JJ image
SS316SizeL (mm)L1 (mm)M (mm)AccessoryUnit weight (kgs)B.L. (kgs)
63116405511470M5Ring0.05750
63116406613790M6Ring0.101,400
631164088179120M8Ring0.202,200
6311631010220150M10Ring0.343,450
6311631212296200M12Ring0.645,000
6311631414275170M14Cotter pin0.806,400
6311631616328200M16Cotter pin1.168,000
6311771920436300M20Cotter pin2.2810,500
SS316SizeL (inch)L1 (inch)M (inch)AccessoryUnit weight (lb)B.L. (lb)
631200053/16"4.492.763/16"Ring0.111,650
631200061/4"5.393.541/4"Ring0.223,080
631200085/16"7.054.725/16"Ring0.424,840
631200103/8"8.665.913/8"Ring0.707,590
631200121/2"11.657.871/2"Ring1.4311,000
631200131/2"11.657.871/2"UNCRing1.4311,000
631200165/8"12.917.875/8"Cotter pin2.5317,600
631201193/4"17.1711.813/4"Cotter pin4.8223,100
