Description

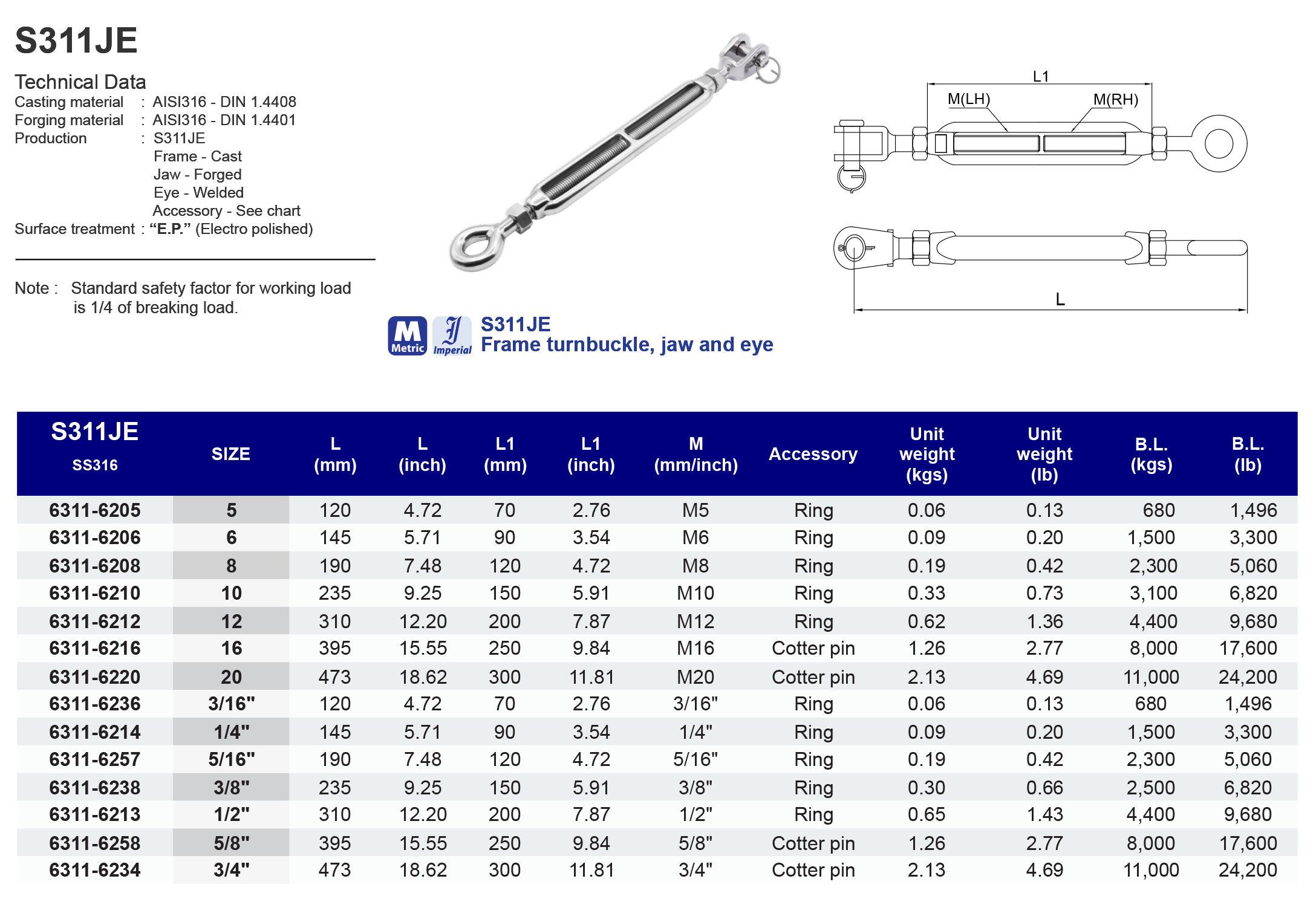

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311JE - Frame - Cast
Jaw - Forged
Eye - Welded
Accessory - See Chart
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.
Model
S311JE

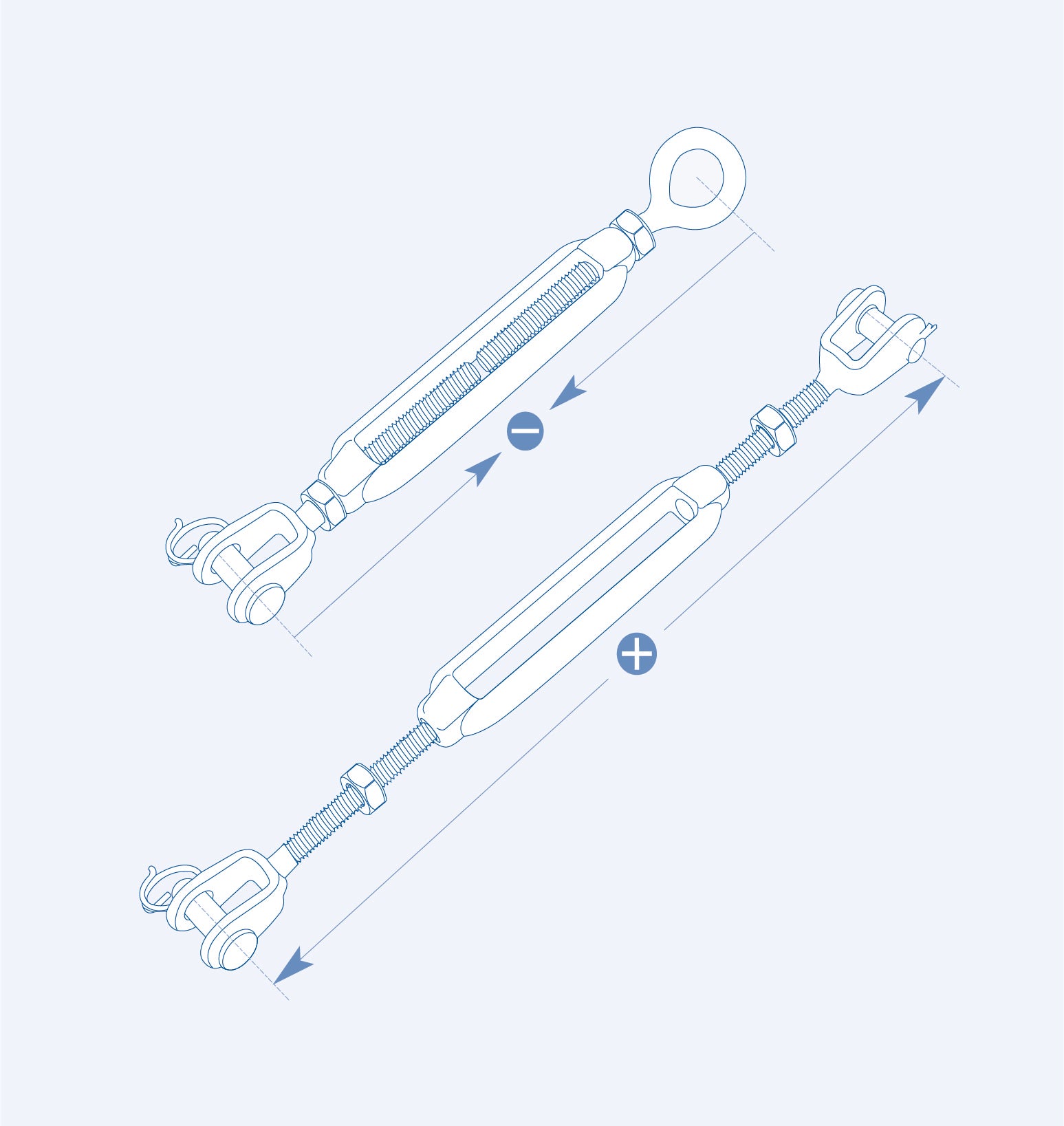

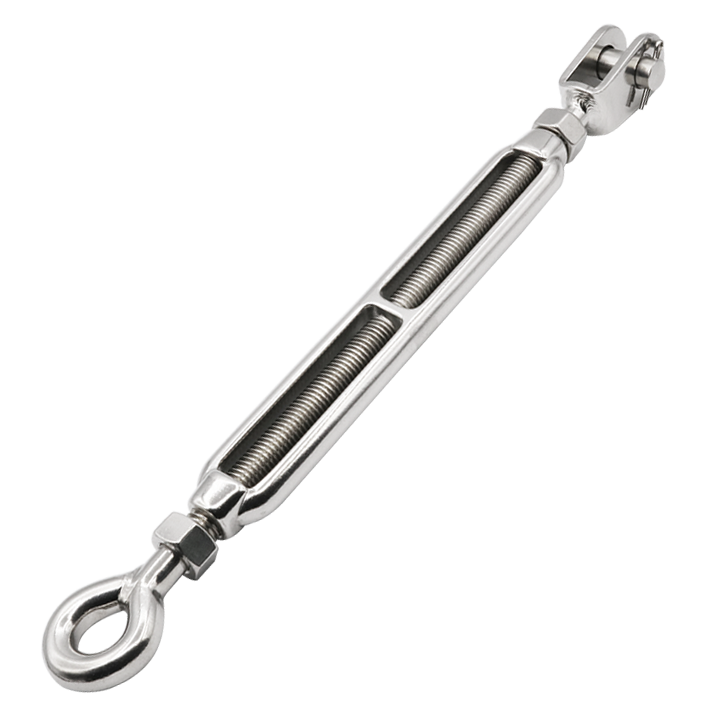

Frame turnbuckle, jaw and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Accessory | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63116205 | 5 | 120 | 70 | M5 | Ring | 0.06 | 680 |
| 63116206 | 6 | 145 | 90 | M6 | Ring | 0.09 | 1,500 |
| 63116208 | 8 | 190 | 120 | M8 | Ring | 0.19 | 2,300 |
| 63116210 | 10 | 235 | 150 | M10 | Ring | 0.33 | 3,100 |
| 63116212 | 12 | 310 | 200 | M12 | Ring | 0.62 | 4,400 |
| 63116216 | 16 | 360 | 250 | M16 | Cotter pin | 1.26 | 8,000 |
| 63116220 | 20 | 473 | 300 | M20 | Cotter pin | 2.13 | 11,000 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Accessory | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63116236 | 3/16"UNC | 4.72 | 2.76 | 3/16" | Ring | 0.13 | 1,496 |
| 63116214 | 1/4"UNC | 5.71 | 3.54 | 1/4" | Ring | 0.20 | 3,300 |
| 63116257 | 5/16"UNC | 7.48 | 4.72 | 5/16" | Ring | 0.42 | 5,060 |
| 63116238 | 3/8"UNC | 9.25 | 5.91 | 3/8" | Ring | 0.73 | 6,820 |
| 63116213 | 1/2"UNC | 12.2 | 7.87 | 1/2" | Ring | 1.36 | 9,680 |
| 63116258 | 5/8"UNC | 14.17 | 9.84 | 5/8" | Cotter pin | 2.77 | 17,600 |
| 63116234 | 3/4"UNC | 18.62 | 11.81 | 3/4" | Cotter pin | 4.69 | 24,200 |
