Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S311HH - Frame - Cast
Hook - Forged
Surface Treatment: “E.P.” (Electro polished)

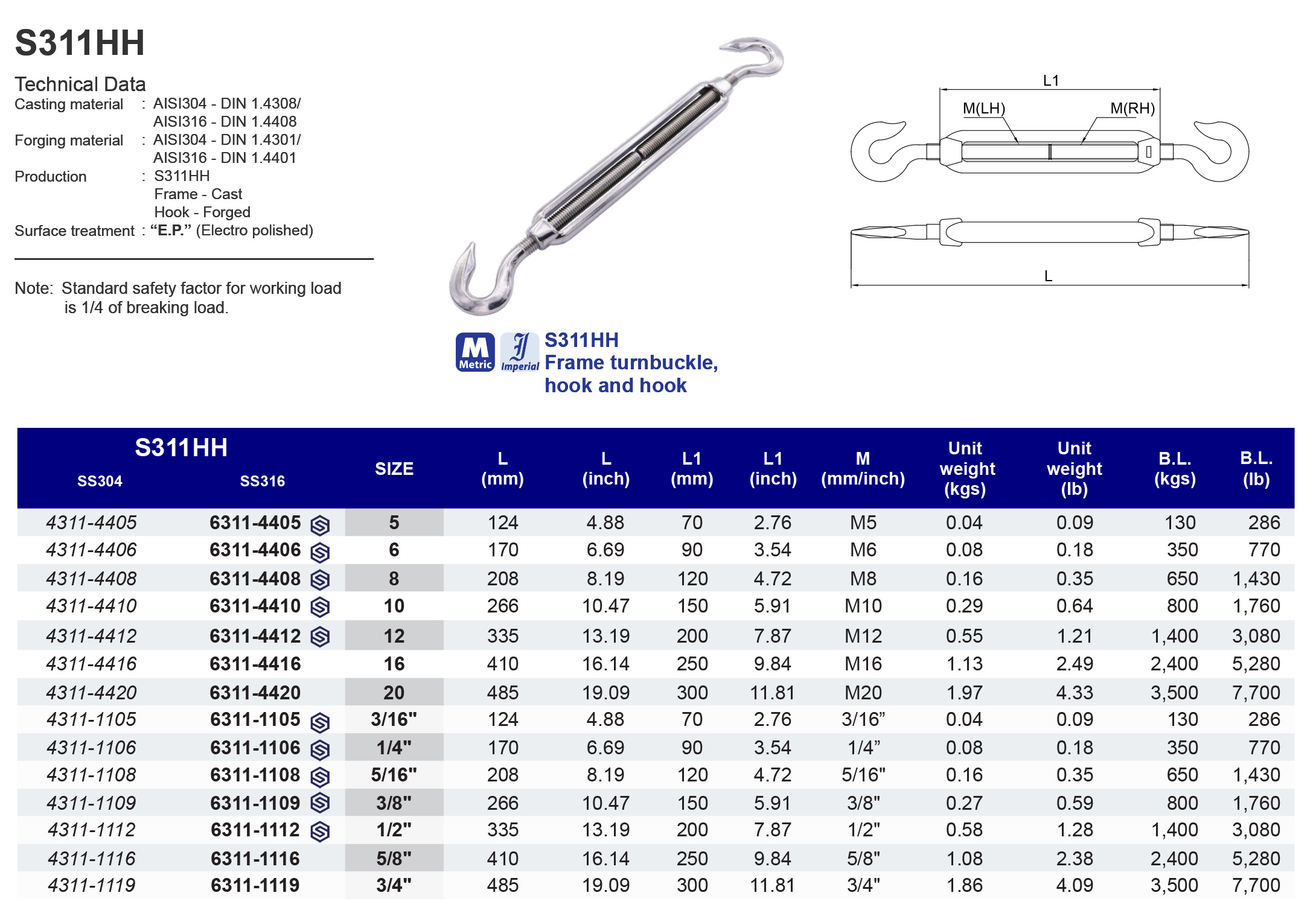

Model
S311HH

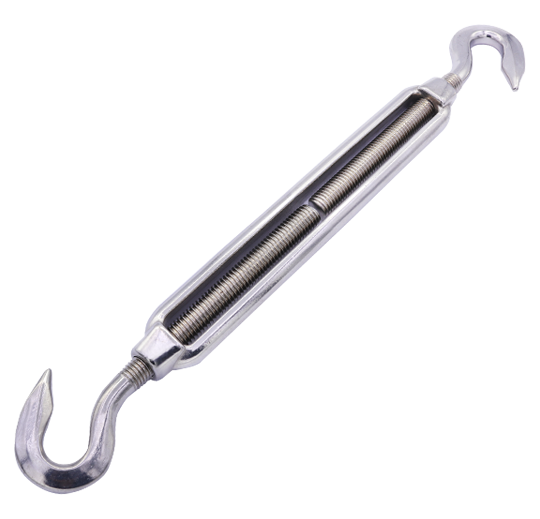

Frame turnbuckle hook and hook
304 ss
| SS304 | Size | L (mm) | L1 (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 43114405 | 5 | 124 | 70 | M5 | 0.04 | 130 |
| 43114406 | 6 | 170 | 90 | M6 | 0.08 | 350 |
| 43114408 | 8 | 208 | 120 | M8 | 0.16 | 650 |
| 43114410 | 10 | 266 | 150 | M10 | 0.29 | 800 |
| 43114412 | 12 | 335 | 200 | M12 | 0.55 | 1,400 |
| 43114416 | 16 | 415 | 250 | M16 | 1.13 | 2,400 |
| 43114420 | 20 | 485 | 300 | M20 | 1.97 | 3,500 |
| SS304 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 43111105 | 3/16"UNC | 4.88 | 2.76 | 3/16" | 0.09 | 286 |
| 43111106 | 1/4"UNC | 6.69 | 3.54 | 1/4" | 0.18 | 770 |
| 43111108 | 5/16"UNC | 8.19 | 4.72 | 5/16" | 0.35 | 1,430 |
| 43111109 | 3/8"UNC | 10.47 | 5.91 | 3/8" | 0.59 | 1,760 |
| 43111112 | 1/2"UNC | 13.19 | 7.87 | 1/2" | 1.28 | 3,080 |
| 43111116 | 5/8"UNC | 16.34 | 9.84 | 5/8" | 2.40 | 5,280 |
| 43111119 | 3/4"UNC | 19.09 | 11.81 | 3/4" | 4.09 | 7,700 |
