Description

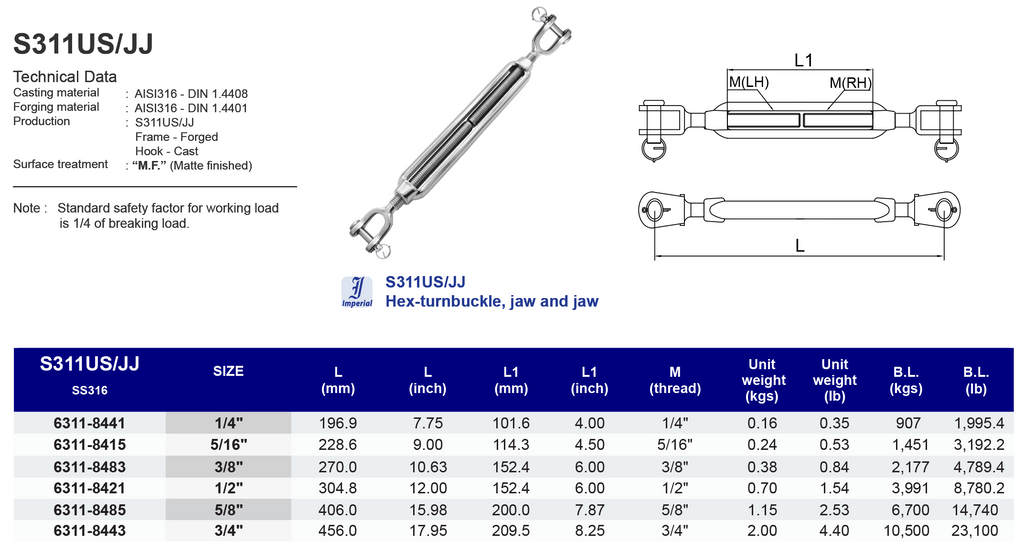

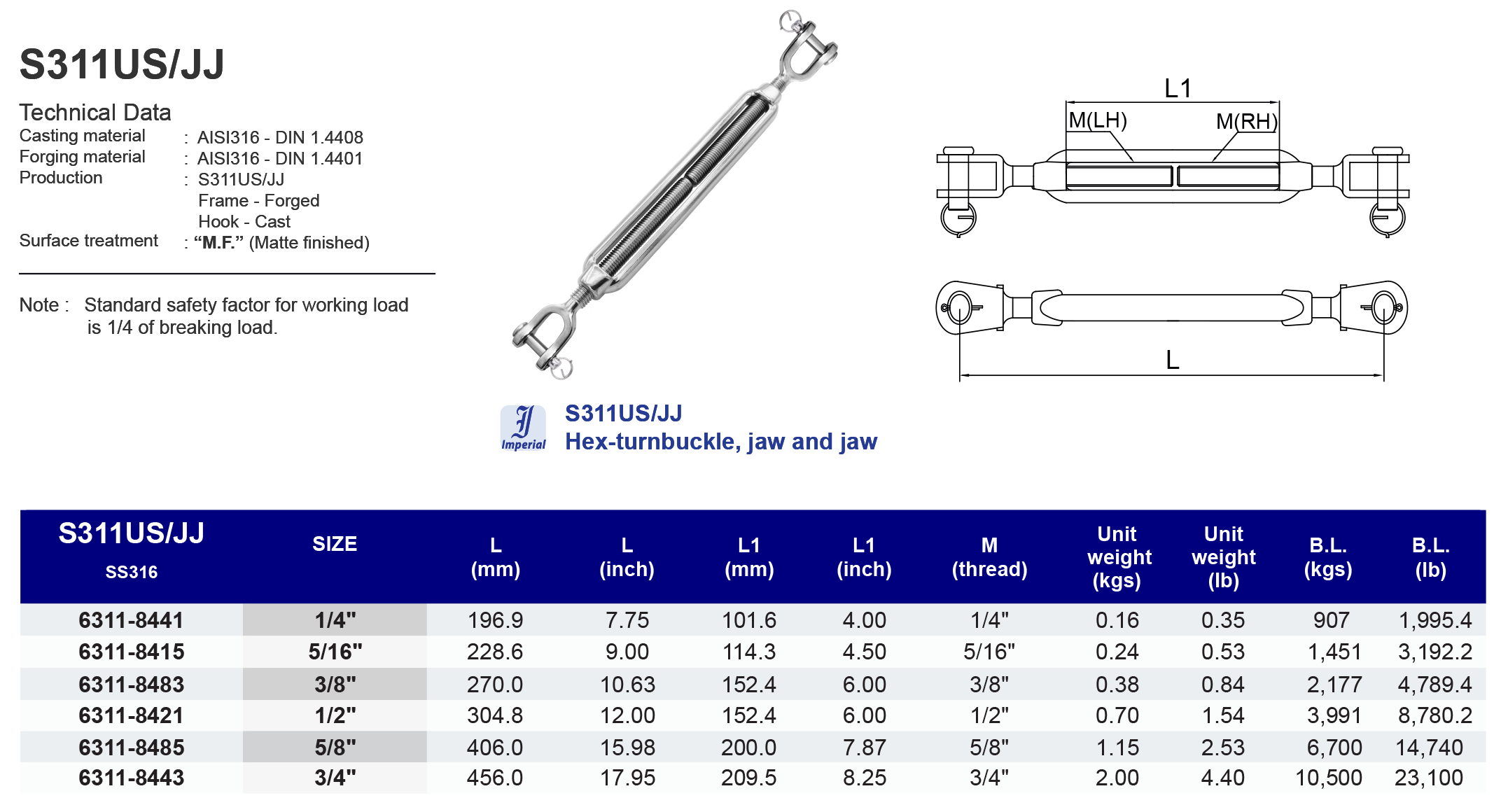

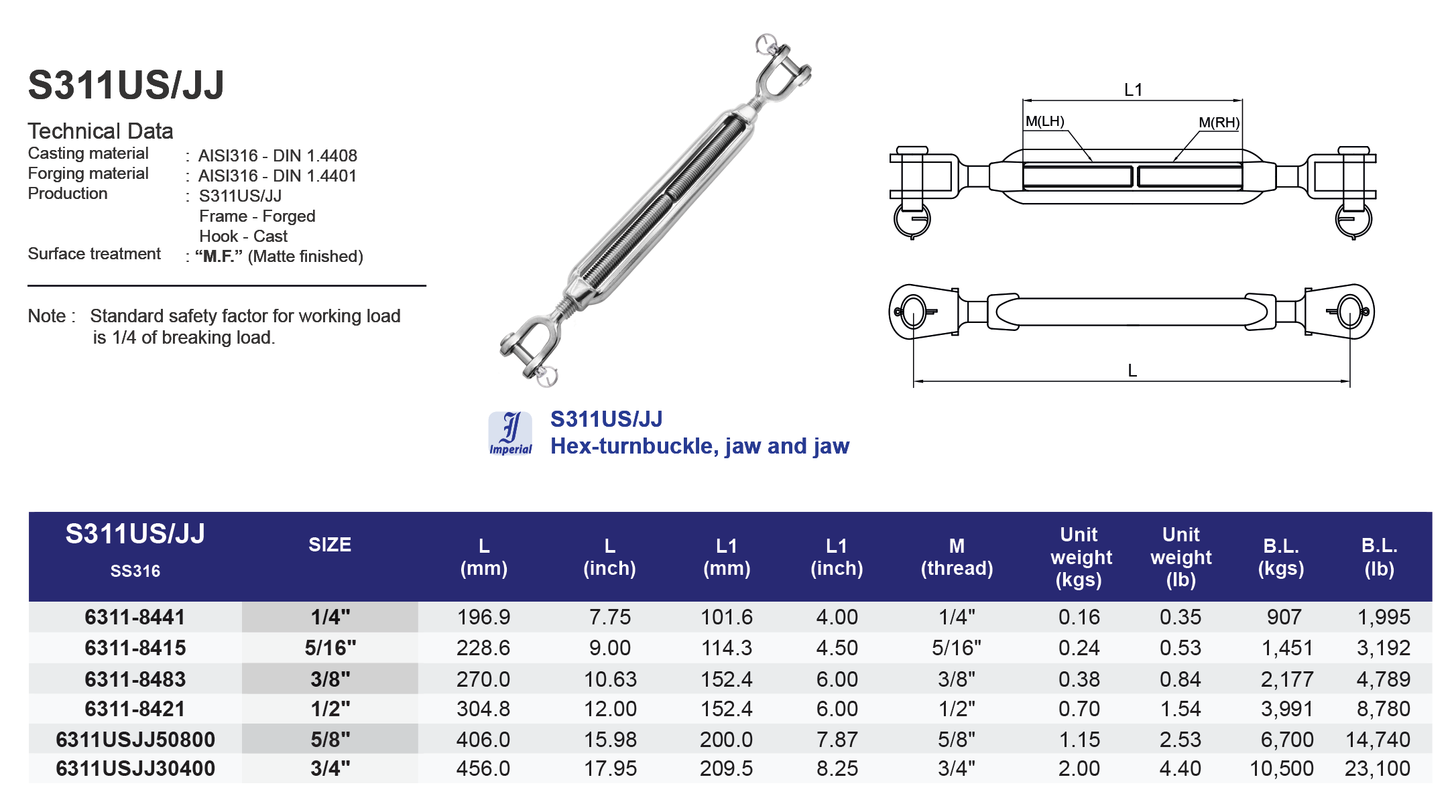

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: S311US / JJ - Frame - Forged
Hook - Cast
Surface Treatment: “M.F.” (Matte finished)
Model
S311US/JJ

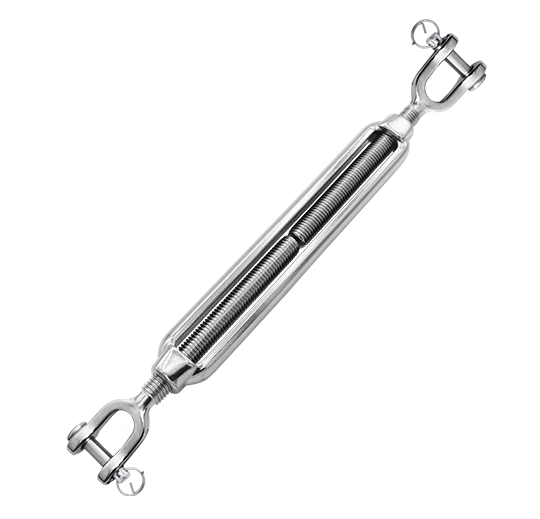

Hex turnbuckle, jaw and jaw
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (thread) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 6311-8441 | 1/4" | 196.9 | 101.6 | 1/4" | 0.16 | 907 |
| 6311-8415 | 5/16" | 228.6 | 114.3 | 5/16" | 0.24 | 1,451 |
| 6311-8483 | 3/8" | 270.0 | 152.4 | 3/8" | 0.38 | 2,177 |
| 6311-8421 | 1/2" | 304.8 | 152.4 | 1/2" | 0.70 | 3,991 |
| 6311USJJ50800 | 5/8" | 406.0 | 200.0 | 5/8" | 1.15 | 6,700 |
| 6311USJJ30400 | 3/4" | 456.0 | 209.5 | 3/4" | 2.00 | 10,500 |
| SS316 | Size | L (inch) | L1 (inch) | M (thread) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 6311-8441 | 1/4" | 7.75 | 4.00 | 1/4" | 0.35 | 1,995 |
| 6311-8415 | 5/16" | 9.00 | 4.50 | 5/16" | 0.53 | 3,192 |
| 6311-8483 | 3/8" | 10.63 | 6.00 | 3/8" | 0.84 | 4,789 |
| 6311-8421 | 1/2" | 12.00 | 6.00 | 1/2" | 1.54 | 8,780 |
| 6311USJJ50800 | 5/8" | 15.98 | 7.87 | 5/8" | 2.53 | 14,740 |
| 6311USJJ30400 | 3/4" | 17.95 | 8.25 | 3/4" | 4.40 | 23,100 |
