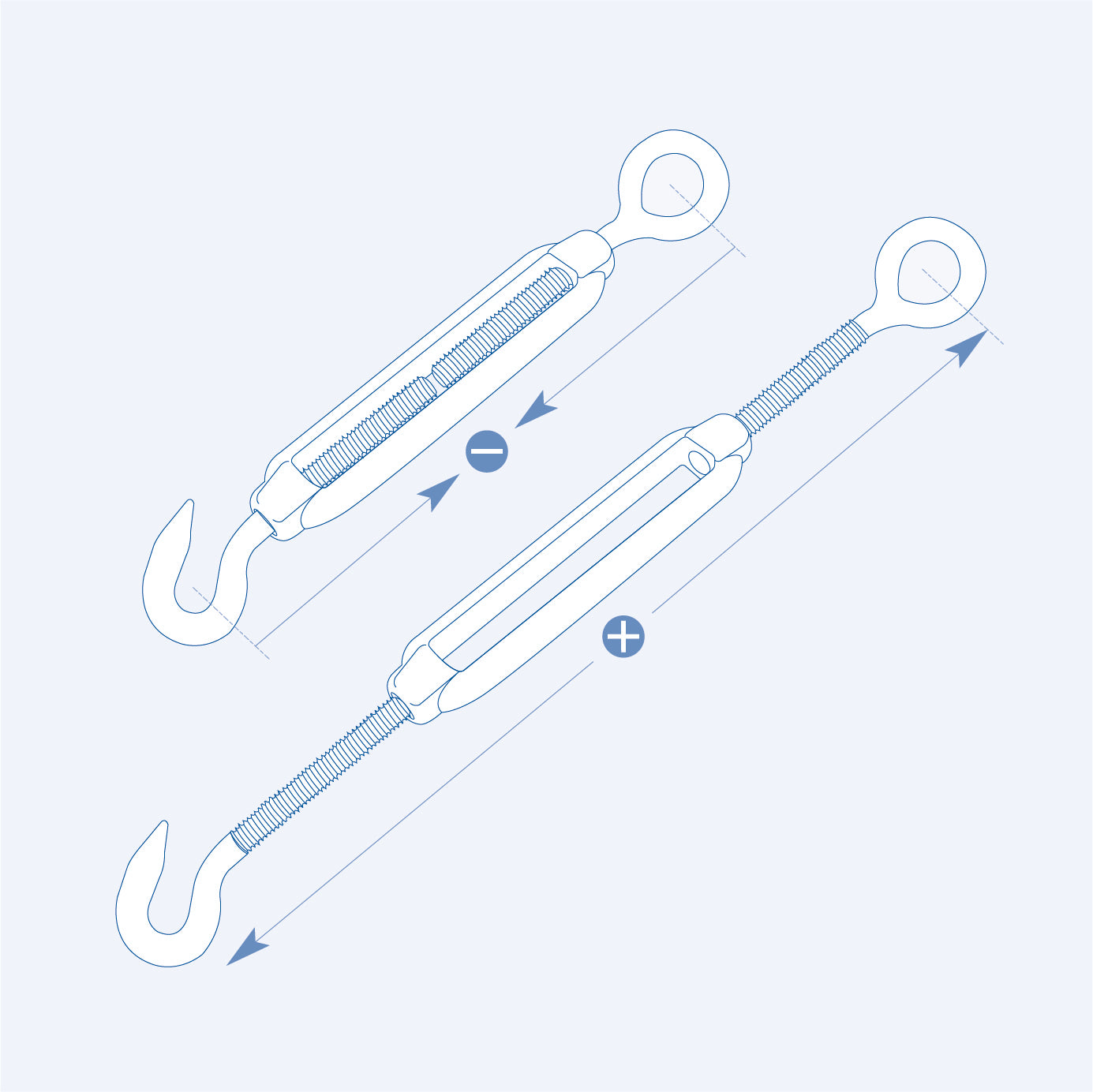

Description

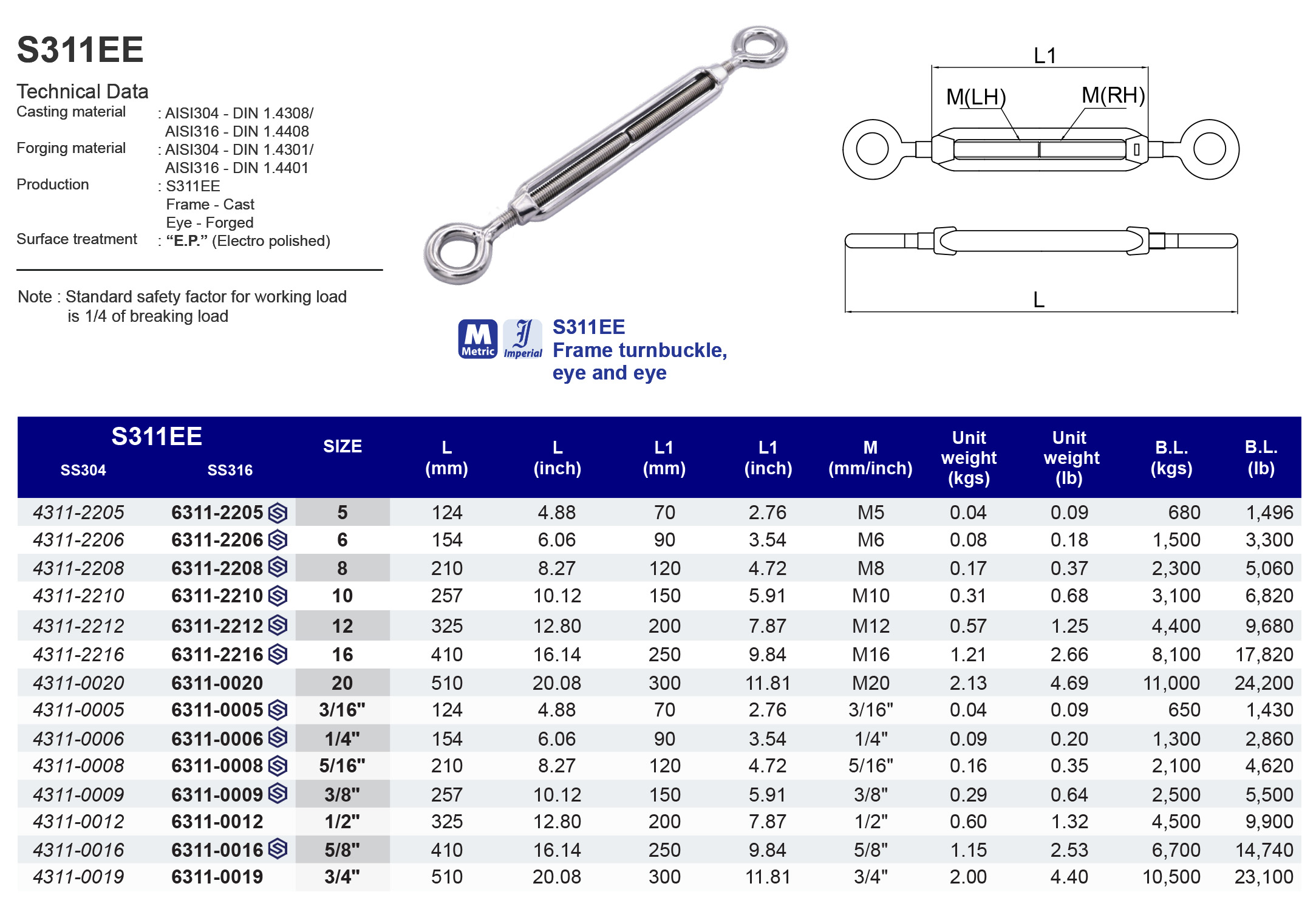

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S311EE - Frame - Cast
Eye - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S311EE
Frame turnbuckle eye and eye
316 ss
| SS316 | Size | L (mm) | L1 (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 63112205 | 5 | 124 | 70 | M5 | 0.04 | 680 |
| 63112206 | 6 | 154 | 90 | M6 | 0.08 | 1,500 |
| 63112208 | 8 | 210 | 120 | M8 | 0.17 | 2,300 |
| 63112210 | 10 | 257 | 150 | M10 | 0.31 | 3,100 |
| 63112212 | 12 | 325 | 200 | M12 | 0.57 | 4,400 |
| 63112216 | 16 | 410 | 250 | M16 | 1.21 | 8,100 |
| 63110020 | 20 | 510 | 300 | M20 | 2.13 | 11,000 |
| SS316 | Size | L (inch) | L1 (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 63110005 | 3/16"UNC | 4.88 | 2.76 | 3/16" | 0.09 | 1,430 |
| 63110006 | 1/4"UNC | 6.06 | 3.54 | 1/4" | 0.20 | 2,860 |
| 63110008 | 5/16"UNC | 8.27 | 4.72 | 5/16" | 0.35 | 4,620 |
| 63110009 | 3/8"UNC | 10.12 | 5.91 | 3/8" | 0.64 | 5,500 |
| 63110012 | 1/2"UNC | 12.80 | 7.87 | 1/2" | 1.32 | 9,900 |
| 63110016 | 5/8"UNC | 16.14 | 9.84 | 5/8" | 2.53 | 14,740 |
| 63110019 | 3/4"UNC | 20.08 | 11.81 | 3/4" | 4.40 | 23,100 |
