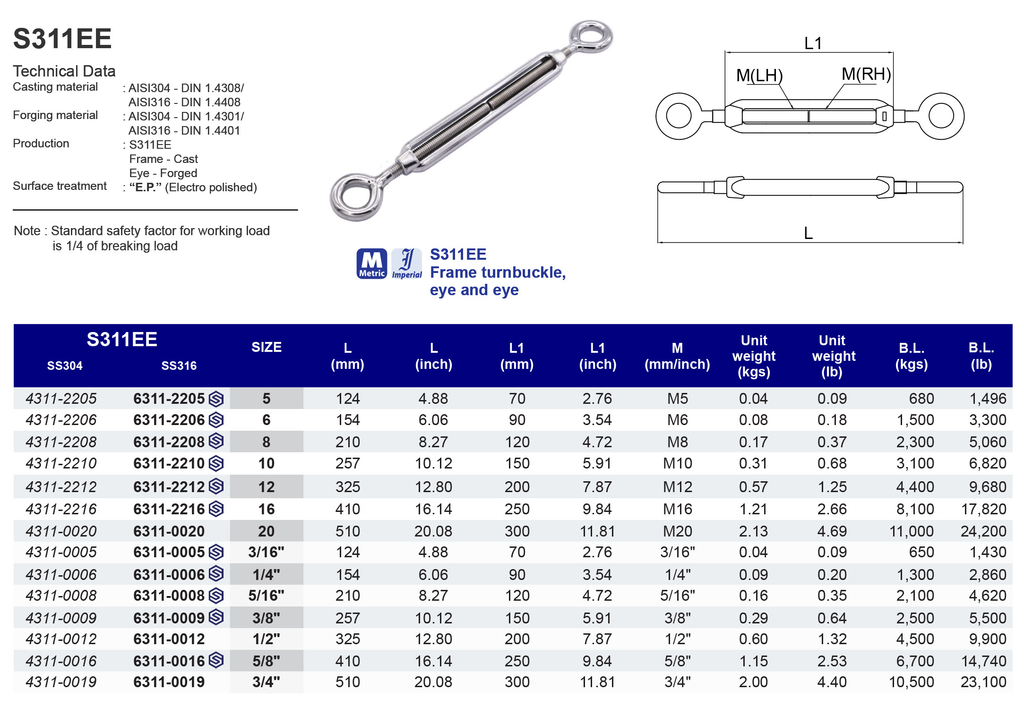

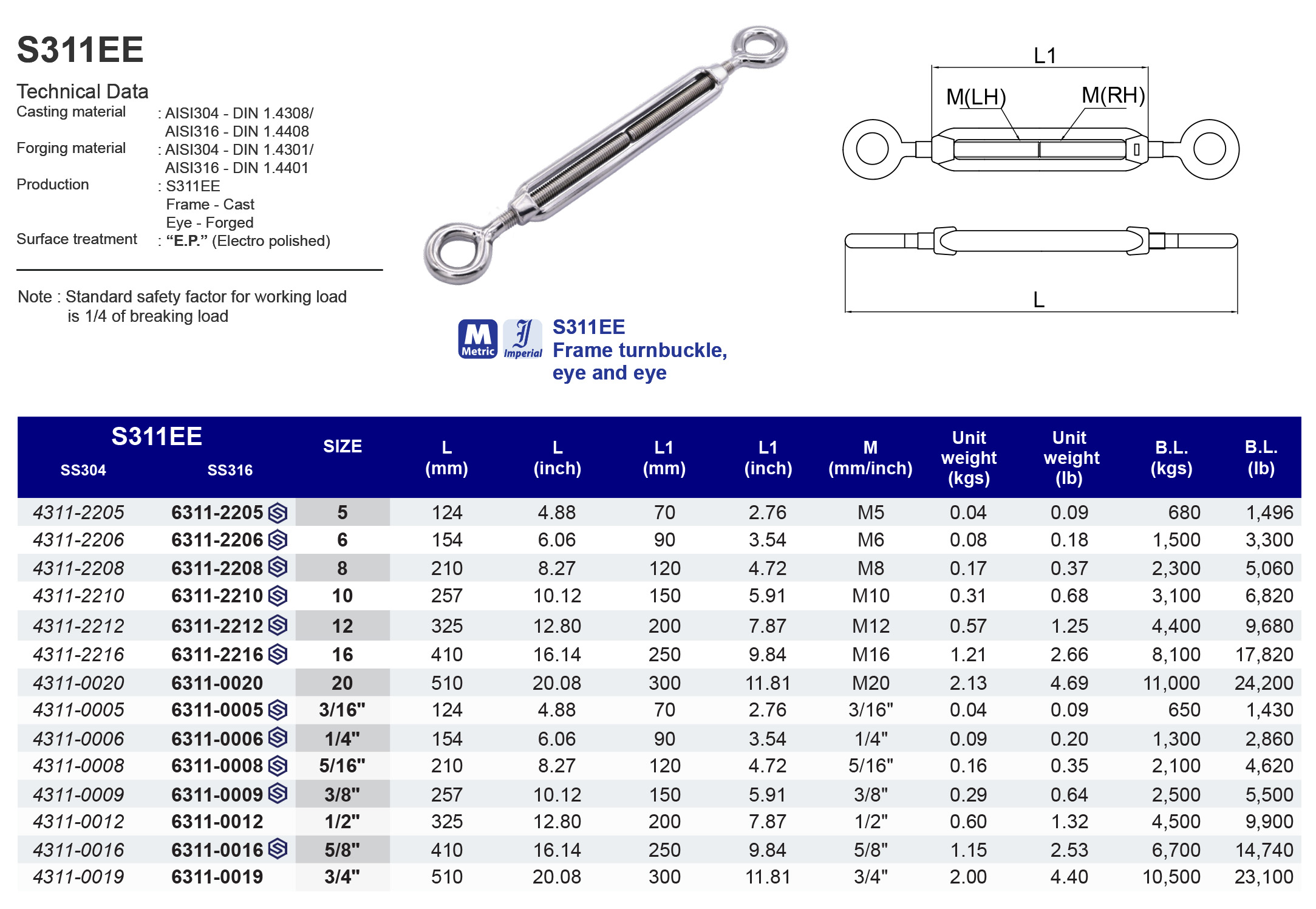

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401

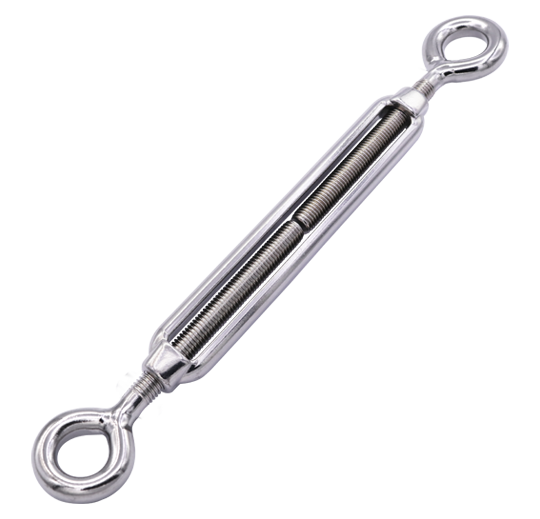

Production: S311EE - Frame - Cast
Eye - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
DATA SHEET DOWNLOAD
