Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S307 - Thread - Forged
Bolt - Cast
Surface Treatment: “E.P.” (Electro polished)

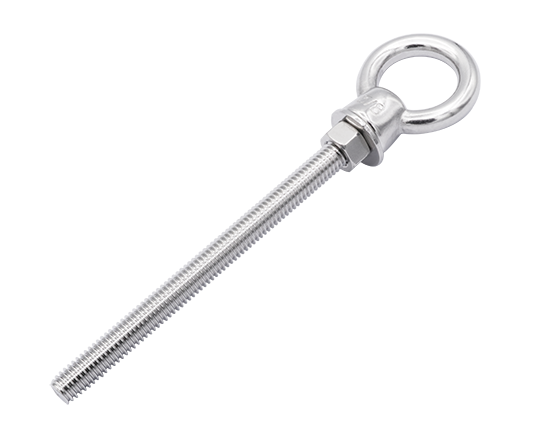

Model
S307
Lifting Eye Bolt
316 ss
SS304 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|
43070640 | 6*40 | 16 | 5.0 | 40 | M6 | 0.03 | 1,100 |
43070660 | 6*60 | 16 | 5.0 | 60 | M6 | 0.03 | 1,100 |
43070680 | 6*80 | 16 | 5.0 | 80 | M6 | 0.03 | 1,100 |
43070860 | 8*60 | 20 | 6.2 | 60 | M8 | 0.06 | 1,300 |
43070880 | 8*80 | 20 | 6.2 | 80 | M8 | 0.07 | 1,300 |
43070810 | 8*100 | 20 | 6.2 | 100 | M8 | 0.07 | 1,300 |
43071005 | 10*50 | 25 | 8.0 | 50 | M10 | 0.11 | 2,600 |
43071080 | 10*80 | 25 | 8.0 | 80 | M10 | 0.12 | 2,600 |
43071010 | 10*100 | 25 | 8.0 | 100 | M10 | 0.13 | 2,600 |
43071012 | 10*120 | 25 | 8.0 | 120 | M10 | 0.13 | 2,600 |
43071210 | 12*100 | 30 | 10.0 | 100 | M12 | 0.22 | 3,500 |
43071212 | 12*120 | 30 | 10.0 | 120 | M12 | 0.23 | 3,500 |
43072100 | 12*150 | 30 | 10.0 | 150 | M12 | 0.26 | 3,500 |
43071220 | 12*200 | 30 | 10.0 | 200 | M12 | 0.29 | 3,500 |
43071675 | 16*75 | 35 | 12.5 | 75 | M16 | 0.38 | 8,000 |
43071610 | 16*100 | 35 | 12.5 | 100 | M16 | 0.41 | 8,000 |
43071615 | 16*150 | 35 | 12.5 | 150 | M16 | 0.48 | 8,000 |
SS304 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|
43074140 | 1/4" x 1-9/16" | 0.63 | 0.20 | 1.57 | 1/4" | 0.07 | 2,420 |
43074150 | 1/4" x 2" | 0.63 | 0.20 | 1.97 | 1/4" | 0.07 | 2,420 |
43074160 | 1/4" x 2-3/8" | 0.63 | 0.20 | 2.36 | 1/4" | 0.07 | 2,420 |
43074180 | 1/4" x 3-3/16" | 0.63 | 0.20 | 3.15 | 1/4" | 0.09 | 2,420 |
43074011 | 1/4" x 4" | 0.63 | 0.20 | 3.94 | 1/4" | 0.09 | 2,420 |
43075660 | 5/16" x 2-3/8" | 0.79 | 0.24 | 2.36 | 5/16" | 0.13 | 2,860 |
43075610 | 5/16" x 4" | 0.79 | 0.24 | 3.94 | 5/16" | 0.15 | 2,860 |
43078380 | 3/8" x 3-3/16" | 0.98 | 0.31 | 3.15 | 3/8" | 0.24 | 5,720 |
43078310 | 3/8" x 4" | 0.98 | 0.31 | 3.94 | 3/8" | 0.26 | 5,720 |
43078313 | 3/8" x 5" | 0.98 | 0.31 | 4.92 | 3/8" | 0.33 | 5,720 |
43072180 | 1/2" x 3-3/16" | 1.18 | 0.39 | 3.15 | 1/2" | 0.46 | 7,700 |
43072110 | 1/2" x 4" | 1.18 | 0.39 | 3.94 | 1/2" | 0.51 | 7,700 |
43072115 | 1/2" x 6" | 1.18 | 0.39 | 5.91 | 1/2" | 0.57 | 7,700 |
