Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : S3062/E1 - Swivel - Cast
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD
Model
S3062_E1

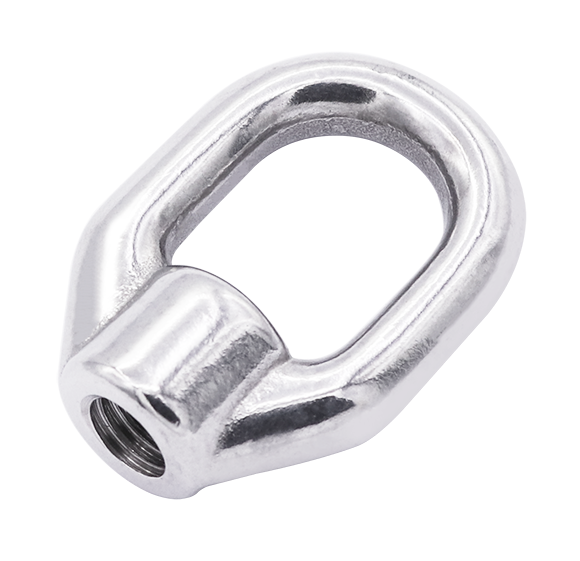

Swivel screw
316 ss

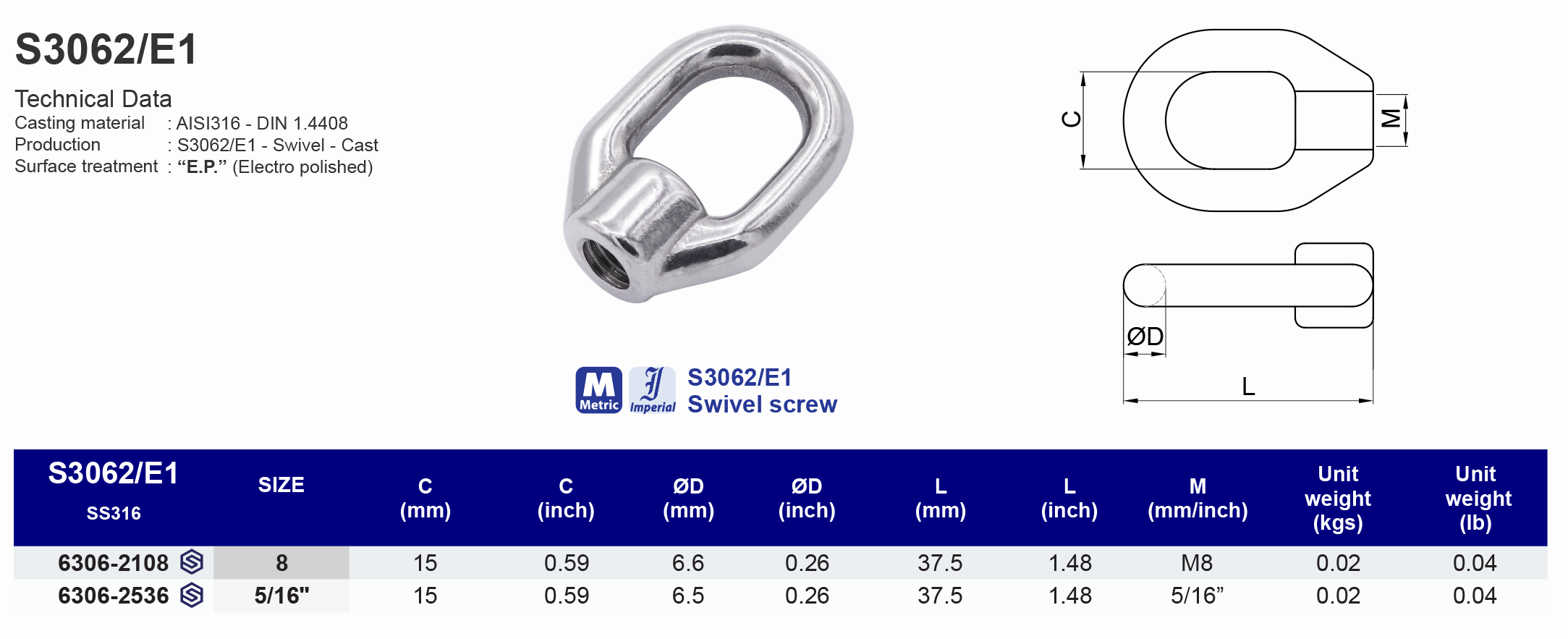

| SS316 | Size | C (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 63062108 | 8 | 15 | 6.6 | 37.5 | M8 | 0.02 |
| SS316 | Size | C (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 63062536 | 5/16" | 0.59 | 0.26 | 1.48 | 5/16" | 0.04 |
