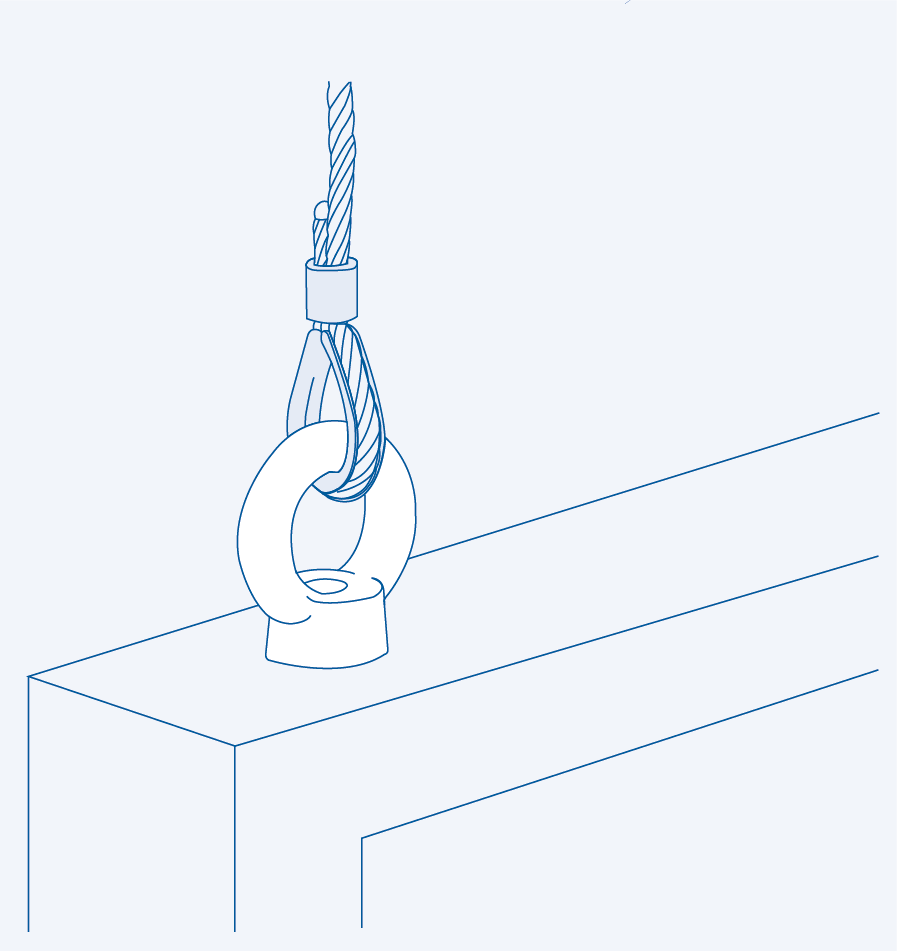

S3061 Lifting eye nut - SUS type - 304

SKU: 43061006

Size: M6
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Production: S3061 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished)                                                                        Note : Standard safety factor for working load
is 1/4 of breaking load

DATA SHEET DOWNLOAD

Model

S3061

Lifting eye nut - SUS type
304 ss

S3061drawing
S3061 image
SS304SizeØC (mm)ØD (mm)L (mm)M (mm)Unit weight (kgs)B.L. (kgs)
43061006616531M60.021,100
430610088206.239.3M80.031,800
430610101025848M100.062,600
4306101212301061M120.113,500
43061016163512.572M160.208,000
4306102020401686M200.3710,500
43061220224619107M220.6011,000
43061030306025135M301.0220,000
SS304SizeØC (inch)ØD (inch)L (inch)M (inch)Unit weight (lb)B.L. (lb)
430611041/4"UNC0.630.201.221/4"0.042,640
430615165/16"UNC0.790.241.555/16"0.072,860
430613083/8"UNC0.980.311.893/8"0.135,720
430611021/2"UNC1.180.392.401/2"0.247,700
430615085/8"UNC1.380.492.835/8"0.4217,600
430613043/4"UNC1.570.633.393/4"0.7523,100
430611011"UNC1.970.794.371"1.6131,790
