Description

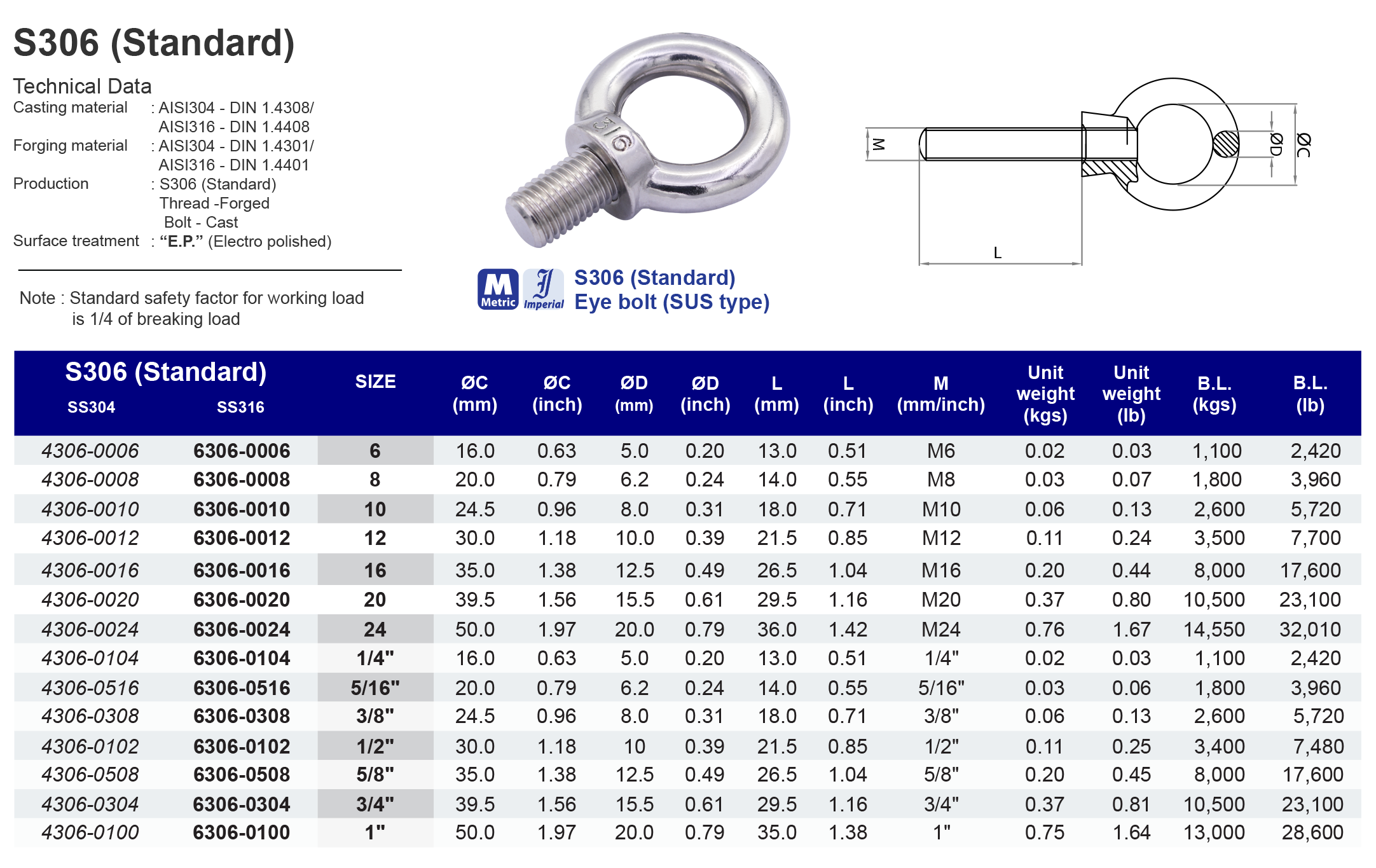

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S306 - (Standard) Thread - Forged
Bolt - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

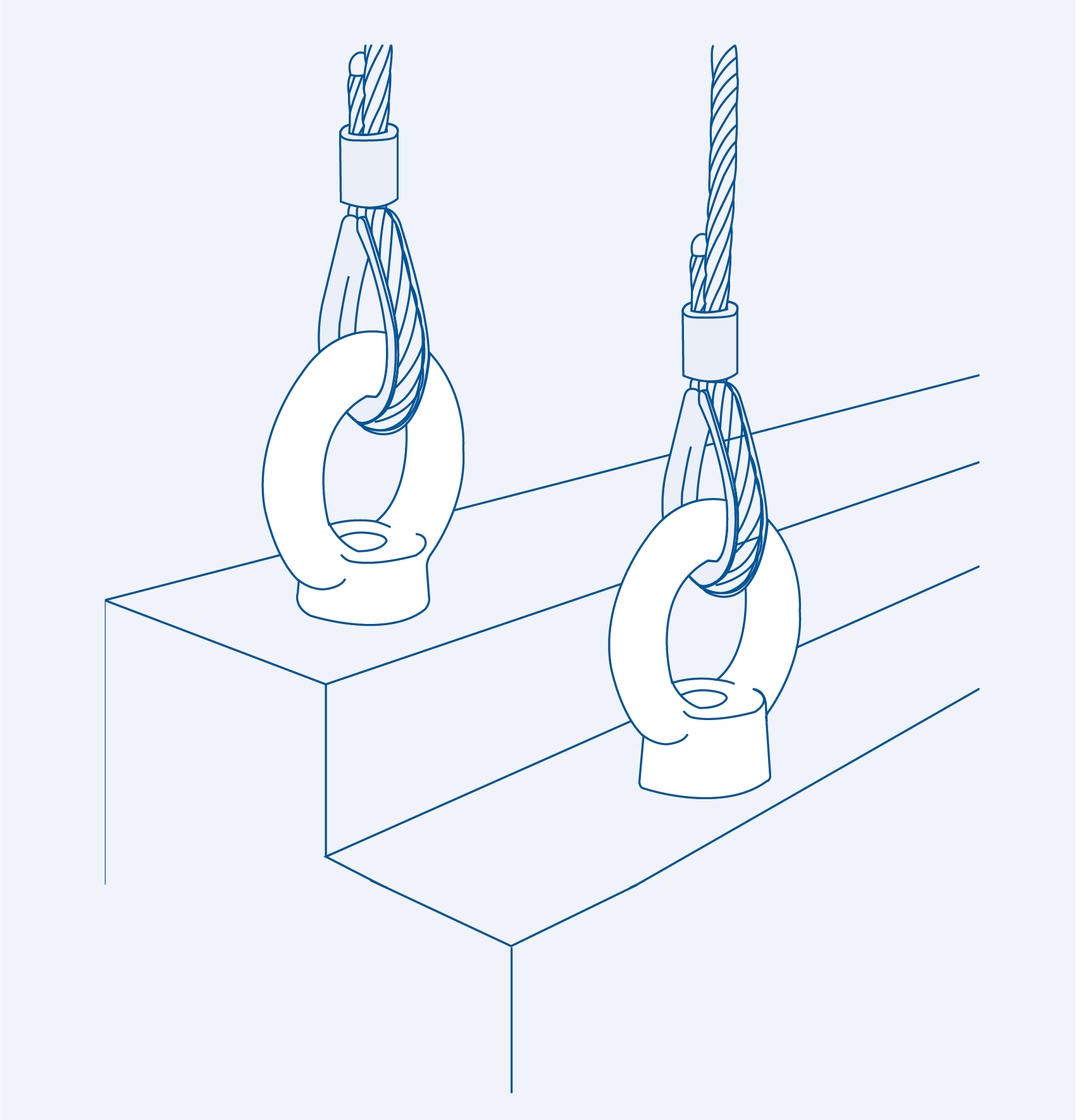

Model
S306_Standard
Eye bolt (SUS type)
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63060006 | 6 | 16.0 | 5.0 | 13.0 | M6 | 0.02 | 1,100 |
| 63060008 | 8 | 20.0 | 6.2 | 14.0 | M8 | 0.03 | 1,800 |
| 63060010 | 10 | 24.5 | 8.0 | 18.0 | M10 | 0.06 | 2,600 |
| 63060012 | 12 | 30.0 | 10.0 | 21.5 | M12 | 0.11 | 3,500 |
| 63060016 | 16 | 35.0 | 12.5 | 26.5 | M16 | 0.20 | 8,000 |
| 63060020 | 20 | 39.5 | 15.5 | 29.5 | M20 | 0.37 | 10,500 |
| 63060024 | 24 | 50.0 | 20.0 | 36.0 | M24 | 0.77 | 14,550 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63060104 | 1/4" | 0.63 | 0.20 | 0.51 | 1/4" | 0.03 | 2,420 |
| 63060516 | 5/16" | 0.79 | 0.24 | 0.55 | 5/16" | 0.06 | 3,960 |
| 63060308 | 3/8" | 0.96 | 0.31 | 0.71 | 3/8" | 0.13 | 5,720 |
| 63060102 | 1/2" | 1.18 | 0.39 | 0.85 | 1/2" | 0.25 | 7,480 |
| 63060508 | 5/8" | 1.38 | 0.49 | 1.04 | 5/8" | 0.45 | 17,600 |
| 63060304 | 3/4" | 1.56 | 0.61 | 1.16 | 3/4" | 0.81 | 23,100 |
| 63060100 | 1" | 1.97 | 0.79 | 1.38 | 1" | 1.64 | 28,600 |
