Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4301/
AISI316 - DIN 1.4401
Production: S306 (Special) - Thread Forged
Bolt - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

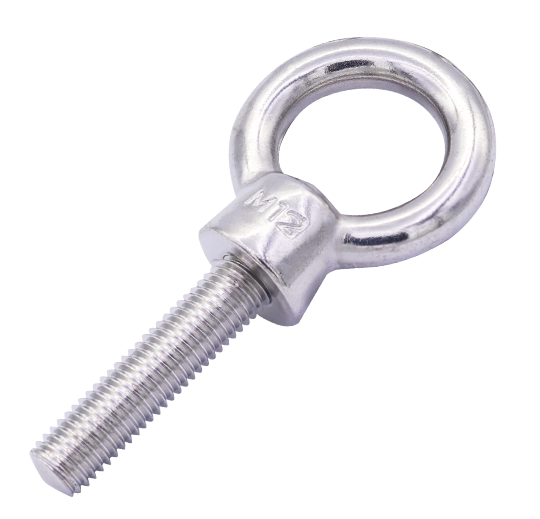

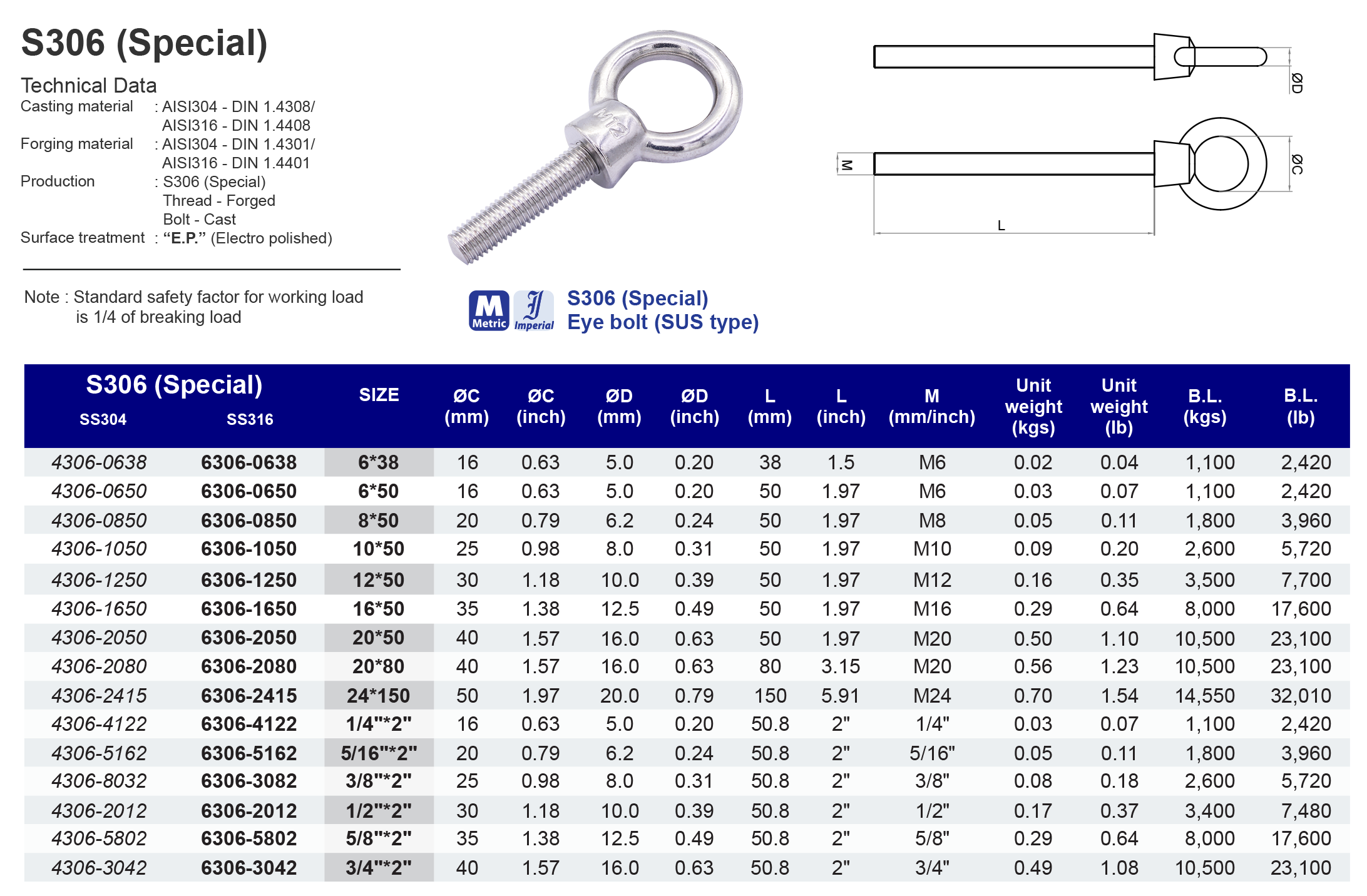

Model
S306 (Special)
Eye bolt (SUS type)
316 ss
| SS316 | Size | ØC (mm) | ØD (mm) | L (mm) | M (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 63060638 | 6*38 | 16 | 5 | 38 | M6 | 0.02 | 1,100 |
| 63060650 | 6*50 | 16 | 5 | 50 | M6 | 0.03 | 1,100 |
| 63060850 | 8*50 | 20 | 6.2 | 50 | M8 | 0.05 | 1,800 |
| 63061050 | 10*50 | 25 | 8 | 50 | M10 | 0.09 | 2,600 |
| 63061250 | 12*50 | 30 | 10 | 50 | M12 | 0.16 | 3,500 |
| 63061650 | 16*50 | 35 | 12.5 | 50 | M16 | 0.29 | 8,000 |
| 63062050 | 20*50 | 40 | 16 | 50 | M20 | 0.50 | 10,500 |
| 63062080 | 20*80 | 40 | 16 | 80 | M20 | 0.56 | 10,500 |
| 63062415 | 24*150 | 50 | 20 | 150 | M24 | 0.70 | 14,550 |
| SS316 | Size | ØC (inch) | ØD (inch) | L (inch) | M (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 63064122 | 1/4"UNC x 2" | 0.63 | 0.20 | 2" | 1/4" | 0.07 | 2,420 |
| 63065162 | 5/16"UNC x 2" | 0.79 | 0.24 | 2" | 5/16" | 0.11 | 3,960 |
| 63063082 | 3/8"UNC x 2" | 0.98 | 0.31 | 2" | 3/8" | 0.18 | 5,720 |
| 63062012 | 1/2"UNC x 2" | 1.18 | 0.39 | 2" | 1/2" | 0.37 | 7,480 |
| 63065802 | 5/8"UNC x 2" | 1.38 | 0.49 | 2" | 5/8" | 0.64 | 17,600 |
| 63063042 | 3/4"UNC x 2" | 1.57 | 0.63 | 2" | 3/4" | 1.08 | 23,100 |
