Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI 316 - DIN 1.4401
Production: S2831/SF7801 -Terminal - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

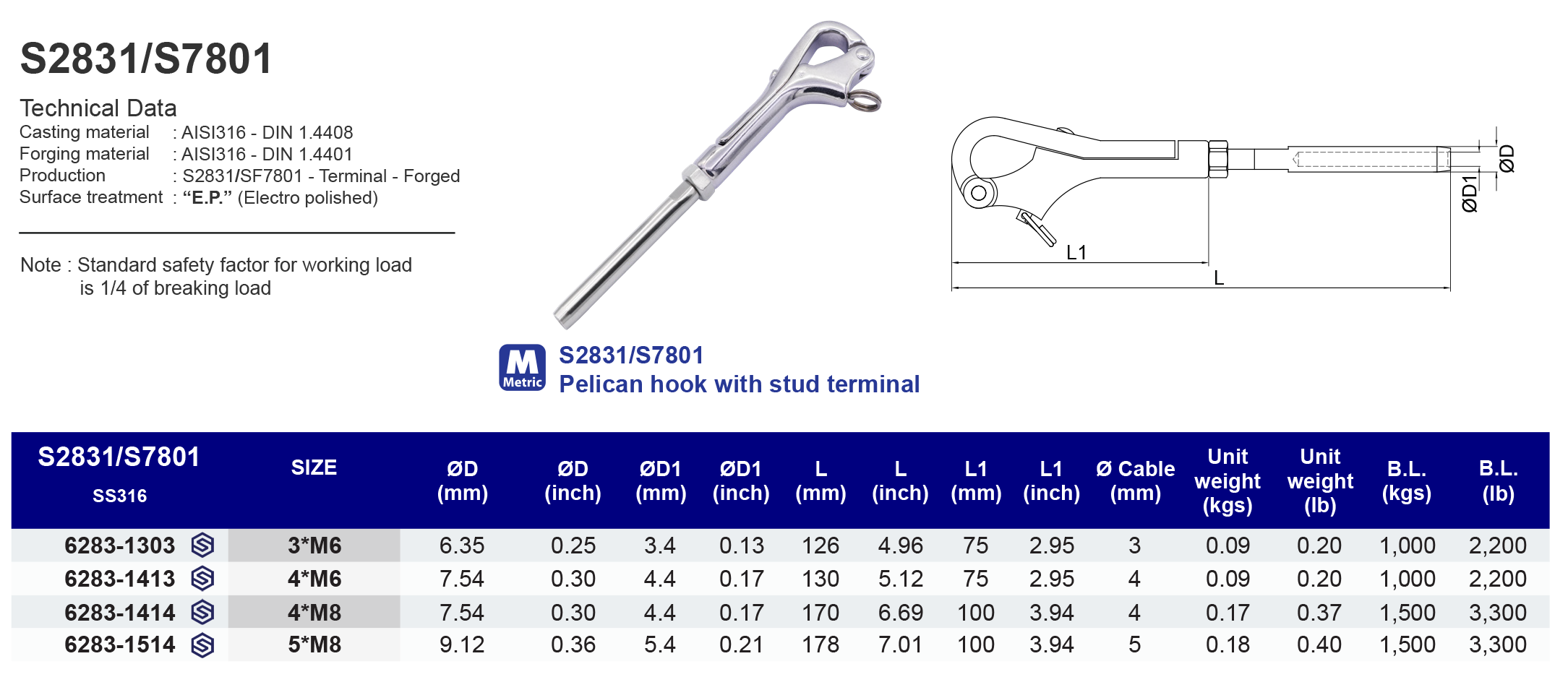

Model
S2831/S7801

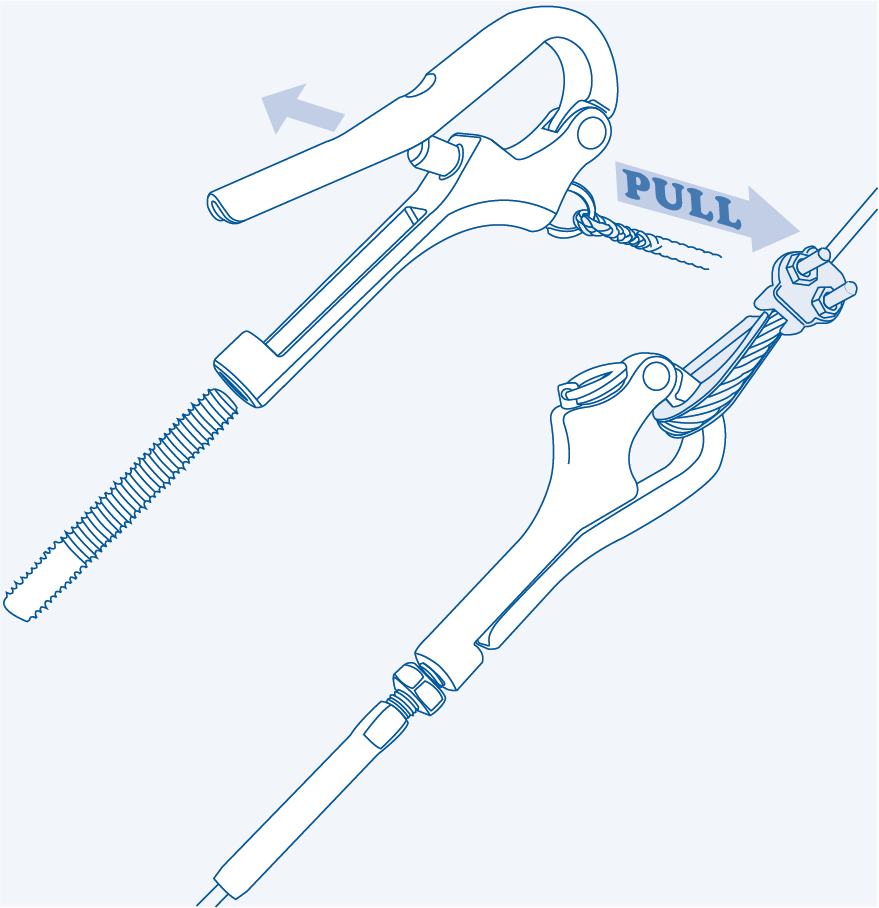

Pelican hook with stud terminal
316 ss
| SS316 | Size ØCable (mm) | ØA (inch) | B (inch) | ØD (inch) | L (inch) | L1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 67803903 | 3 | 0.20 | 0.28 | 0.22 | 2.11 | 1.26 | 0.04 | 2,750 |
| 67803904 | 4 | 0.24 | 0.28 | 0.22 | 2.44 | 1.38 | 0.06 | 2,750 |
| 67803905 | 5 | 0.31 | 0.31 | 0.25 | 2.68 | 1.50 | 0.12 | 5,060 |
| 67803906 | 6 | 0.35 | 0.43 | 0.30 | 3.03 | 1.77 | 0.13 | 7,084 |
| 67803908 | 8 | 0.47 | 0.47 | 0.36 | 3.43 | 2.01 | 0.53 | 13,200 |
| SS316 | Size | ØD (inch) | ØD1 (inch) | L (inch) | L1 (inch) | ØCable (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 62831303 | 3*M6 | 0.25 | 0.13 | 4.96 | 2.95 | 3 | 0.20 | 2,200 |
| 62831413 | 4*M6 | 0.30 | 0.17 | 5.12 | 2.95 | 4 | 0.20 | 2,200 |
| 62831414 | 4*M8 | 0.30 | 0.17 | 6.69 | 3.94 | 4 | 0.37 | 3,300 |
| 62831514 | 5*M8 | 0.36 | 0.21 | 7.01 | 3.94 | 5 | 0.40 | 3,300 |
