Description

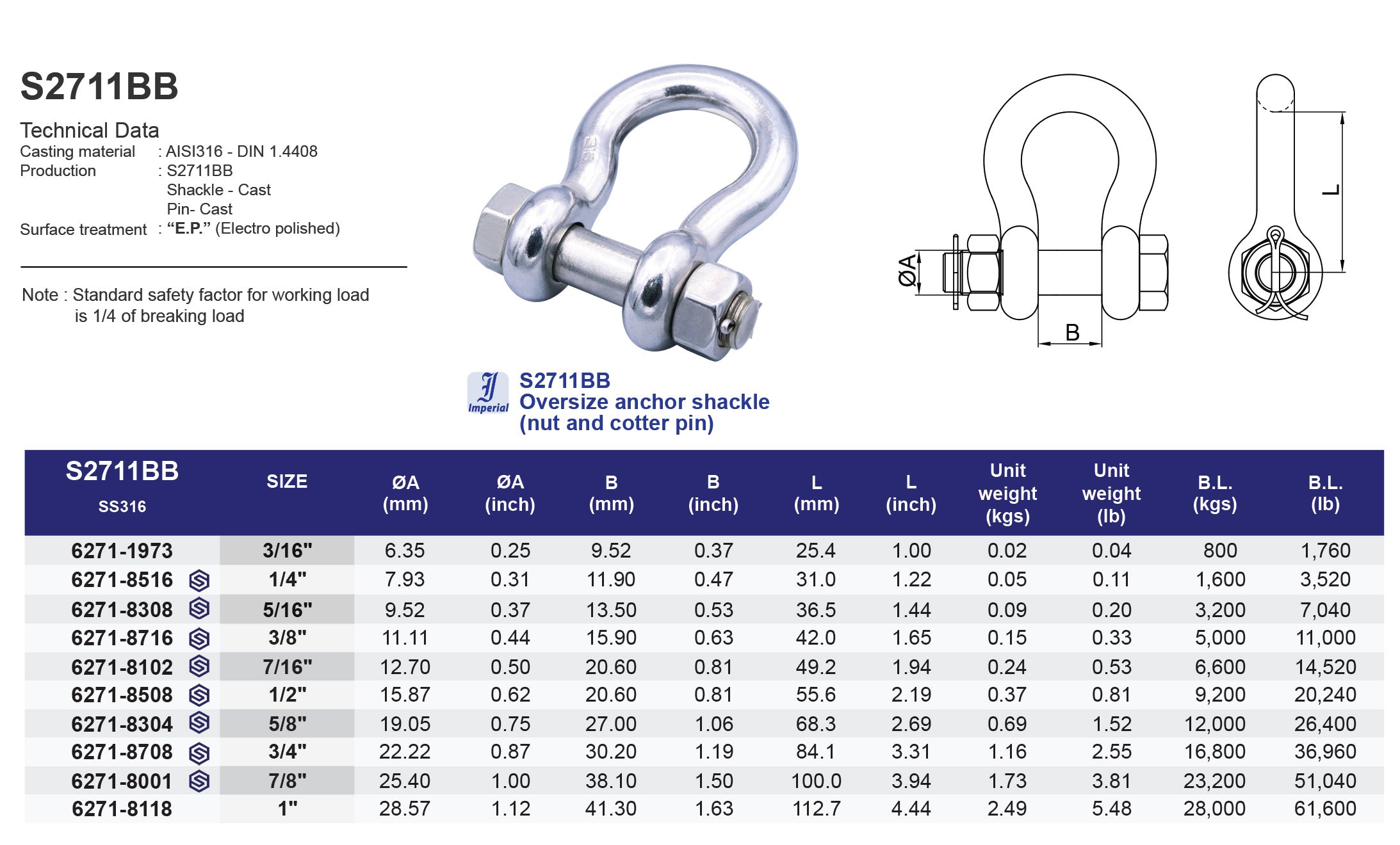

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S2711BB - Shackle / Pin - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
Model
S2711BB

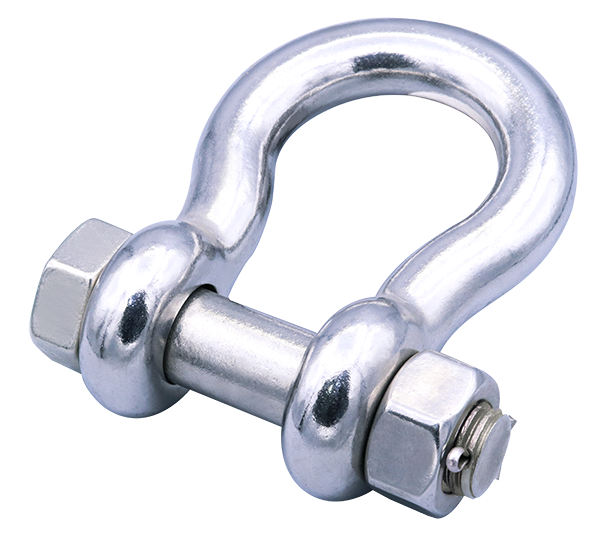

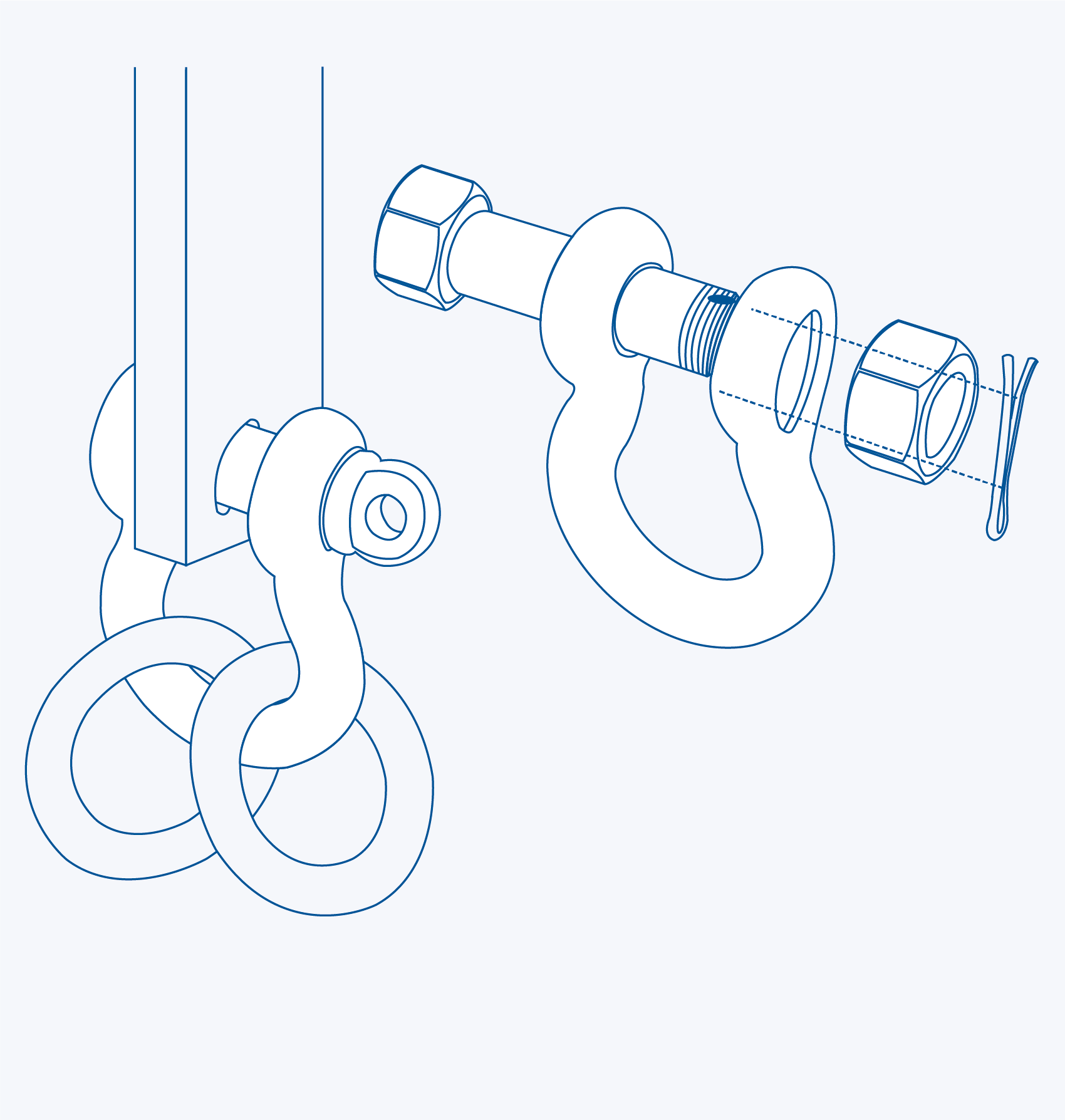

Oversize anchor shackle (nut and cotter pin)
316 ss
| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62711973 | 3/16" | 6.35 | 9.52 | 25.4 | 0.02 | 800 |
| 62718516 | 1/4" | 7.93 | 11.90 | 31.0 | 0.05 | 1,600 |
| 62718308 | 5/16" | 9.52 | 13.50 | 36.5 | 0.09 | 3,200 |
| 62718716 | 3/8" | 11.11 | 15.90 | 42.0 | 0.15 | 5,000 |
| 62718102 | 7/16" | 12.70 | 20.60 | 49.2 | 0.24 | 6,600 |
| 62718508 | 1/2" | 15.87 | 20.60 | 55.6 | 0.37 | 9,200 |
| 62718304 | 5/8" | 19.05 | 27.00 | 68.3 | 0.69 | 12,000 |
| 62718708 | 3/4" | 22.22 | 30.20 | 84.1 | 1.16 | 16,800 |
| 62718001 | 7/8" | 25.40 | 38.10 | 100.0 | 1.73 | 23,200 |
| 62718118 | 1" | 28.57 | 41.30 | 112.7 | 2.49 | 30,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62711973 | 3/16" | 0.25 | 0.37 | 1.00 | 0.04 | 1,760 |
| 62718516 | 1/4" | 0.31 | 0.47 | 1.22 | 0.11 | 3,520 |
| 62718308 | 5/16" | 0.37 | 0.53 | 1.44 | 0.20 | 7,040 |
| 62718716 | 3/8" | 0.44 | 0.63 | 1.65 | 0.33 | 11,000 |
| 62718102 | 7/16" | 0.50 | 0.81 | 1.94 | 0.53 | 14,520 |
| 62718508 | 1/2" | 0.62 | 0.81 | 2.19 | 0.81 | 20,240 |
| 62718304 | 5/8" | 0.75 | 1.06 | 2.69 | 1.52 | 26,400 |
| 62718708 | 3/4" | 0.87 | 1.19 | 3.31 | 2.55 | 36,960 |
| 62718001 | 7/8" | 1.00 | 1.50 | 3.94 | 3.81 | 51,040 |
| 62718118 | 1" | 1.12 | 1.63 | 4.44 | 5.48 | 66,000 |
