Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Production : Shackle - Cast , Pin - Cast
Surface Treatment : “E.P.” (Electro polished)
DATA SHEET DOWNLOAD

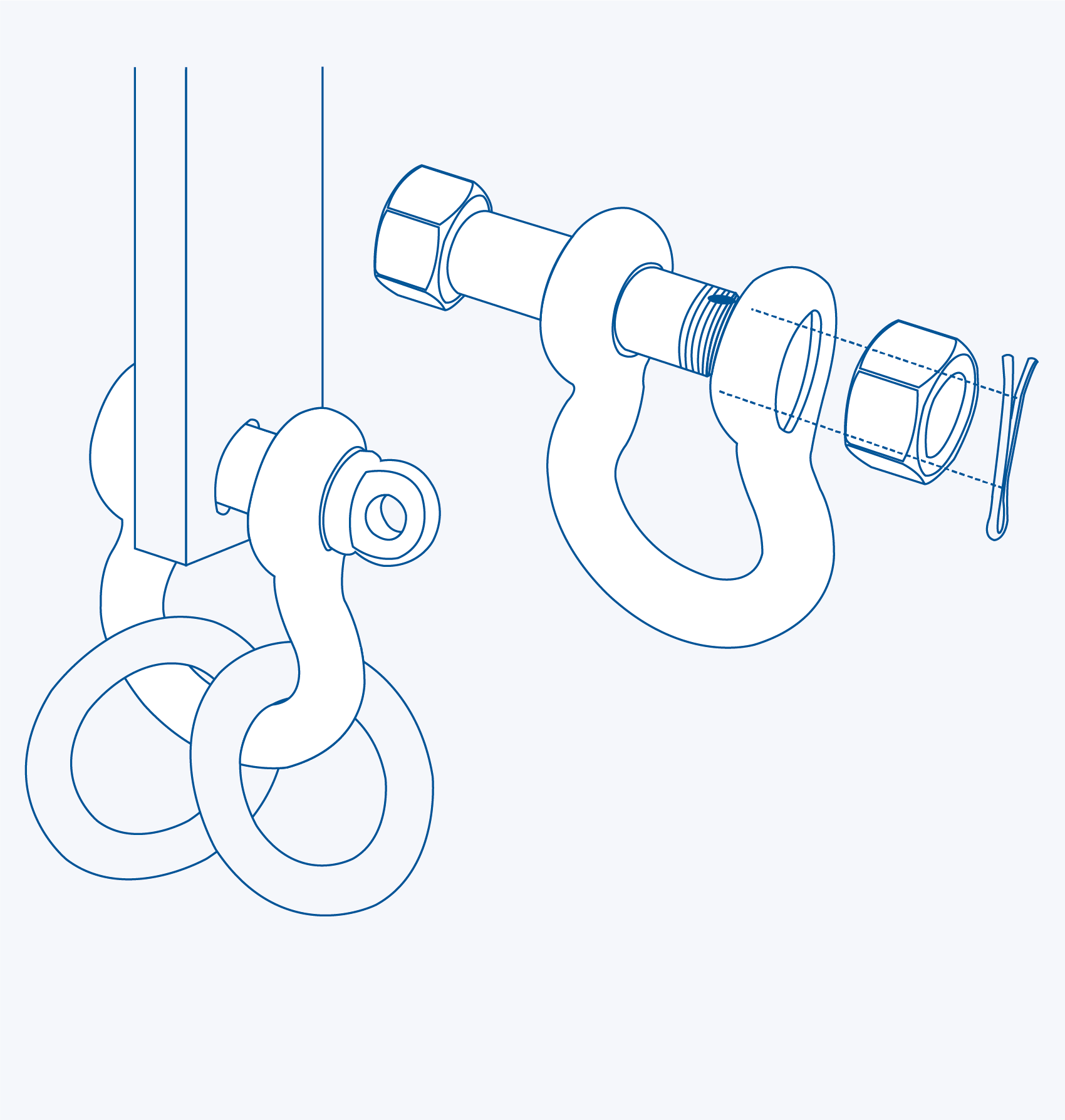

Model
S2711
Oversize anchor shackle
316 ss

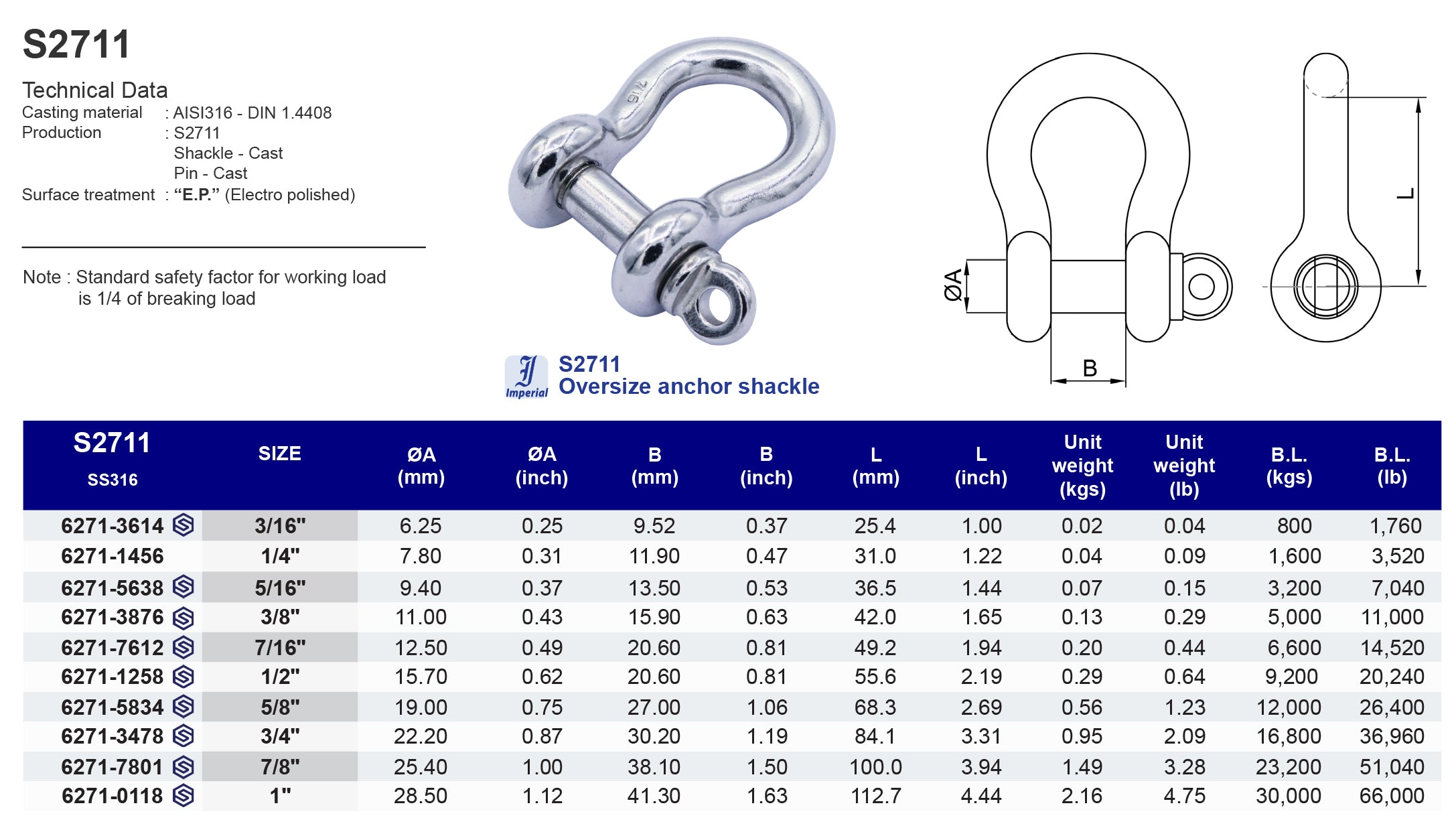

| SS316 | Size | ØA (mm) | ØB (mm) | L (mm) | Unit weight (kgs) | B.L.(kgs) |
|---|---|---|---|---|---|---|
| 62713614 | 3/16" | 6.25 | 9.52 | 25.4 | 0.02 | 800 |
| 62711456 | 1/4" | 7.80 | 11.9 | 31.0 | 0.04 | 1,600 |
| 62715638 | 5/16" | 9.40 | 13.5 | 36.5 | 0.07 | 3,200 |
| 62713876 | 3/8" | 11.00 | 15.9 | 42.0 | 0.13 | 5,000 |
| 62717612 | 7/16" | 12.50 | 20.6 | 49.2 | 0.20 | 6,600 |
| 62711258 | 1/2" | 15.70 | 20.6 | 55.6 | 0.29 | 9,200 |
| 62715834 | 5/8" | 19.00 | 27.0 | 68.3 | 0.56 | 12,000 |
| 62713478 | 3/4" | 22.20 | 30.2 | 84.1 | 0.95 | 16,800 |
| 62717801 | 7/8" | 25.40 | 38.1 | 100.0 | 1.49 | 23,200 |
| 62710118 | 1" | 28.50 | 41.3 | 112.7 | 2.16 | 30,000 |
| SS316 | Size | ØA (inch) | ØB (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62713614 | 3/16" | 0.25 | 0.37 | 1.00 | 0.04 | 1,760 |
| 62711456 | 1/4" | 0.31 | 0.47 | 1.22 | 0.09 | 3,520 |
| 62715638 | 5/16" | 0.37 | 0.53 | 1.44 | 0.15 | 7,040 |
| 62713876 | 3/8" | 0.43 | 0.63 | 1.65 | 0.29 | 11,000 |
| 62717612 | 7/16" | 0.49 | 0.81 | 1.94 | 0.44 | 14,520 |
| 62711258 | 1/2" | 0.62 | 0.81 | 2.19 | 0.64 | 20,240 |
| 62715834 | 5/8" | 0.75 | 1.06 | 2.69 | 1.23 | 26,400 |
| 62713478 | 3/4" | 0.87 | 1.19 | 3.31 | 2.09 | 36,960 |
| 62717801 | 7/8" | 1.00 | 1.50 | 3.94 | 3.28 | 51,040 |
| 62710118 | 1" | 1.12 | 1.63 | 4.44 | 4.75 | 66,000 |
