Description

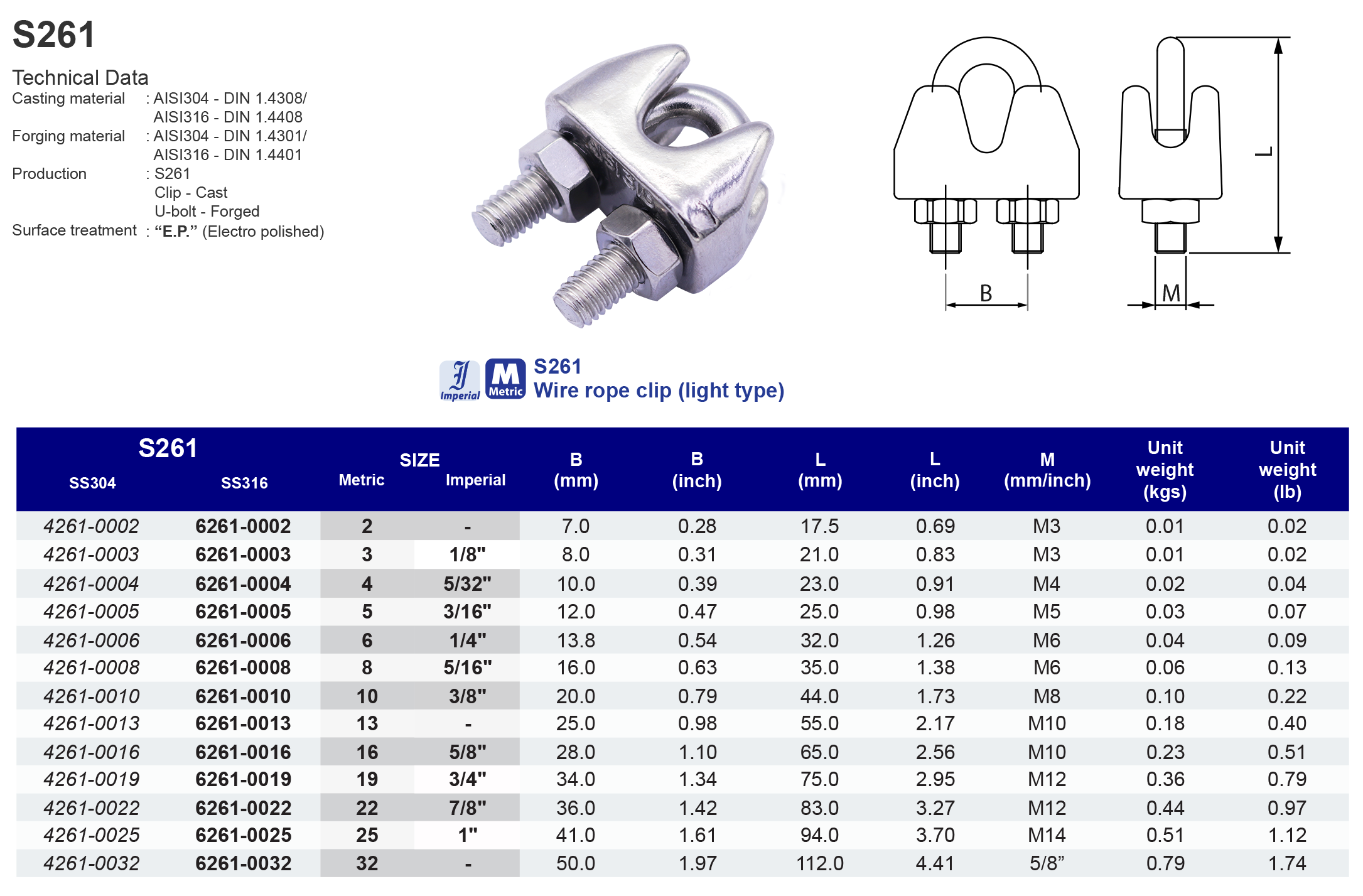

Technical Data
Casting material : AISI304 - DIN 1.4308
AISI316 - DIN 1.4408
Forging material : AISI304 - DIN 1.4301
AISI316 - DIN 1.4401
Production : S261
Clip - Cast
U-bolt - Forged
Surface treatment : “E.P.” (Electro polished)
Model
S261

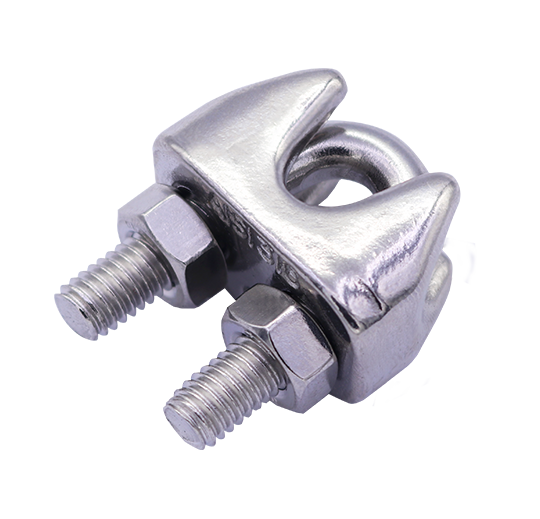

Wire rope clip (light type)
304 ss
| SS304 | Size (Metric) | Size (Imperial) | B (mm) | L (mm) | M (mm/inch) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 42610002 | 2 | 3/32" | 7 | 17.5 | M3 | 0.01 |
| 42610003 | 3 | 1/8" | 8 | 21 | M3 | 0.01 |
| 42610004 | 4 | 5/32" | 10 | 23 | M4 | 0.02 |
| 42610005 | 5 | 3/16" | 12 | 25 | M5 | 0.03 |
| 42610006 | 6 | 1/4" | 13.8 | 32 | M6 | 0.04 |
| 42610008 | 8 | 5/16" | 16 | 35 | M6 | 0.06 |
| 42610010 | 10 | 3/8" | 20 | 44 | M8 | 0.10 |
| 42610013 | 13 | 1/2" | 25 | 55 | M10 | 0.18 |
| 42610016 | 16 | 5/8" | 28 | 65 | M10 | 0.23 |
| 42610019 | 19 | 3/4" | 34 | 75 | M12 | 0.36 |
| 42610022 | 22 | 7/8" | 36 | 83 | M12 | 0.44 |
| 42610025 | 25 | 1" | 41 | 94 | M14 | 0.51 |
| 42610032 | 32 | 1-1/4" | 50 | 112 | 5/8" | 0.79 |
| SS304 | Size (Metric) | Size (Imperial) | B (inch) | L (inch) | M (mm/inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 42610002 | 2 | 3/32" | 0.28 | 0.69 | M3 | 0.02 |
| 42610003 | 3 | 1/8" | 0.31 | 0.83 | M3 | 0.02 |
| 42610004 | 4 | 5/32" | 0.39 | 0.91 | M4 | 0.04 |
| 42610005 | 5 | 3/16" | 0.47 | 0.98 | M5 | 0.07 |
| 42610006 | 6 | 1/4" | 0.54 | 1.26 | M6 | 0.09 |
| 42610008 | 8 | 5/16" | 0.63 | 1.38 | M6 | 0.13 |
| 42610010 | 10 | 3/8" | 0.79 | 1.73 | M8 | 0.22 |
| 42610013 | 13 | 1/2" | 0.98 | 2.17 | M10 | 0.40 |
| 42610016 | 16 | 5/8" | 1.10 | 2.56 | M10 | 0.51 |
| 42610019 | 19 | 3/4" | 1.34 | 2.95 | M12 | 0.79 |
| 42610022 | 22 | 7/8" | 1.42 | 3.27 | M12 | 0.97 |
| 42610025 | 25 | 1" | 1.61 | 3.7 | M14 | 1.12 |
| 42610032 | 32 | 1-1/4" | 1.97 | 4.41 | 5/8" | 1.74 |
