Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4401
Production:
S2490X - Snap - Forged
Surface Treatment:
Electro polished / Passivated
Model
S2490X

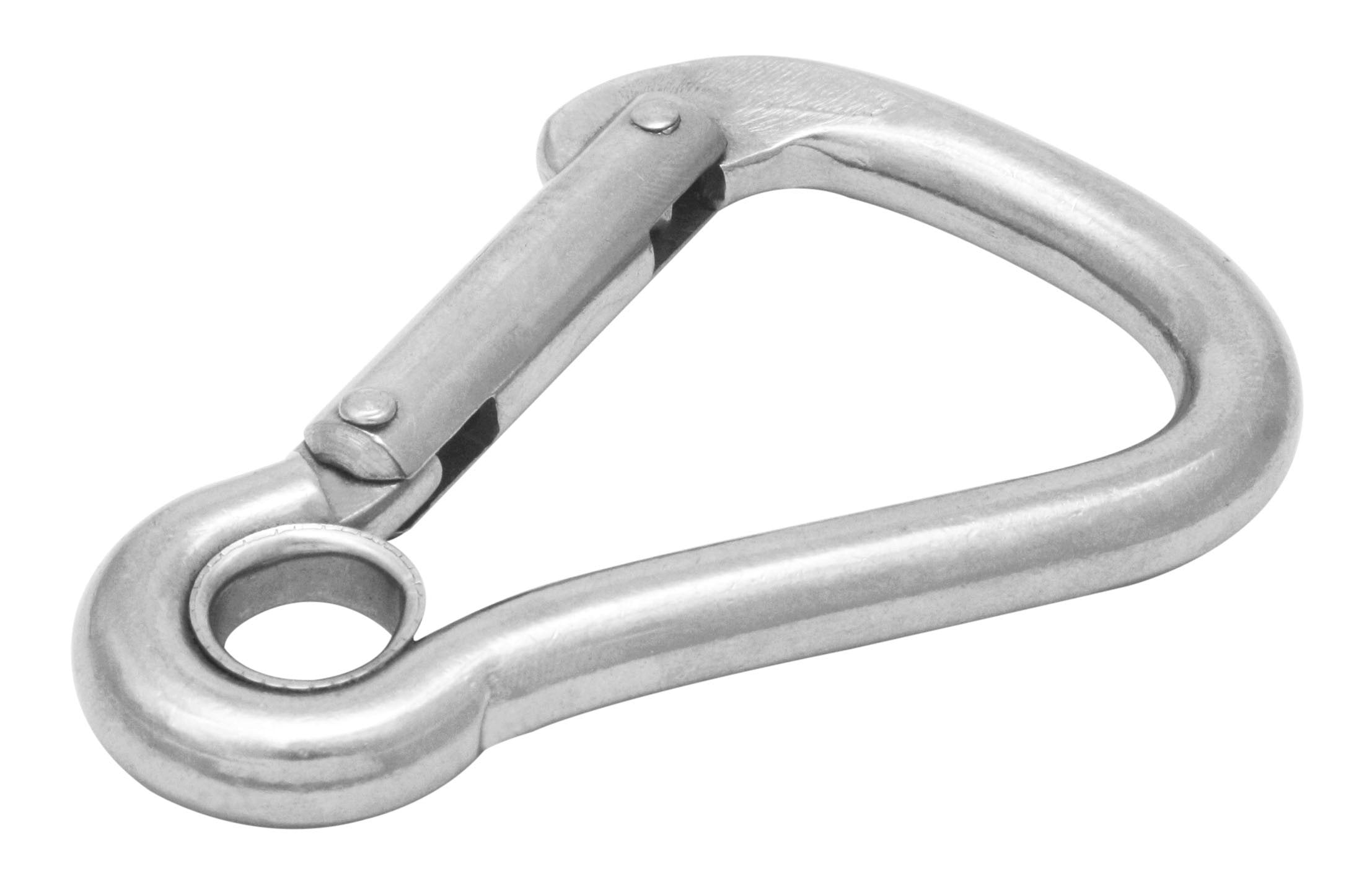

Heavy Spring Snaps
316 ss

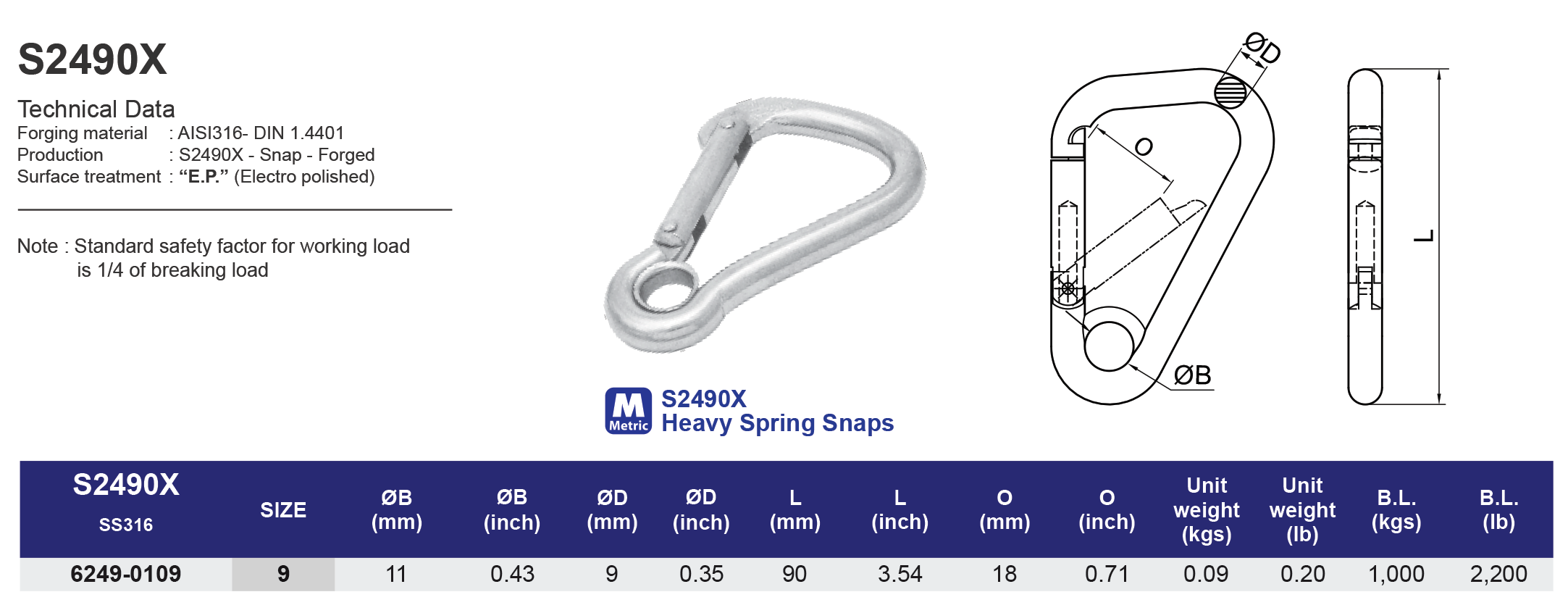

| SS316 | Size | ØB (mm) | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 6249-0109 | 9 | 11 | 9 | 90 | 18 | 0.09 | 1,000 |
| SS316 | Size | ØB (inch) | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 6249-0109 | 9 | 0.43 | 0.35 | 3.54 | 0.71 | 0.20 | 2,200 |
