Description
Technical Data:
Casting material : AISI316 - DIN 1.4408
Forging material : AISI316 - DIN 1.4401
Production : S2490S - Snap - Cast
Surface treatment : “E.P.” (Electro polished) Note : Standard safety factor for working
load
is 1/4 of breaking load

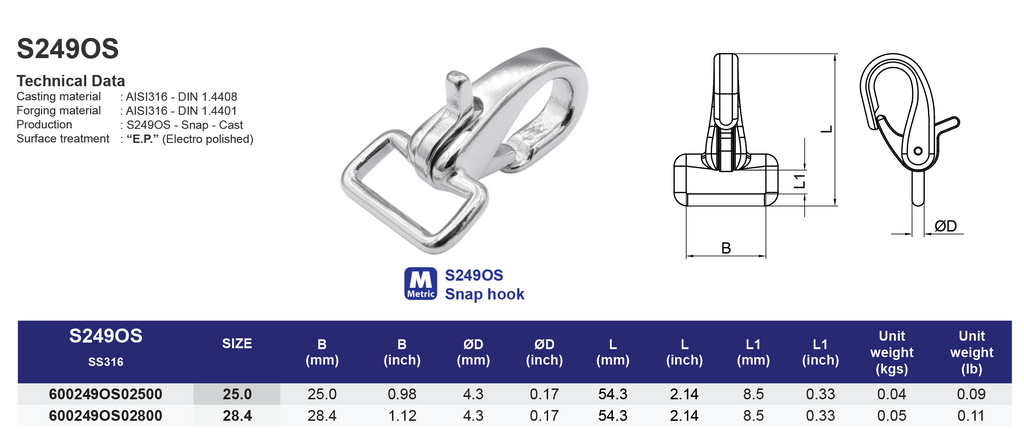

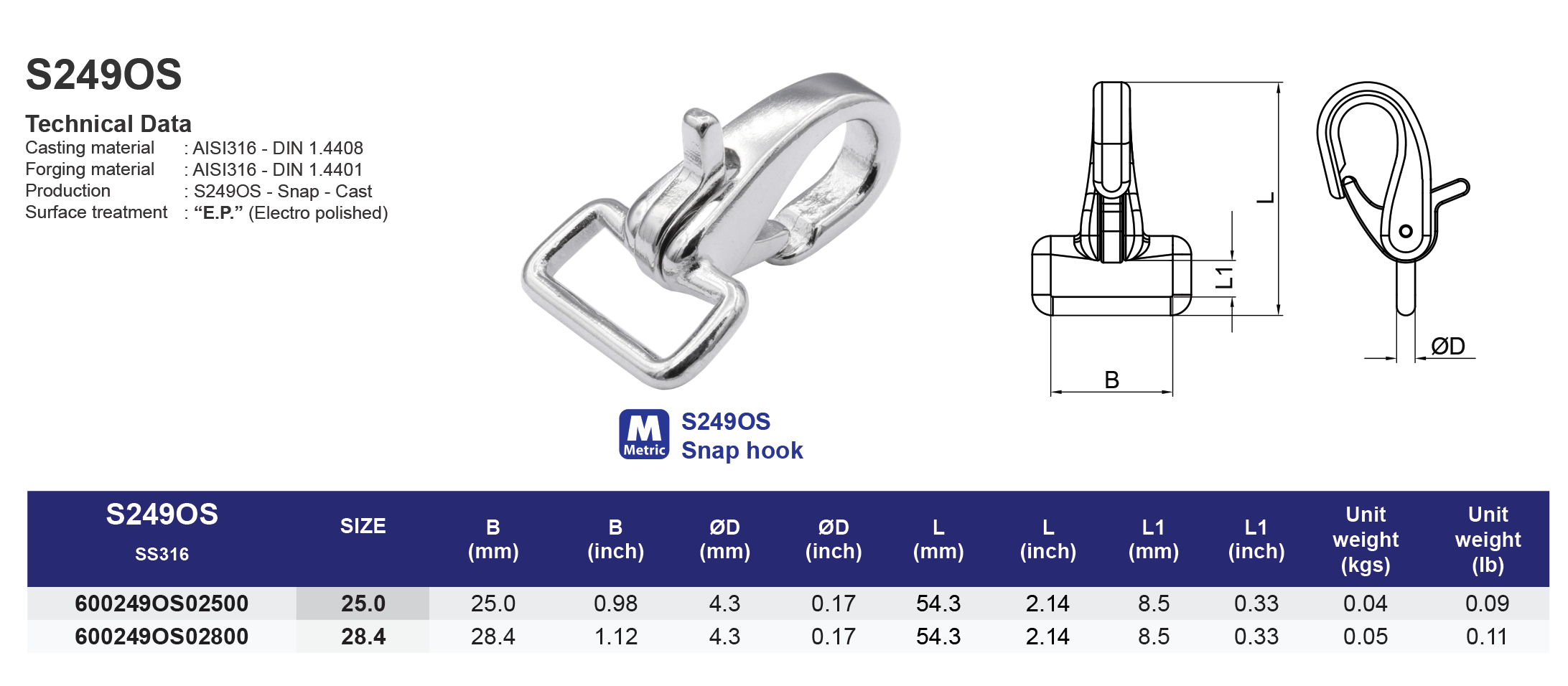

Model
S2490S
Snap hook
316 ss
| SS316 | Size | B (mm) | ØD (mm) | L (mm) | L1 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|
| 600249OS02500 | 25 | 25.0 | 4.3 | 54.3 | 8.5 | 0.04 |
| 600249OS02800 | 28.4 | 28.4 | 4.3 | 54.3 | 8.5 | 0.05 |
| SS316 | Size | B (inch) | ØD (inch) | L (inch) | L1 (inch) | Unit weight (lb) |
|---|---|---|---|---|---|---|
| 600249OS02500 | 1" | 0.98 | 0.17 | 2.14 | 0.33 | 0.09 |
| 600249OS02800 | 1-1/8" | 1.12 | 0.17 | 2.14 | 0.33 | 0.11 |
