Description
Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast , Swivel - Cast , Pin - Forged
Surface Treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

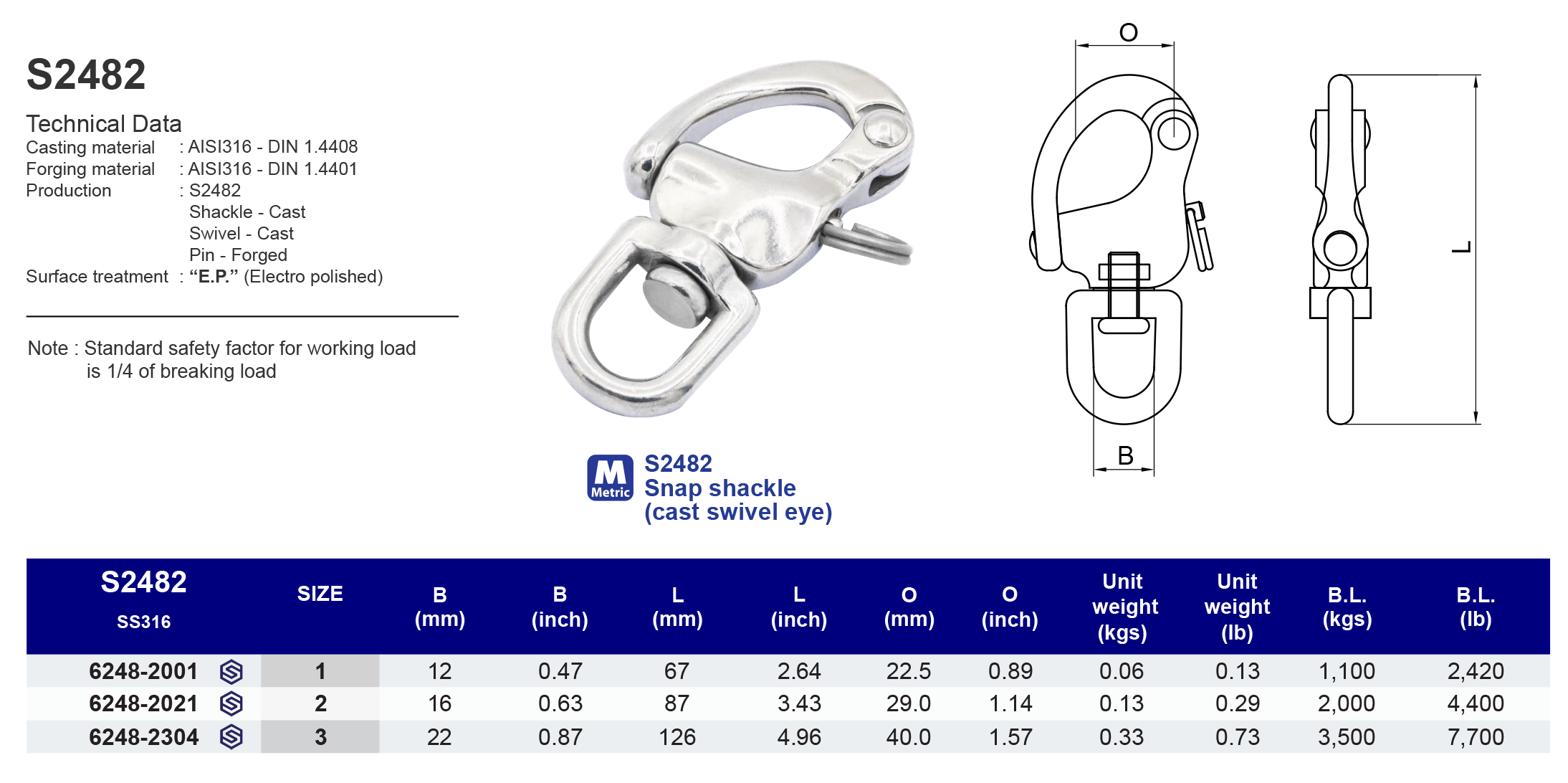

Model
S2482

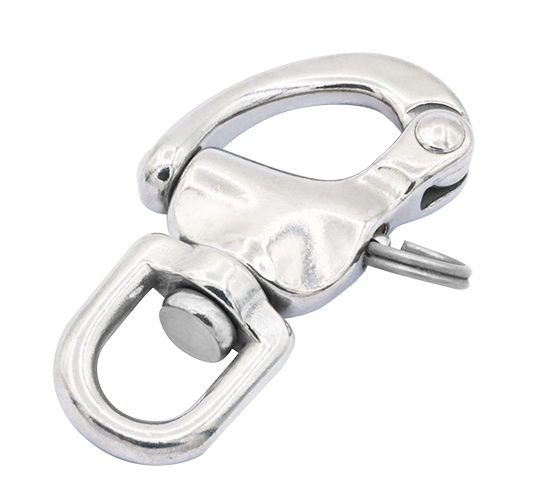

Snap shackle (cast swivel eye)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62482001 | 1 | 12 | 67 | 22.5 | 0.06 | 1,100 |
| 62482021 | 2 | 16 | 87 | 29.0 | 0.13 | 2,000 |
| 62482304 | 3 | 22 | 126 | 40.0 | 0.33 | 3,500 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62482001 | 1/2" | 0.47 | 2.64 | 0.89 | 0.13 | 2,420 |
| 62482021 | 5/8" | 0.63 | 3.43 | 1.14 | 0.29 | 4,400 |
| 62482304 | 7/8" | 0.87 | 4.96 | 1.57 | 0.73 | 7,700 |
