Description

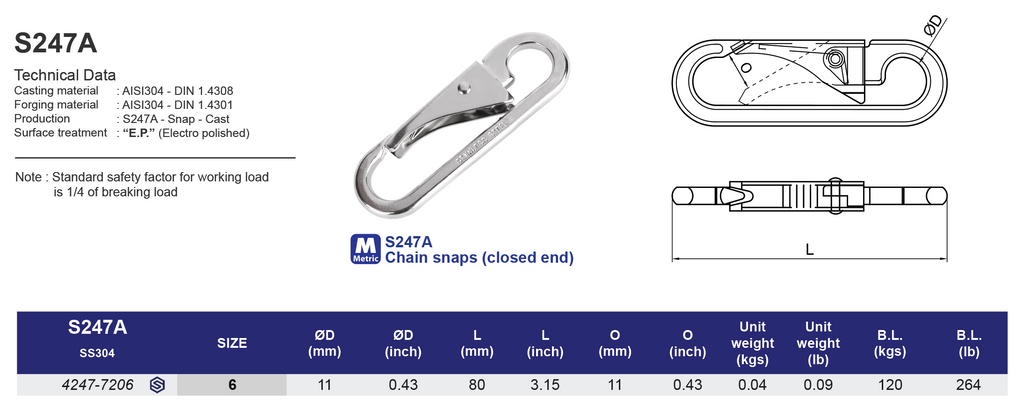

Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Forging Material:
AISI304 - DIN 1.4301
Production:
S247A - Snap - Cast
Surface Treatment:
“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S247A

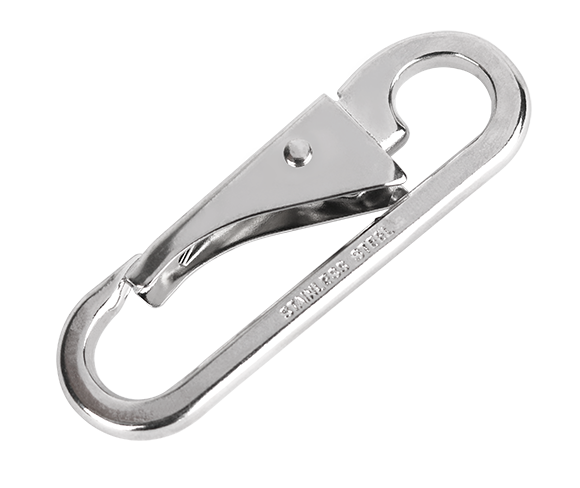

Chain snaps (closed end)
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![S247A drawing S247A drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S247A_DiagramV1.png)
![S247A image S247A image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S247A_ImageV1.png)

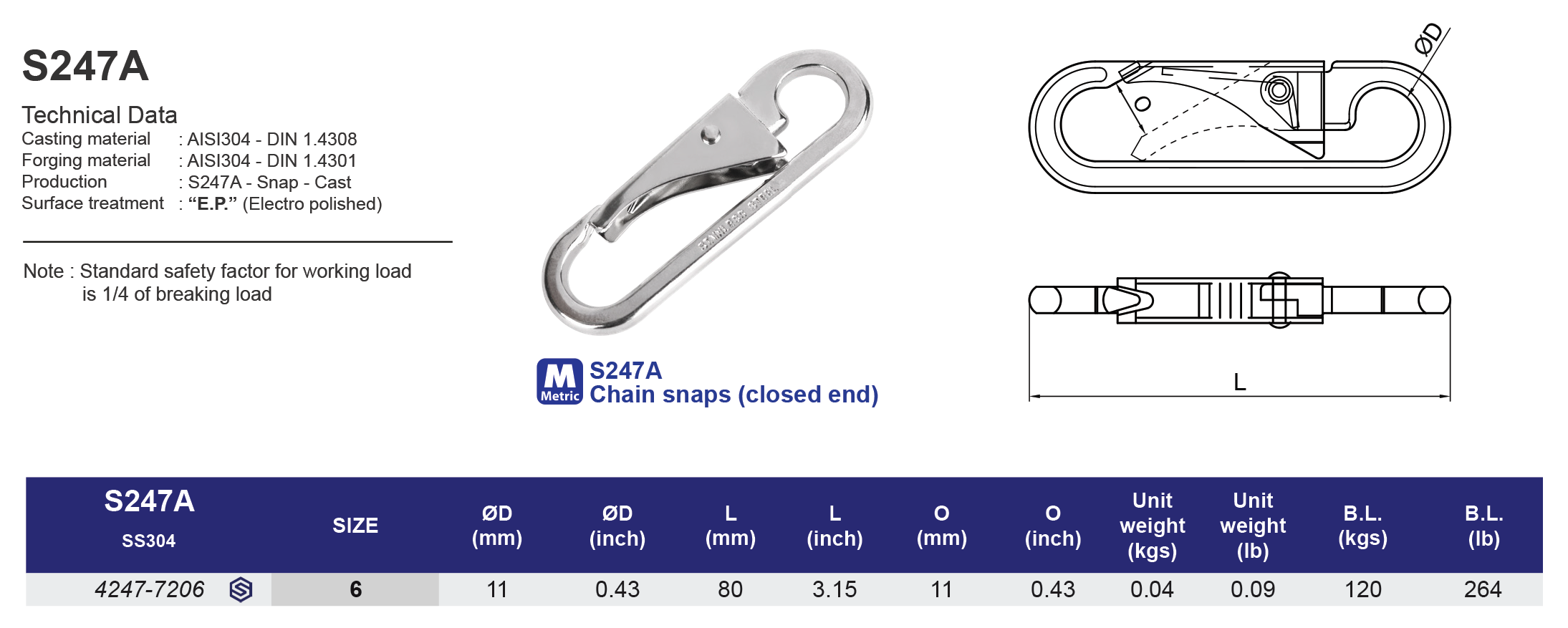

SS304 | Size | ØD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
42477206 | 6 | 6 | 80 | 11 | 0.04 | 120 |
SS304 | Size | ØD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
42477206 | 1/4" | 0.24 | 3.15 | 0.43 | 0.09 | 264 |
