Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Production : Snap - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

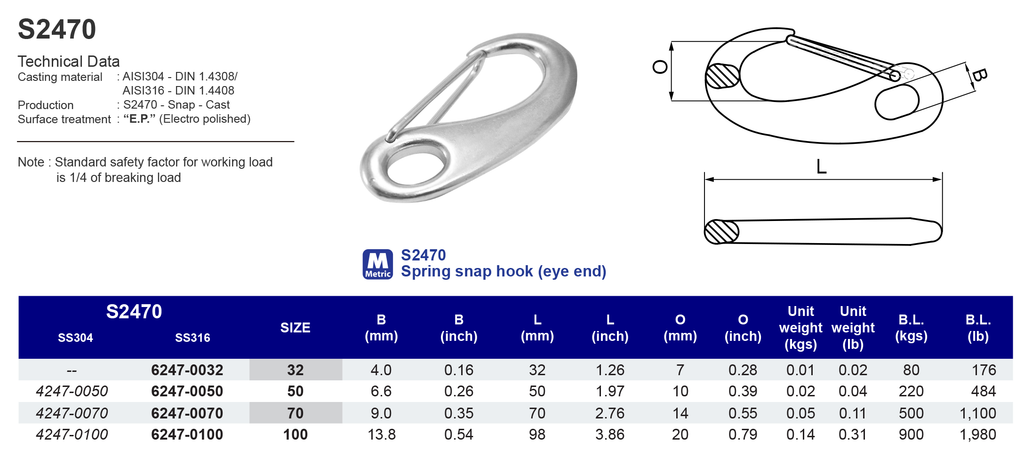

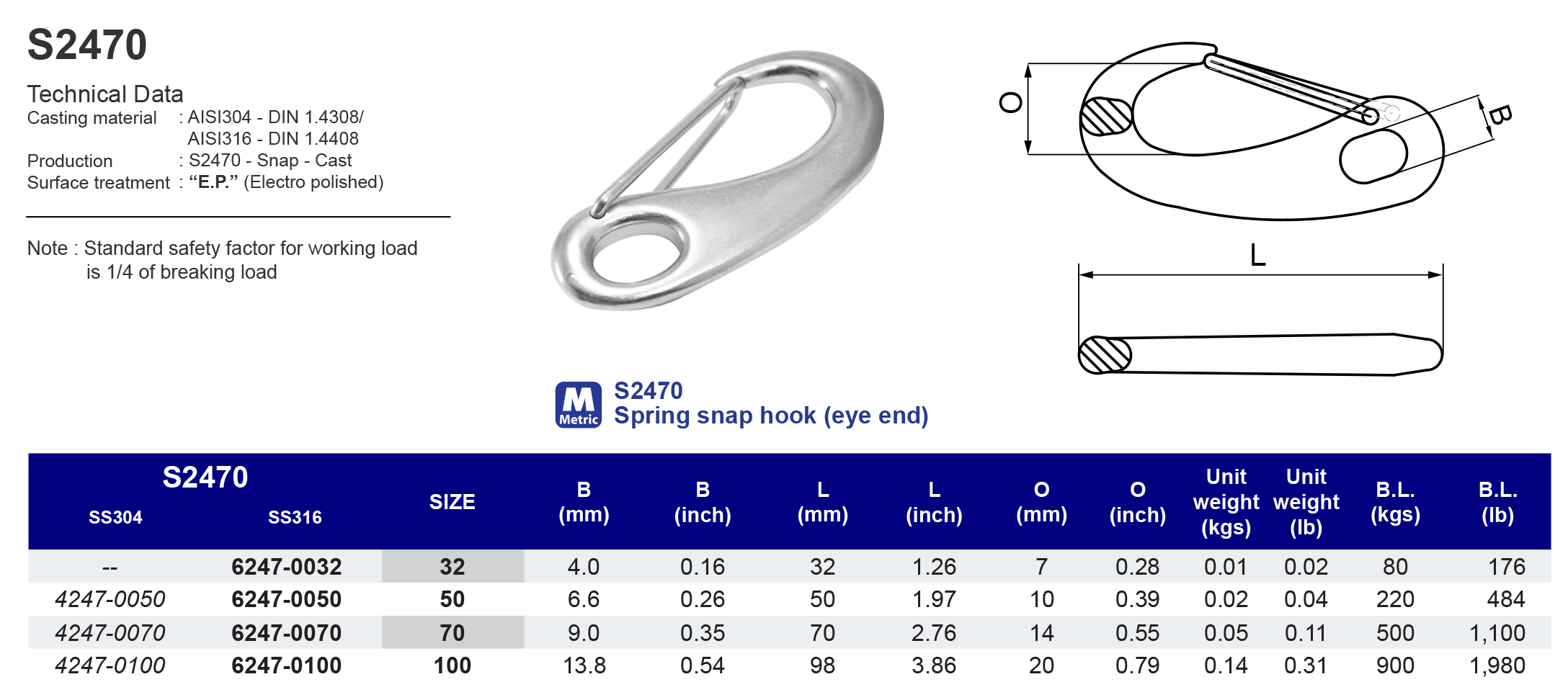

Model
S2470

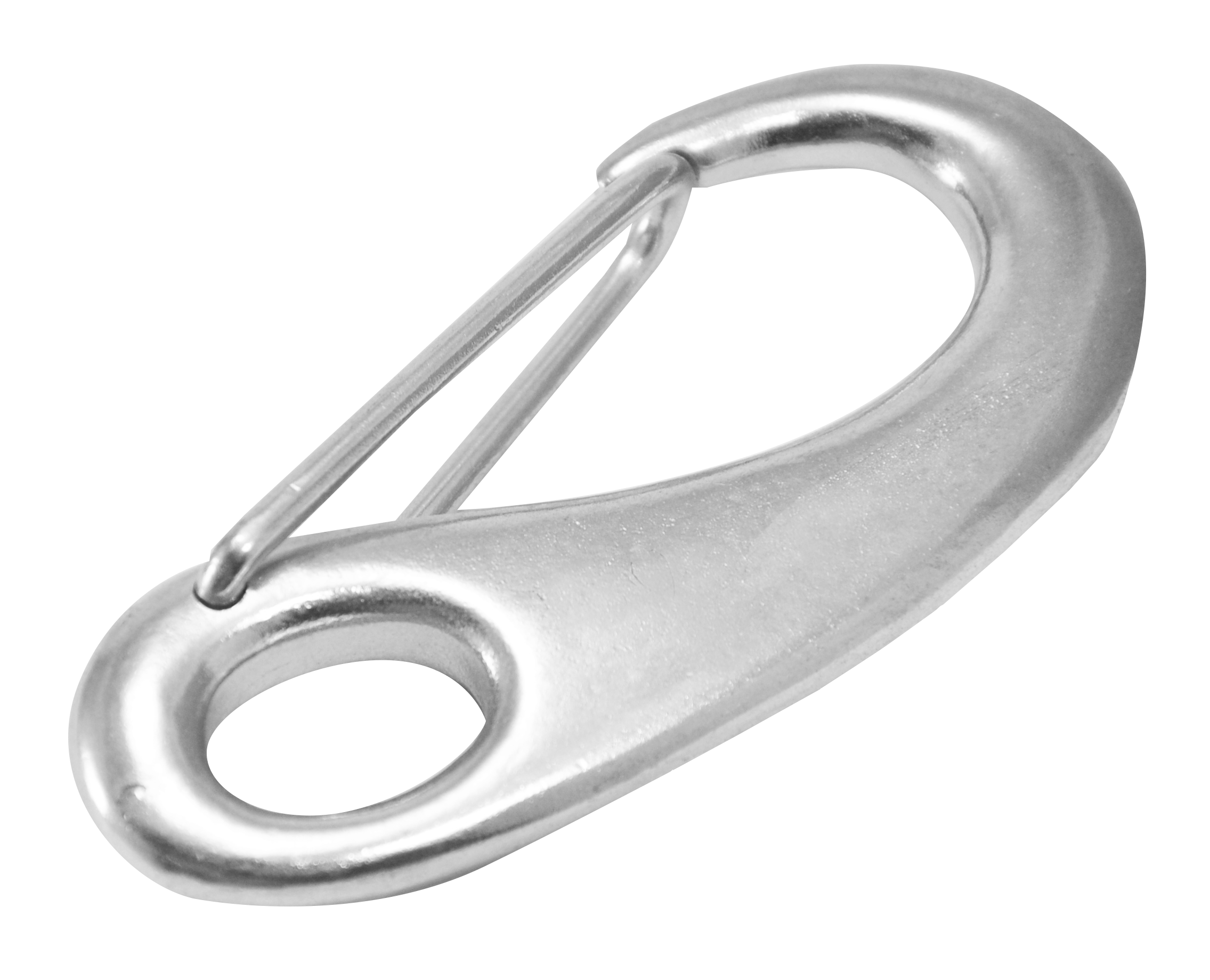

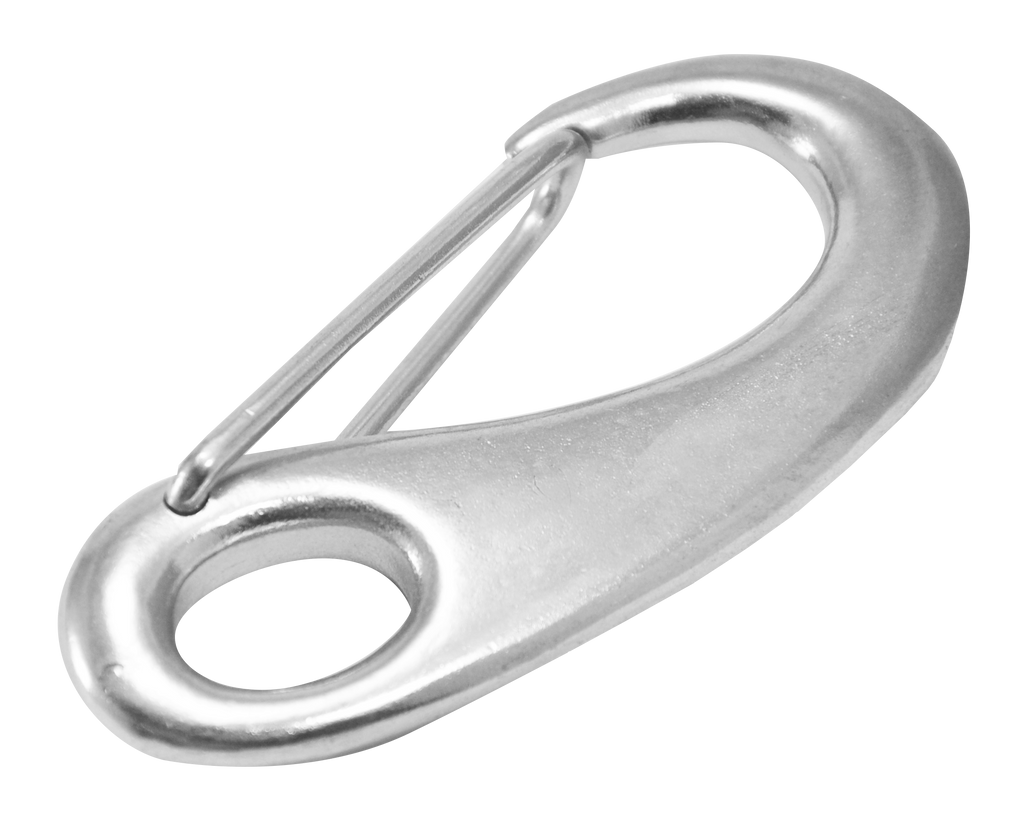

Spring snaps (eye end)
304 ss
| SS304 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| -- | 32 | 4.0 | 32 | 7 | 0.01 | 80 |
| 42470050 | 50 | 6.6 | 50 | 10 | 0.02 | 220 |
| 42470070 | 70 | 9.0 | 70 | 14 | 0.05 | 500 |
| 42470100 | 100 | 13.8 | 98 | 20 | 0.14 | 900 |
| SS304 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| -- | 1/8" | 0.16 | 1.26 | 0.28 | 0.02 | 176 |
| 42470050 | 1/4" | 0.26 | 1.97 | 0.39 | 0.04 | 484 |
| 42470070 | 3/8" | 0.35 | 2.76 | 0.47 | 0.11 | 1,100 |
| 42470100 | 1/2" | 0.54 | 3.86 | 0.87 | 0.31 | 1,980 |
