Description

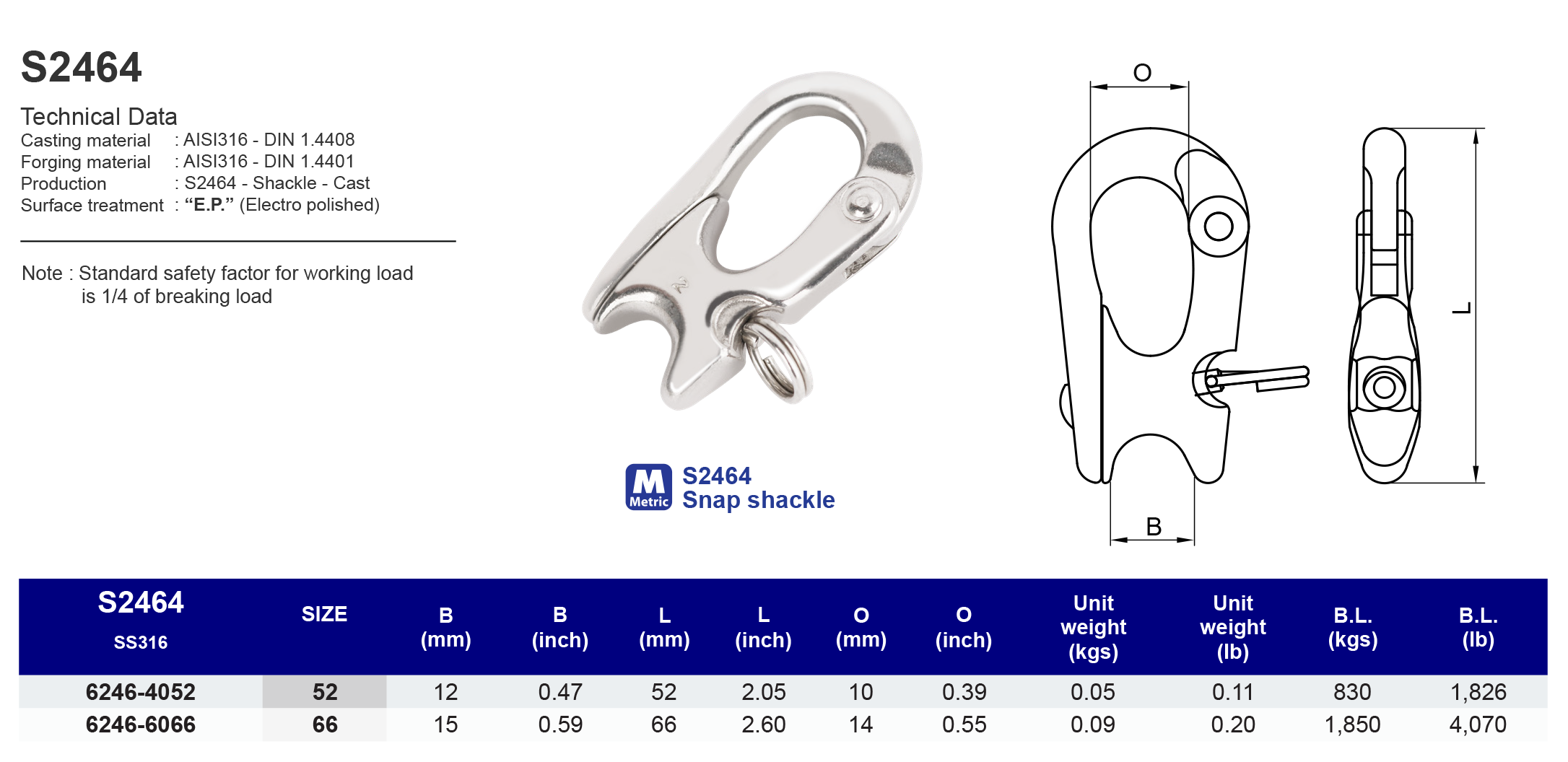

Technical Data
Casting Material : AISI316 - DIN 1.4408
Forging Material : AISI316 - DIN 1.4401
Production : Shackle - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

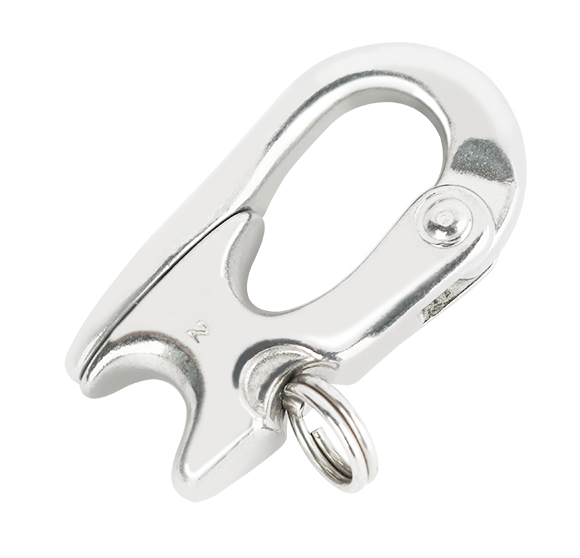

Model
S2464
Snap shackle
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62464052 | 52 | 12 | 52 | 10 | 0.05 | 830 |
| 62466066 | 66 | 15 | 66 | 14 | 0.09 | 1,850 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62464052 | 52 | 0.47 | 2.05 | 0.39 | 0.11 | 1,826 |
| 62466066 | 66 | 0.59 | 2.60 | 0.55 | 0.20 | 4,070 |
