Description
Technical Data
Forging Material : AISI316 - DIN 1.4408
Production : Snap - Forged
Surface Treatment : "E.P." (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

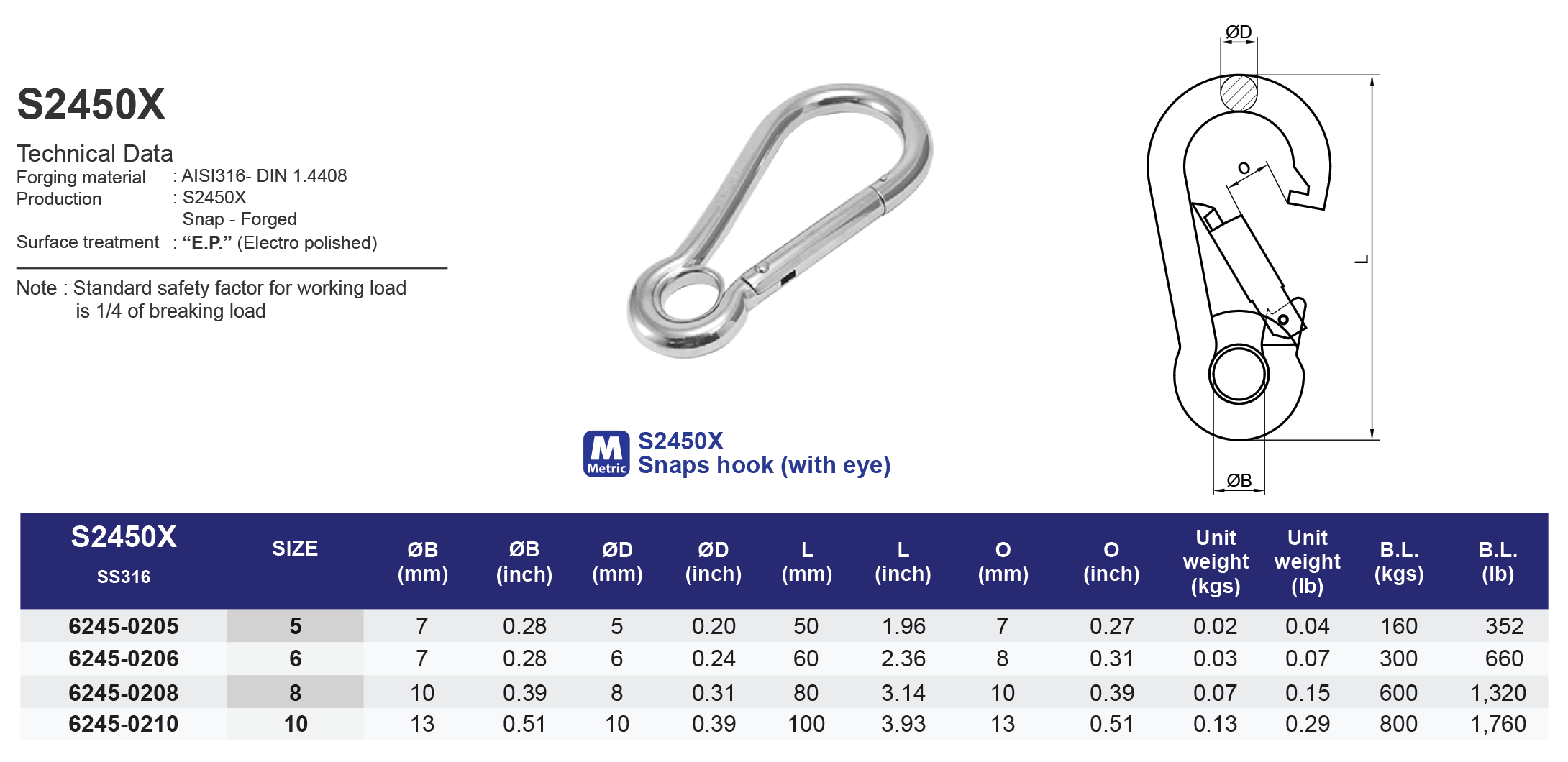

Model
S2450X

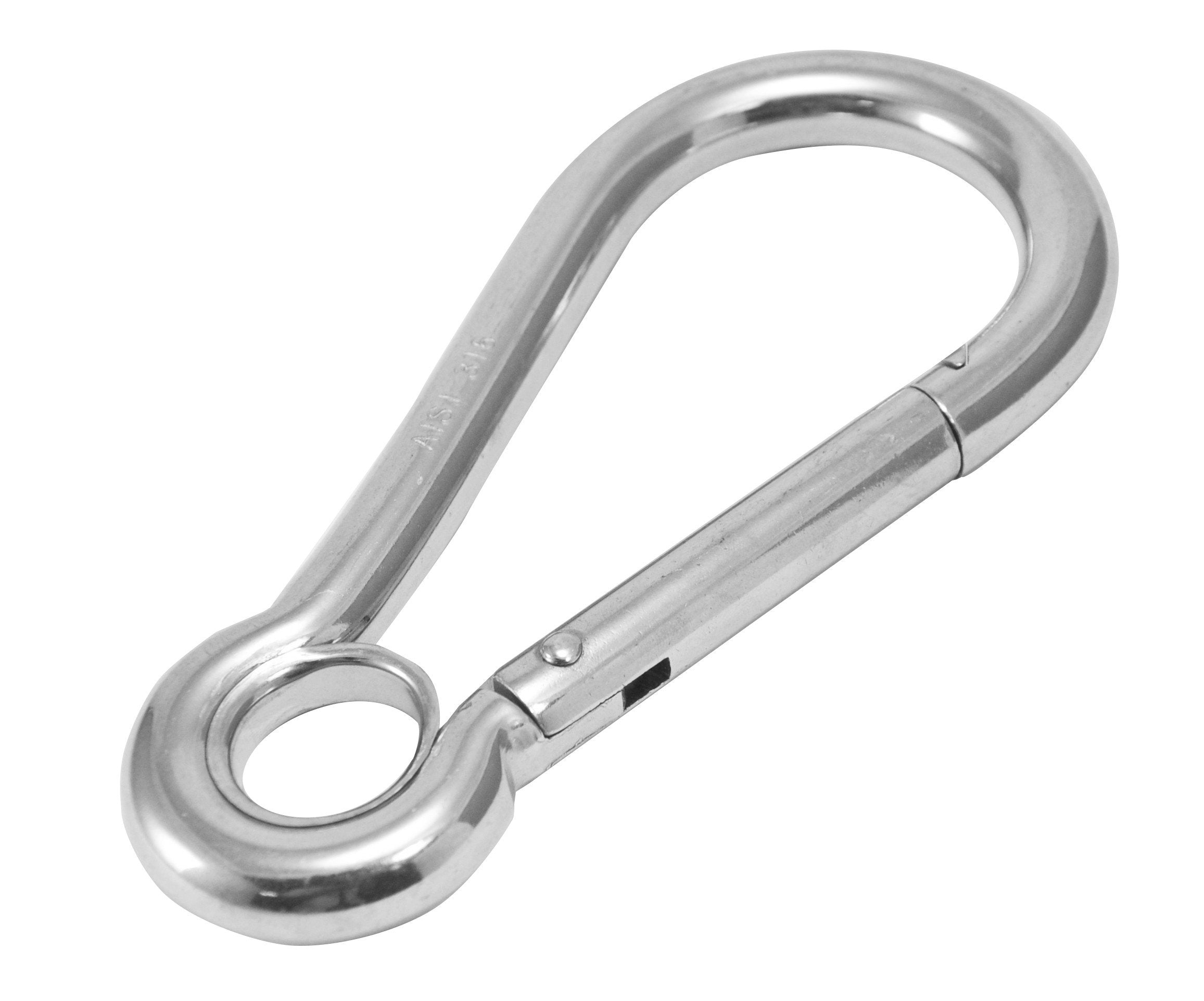

Snaps hook (with eye)
316 ss
| SS316 | Size | ĆB (mm) | ĆD (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 62450205 | 5 | 7 | 5 | 50 | 7 | 0.02 | 160 |
| 62450206 | 6 | 7 | 6 | 60 | 8 | 0.03 | 300 |
| 62450208 | 8 | 10 | 8 | 80 | 10 | 0.07 | 600 |
| 62450210 | 10 | 13 | 10 | 100 | 13 | 0.13 | 800 |
| SS316 | Size | ĆB (inch) | ĆD (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 62450205 | 3/16" | 0.28 | 0.20 | 1.96 | 0.27 | 0.04 | 352 |
| 62450206 | 1/4" | 0.28 | 0.24 | 2.36 | 0.31 | 0.07 | 660 |
| 62450208 | 5/16" | 0.39 | 0.31 | 3.14 | 0.39 | 0.15 | 1,320 |
| 62450210 | 3/8" | 0.51 | 0.39 | 3.93 | 0.51 | 0.29 | 1,760 |
