S2450 Snaps hook - 316

SKU: 62450005

Size (mm): 5mm
Price:

Login to view the price.

Stock:
Login to view stock.

Description

Technical Data:
Forging Material: AISI316 - DIN 1.4408
Production: S2450 - Snap - Forged
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

DATA SHEET DOWNLOAD


Model

S2450

Snaps hook
316 ss

S2450drawing

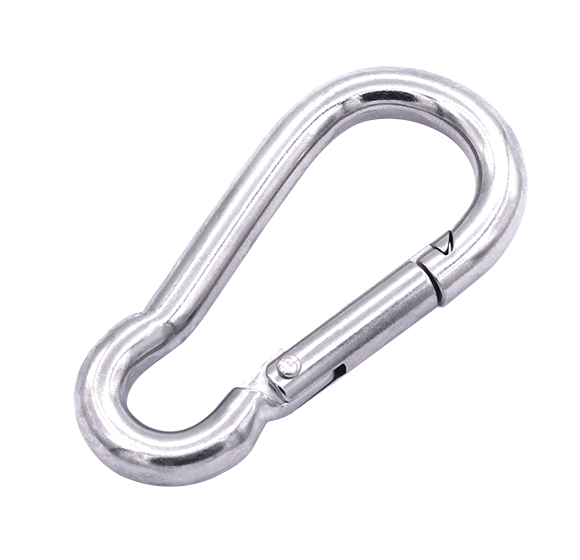

S2450 image

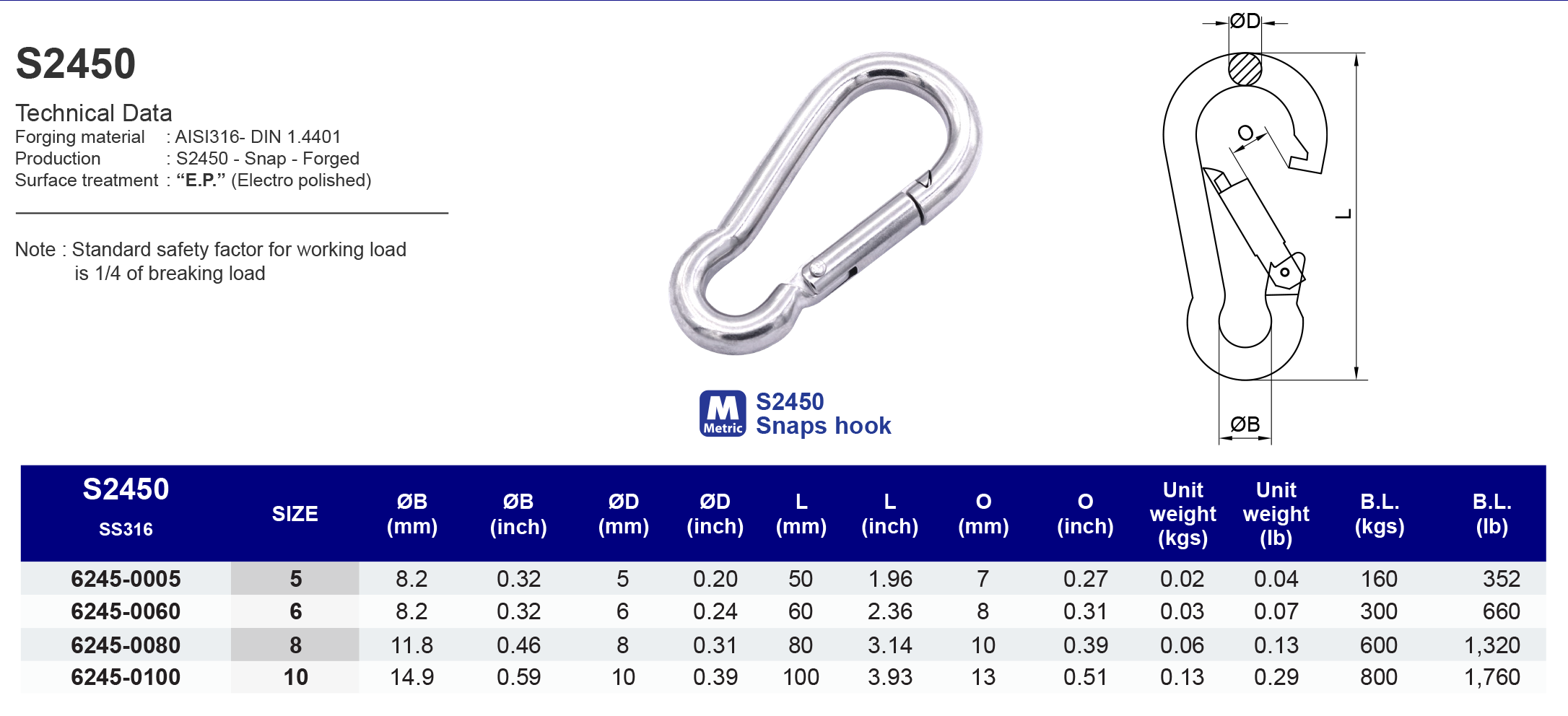

SS316SizeØB (mm)ØD (mm)L (mm)O (mm)Unit weight (kgs)B.L. (kgs)
6245000558.255070.02160
6245006068.266080.03300
62450080811.8880100.07600
624501001014.910100130.13800
SS316SizeØB (inch)ØD (inch)L (inch)O (inch)Unit weight (lb)B.L. (lb)
624500053/16"0.320.201.960.270.04352
624500601/4"0.320.242.360.310.07660
624500805/16"0.460.313.140.390.151,320
624501003/8"0.590.393.930.510.291,760
