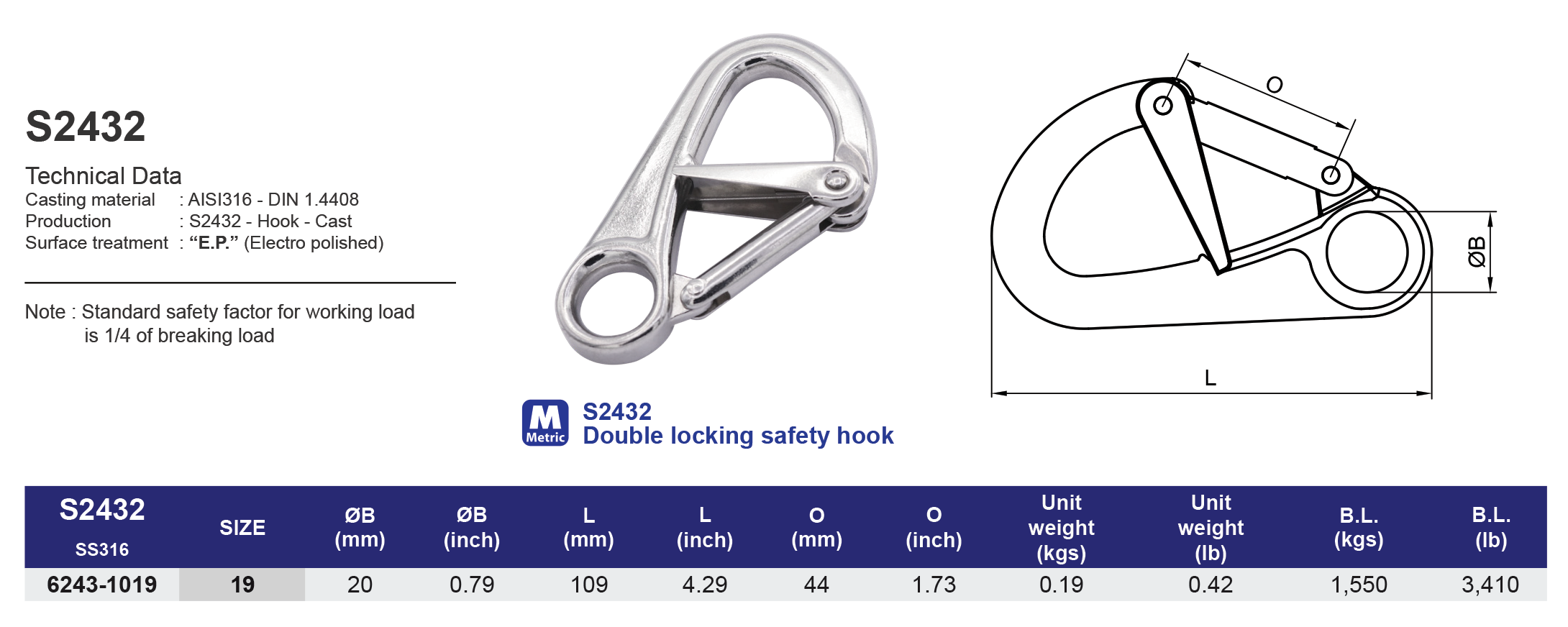

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: S2432 - Hook - Cast Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load
Model
S2432

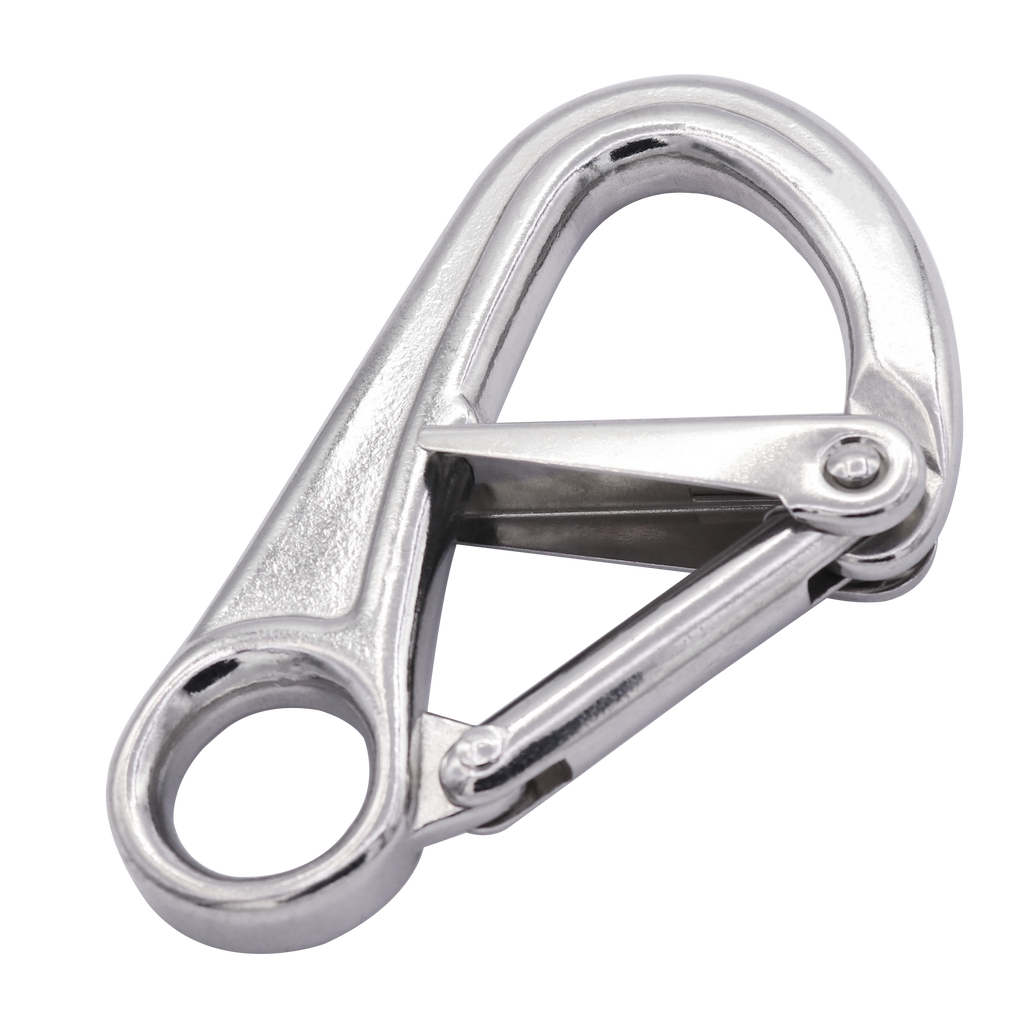

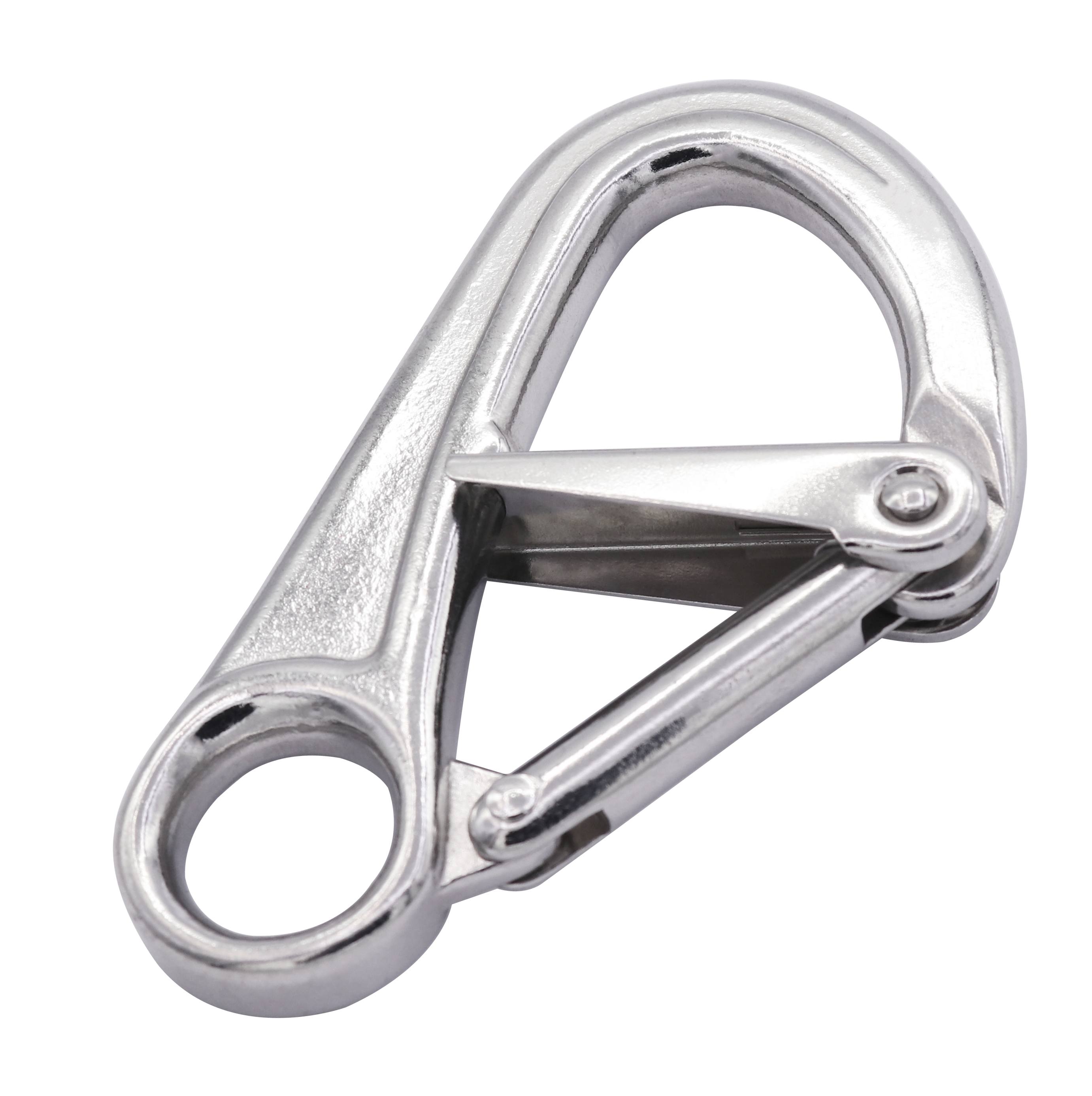

Double locking safety hook
316 ss
![Kinzi 316 Kinzi 316](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/316-ss.png)
![S2432 drawing S2432 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S2432_DiagramV1.png)
![S2432 image S2432 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S2432_ImageV1.png)
SS316 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|
62431019 | 19 | 20 | 109 | 20 | 0.19 | 1550 |
SS316 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|
62431019 | 3/4" | 0.79 | 4.29 | 0.79 | 0.42 | 3,410 |
