Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S2344 - Thimble - Cast
Surface Treatment:
“E.P.” (Electro polished)

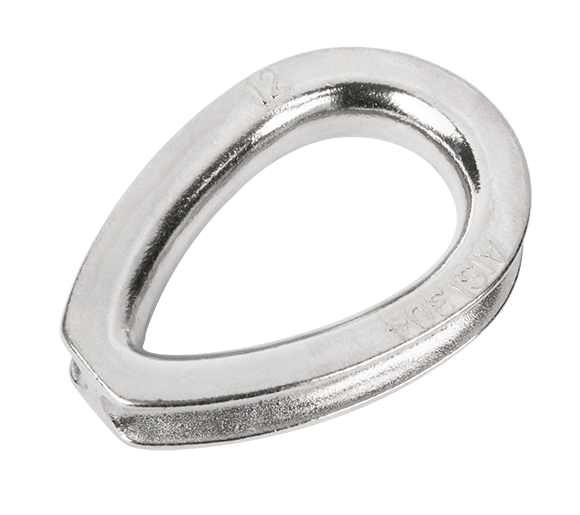

Model
S2344

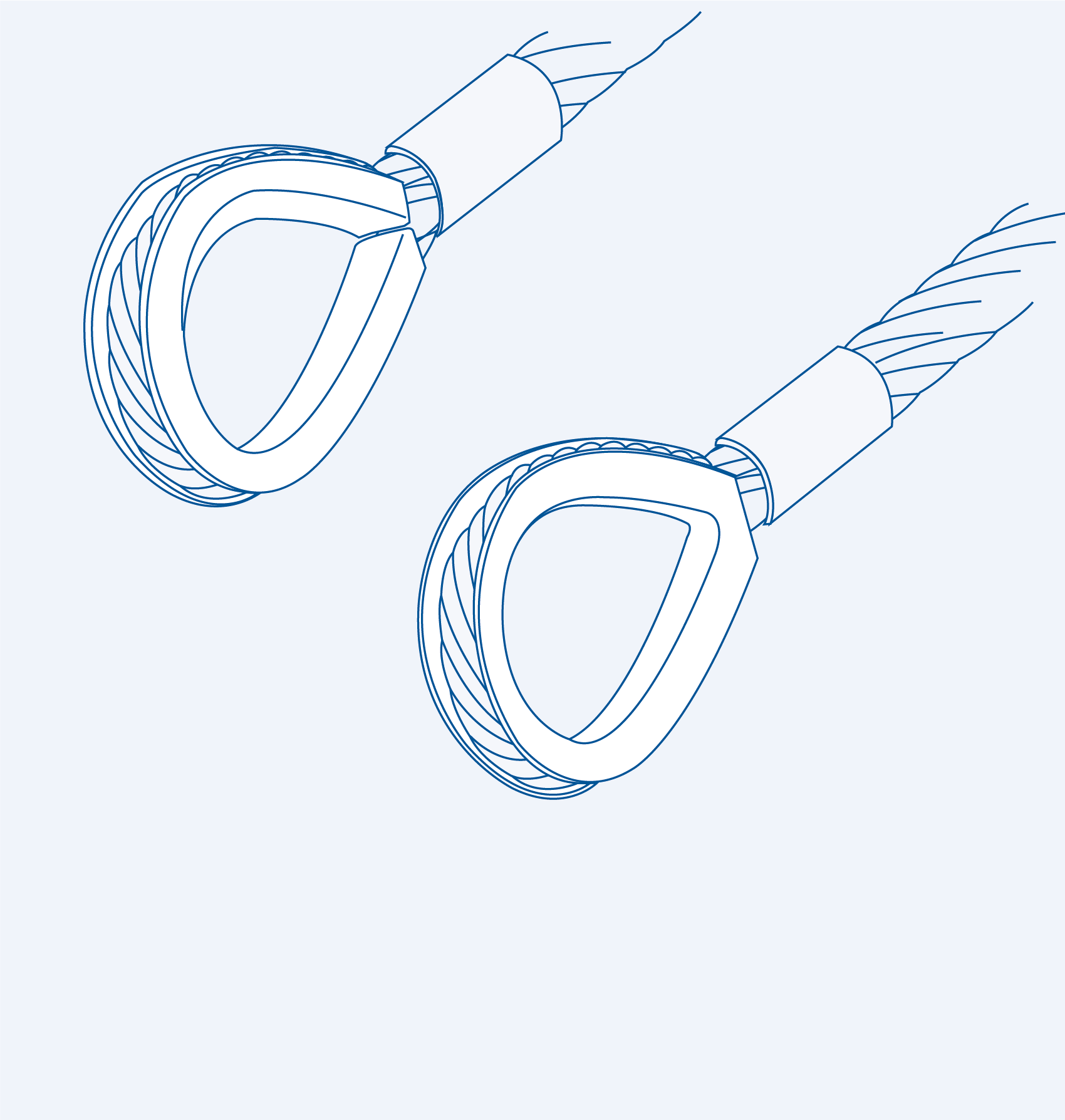

Closed end thimbles
304 ss

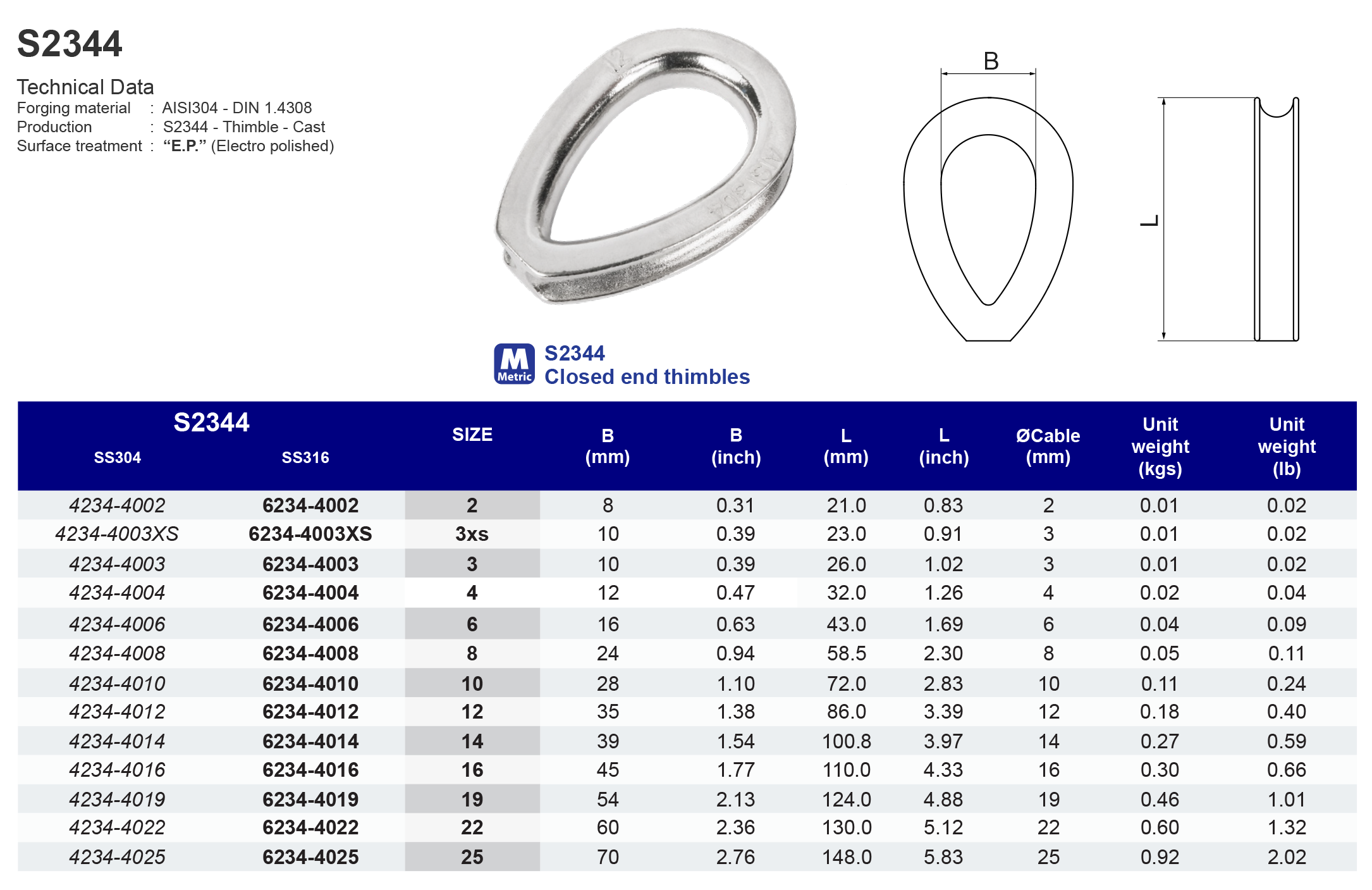

| SS304 | SIZE | B (mm) | L (mm) | DiaØ Cable (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 42344002 | 2 | 8 | 21 | 2 | 0.01 |
| 42344003XS | 3XS | 10 | 23 | 3 | 0.01 |
| 42344003 | 3 | 10 | 26 | 3 | 0.01 |
| 42344004 | 4 | 12 | 32 | 4 | 0.02 |
| 42344006 | 6 | 16 | 43 | 6 | 0.04 |
| 42344008 | 8 | 24 | 58.5 | 8 | 0.05 |
| 42344010 | 10 | 28 | 72 | 10 | 0.11 |
| 42344012 | 12 | 35 | 86 | 12 | 0.18 |
| 42344014 | 14 | 39 | 100.8 | 14 | 0.27 |
| 42344016 | 16 | 45 | 110 | 16 | 0.30 |
| 42344019 | 19 | 54 | 124 | 19 | 0.46 |
| 42344022 | 22 | 60 | 130 | 22 | 0.60 |
| 42344025 | 25 | 70 | 148 | 25 | 0.92 |
| SS304 | SIZE | B (inch) | L (inch) | DiaØ Cable (mm) | Unit weight (lb) |
|---|---|---|---|---|---|
| 42344002 | 3/32" | 0.31 | 0.83 | 2 | 0.02 |
| 42344003XS | 1/8"XS | 0.39 | 0.91 | 3 | 0.02 |
| 42344003 | 1/8" | 0.39 | 1.02 | 3 | 0.02 |
| 42344004 | 5/32" | 0.47 | 1.26 | 4 | 0.04 |
| 42344006 | 1/4" | 0.63 | 1.69 | 6 | 0.09 |
| 42344008 | 5/16" | 0.94 | 2.30 | 8 | 0.11 |
| 42344010 | 3/8" | 1.10 | 2.83 | 10 | 0.24 |
| 42344012 | 1/2" | 1.38 | 3.39 | 12 | 0.40 |
| 42344014 | 9/16" | 1.54 | 3.97 | 14 | 0.59 |
| 42344016 | 5/8" | 1.77 | 4.33 | 16 | 0.66 |
| 42344019 | 3/4" | 2.13 | 4.88 | 19 | 1.01 |
| 42344022 | 7/8" | 2.36 | 5.12 | 22 | 1.32 |
| 42344025 | 1" | 2.76 | 5.83 | 25 | 2.02 |
