Description
Technical Data:
Casting Material:
AISI304 - DIN 1.4308
Production:
S2343 - Thimble - Cast
Surface Treatment:
Electro polished / Passivated
Model
S2343

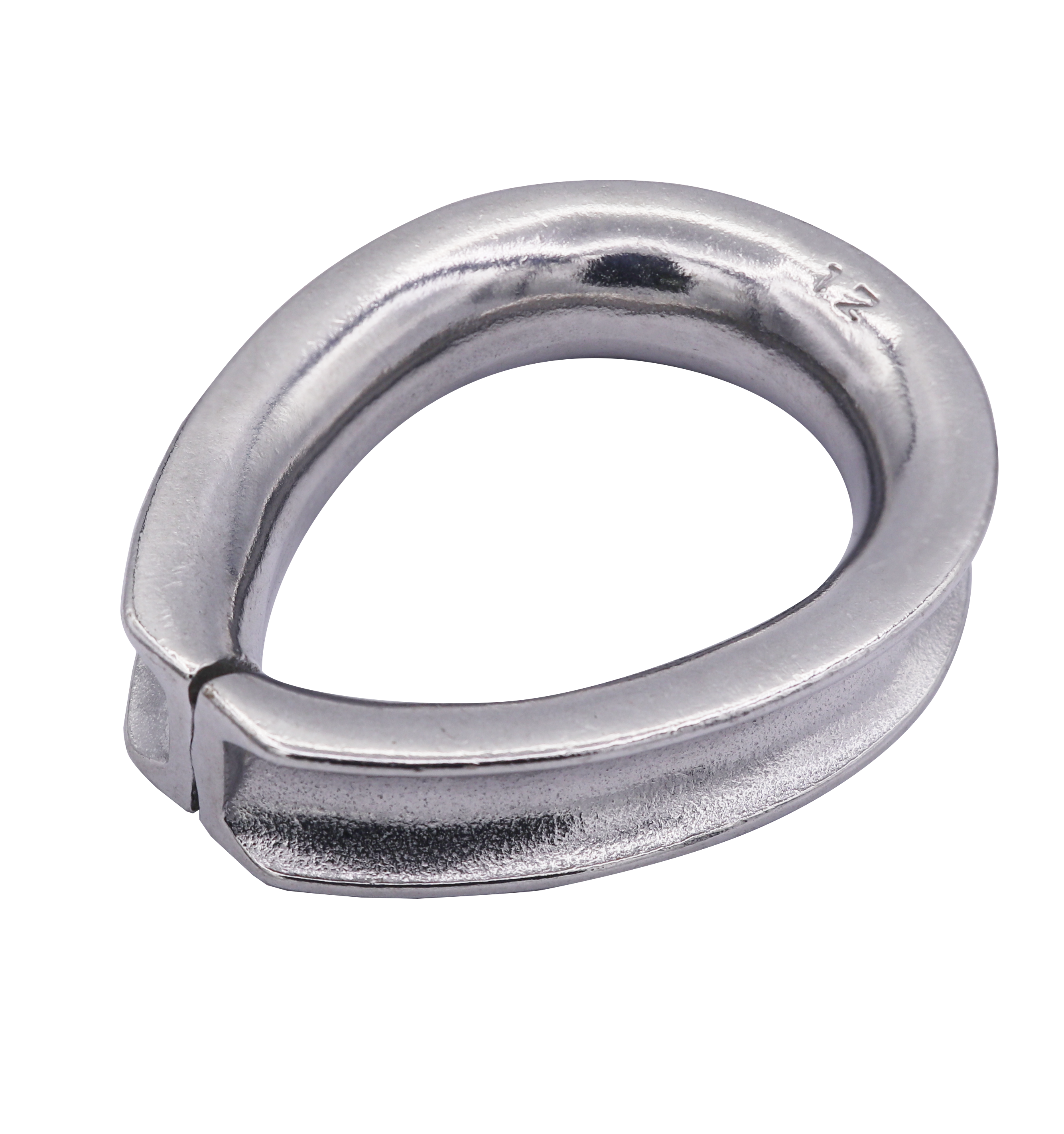

Opened End Thimbles
304 ss
| SS304 | Size | B(mm) | L(mm) | DiaØCable(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 42343006 | 6 | 16 | 35.5 | 6 | 0.01 |
| 42343008 | 8 | 22.4 | 47.3 | 8 | 0.03 |
| 42343010 | 10 | 28 | 58 | 10 | 0.05 |
| 42343012 | 12 | 34 | 67 | 12 | 0.10 |
| 42343016 | 16 | 44 | 91 | 16 | 0.26 |
| 42343020 | 20 | 54 | 112 | 20 | 0.49 |
| 42343022 | 22 | 59 | 120 | 22 | 0.43 |
| 42343025 | 25 | 68 | 134 | 25 | 0.88 |
| SS304 | Size | B(inch) | L(inch) | DiaØCable(inch) | Unit weight (Ib) |
|---|---|---|---|---|---|
| 42343006 | 6 | 0.63 | 1.40 | 1/4" | 0.02 |
| 42343008 | 8 | 0.88 | 1.86 | 5/16" | 0.07 |
| 42343010 | 10 | 1.10 | 2.28 | 3/8" | 0.11 |
| 42343012 | 12 | 1.34 | 2.64 | 1/2" | 0.22 |
| 42343016 | 16 | 1.73 | 3.58 | 5/8" | 0.57 |
| 42343020 | 20 | 2.13 | 4.41 | 13/16" | 1.08 |
| 42343022 | 22 | 2.32 | 4.72 | 7/8" | 0.95 |
| 42343025 | 25 | 2.68 | 5.28 | 1" | 1.94 |
