Description
Technical Data
Casting Material : AISI304 - DIN 1.4308
Production : Hook - Cast
Surface Treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load
DATA SHEET DOWNLOAD

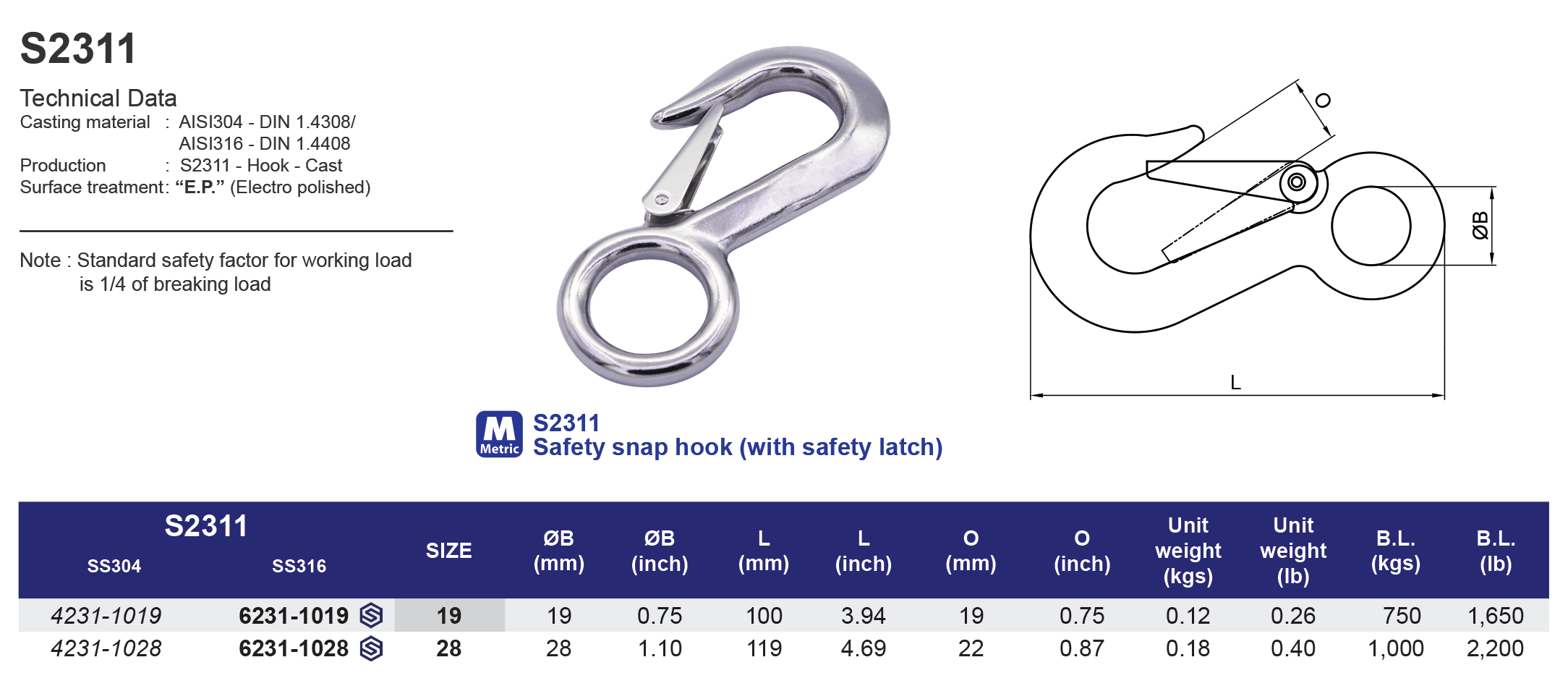

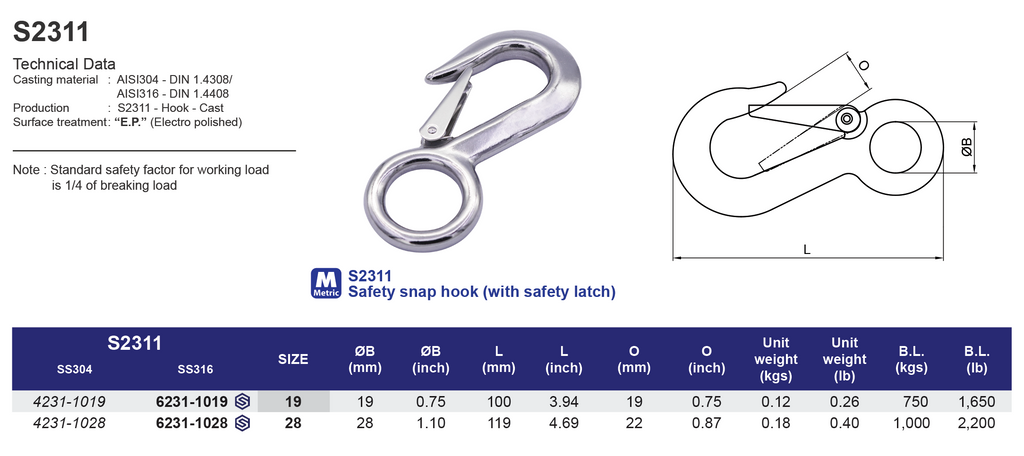

Model
S2311

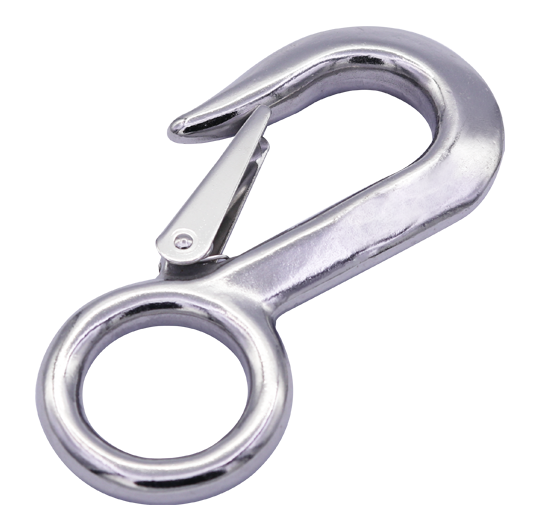

Safety snap hook (with safety latch)
316 ss
| SS304 | Size | ØB (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 42311019 | 19 | 19 | 100 | 19 | 0.12 | 750 |
| 42311028 | 28 | 28 | 119 | 22 | 0.18 | 1,000 |
| SS304 | Size | ØB (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 42311019 | 3/4" | 0.75 | 3.94 | 0.75 | 0.26 | 1,650 |
| 42311028 | 1-1/8" | 1.10 | 4.69 | 0.87 | 0.40 | 2,200 |
