Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Welding Material: AISI304 - DIN 1.4301
Production : S213 - E1 - Swivel eye - Cast
Sheave - Cast
Block - Cast
Eye end (rod) - Welded
Surface Treatment :“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load. DATA SHEET DOWNLOAD

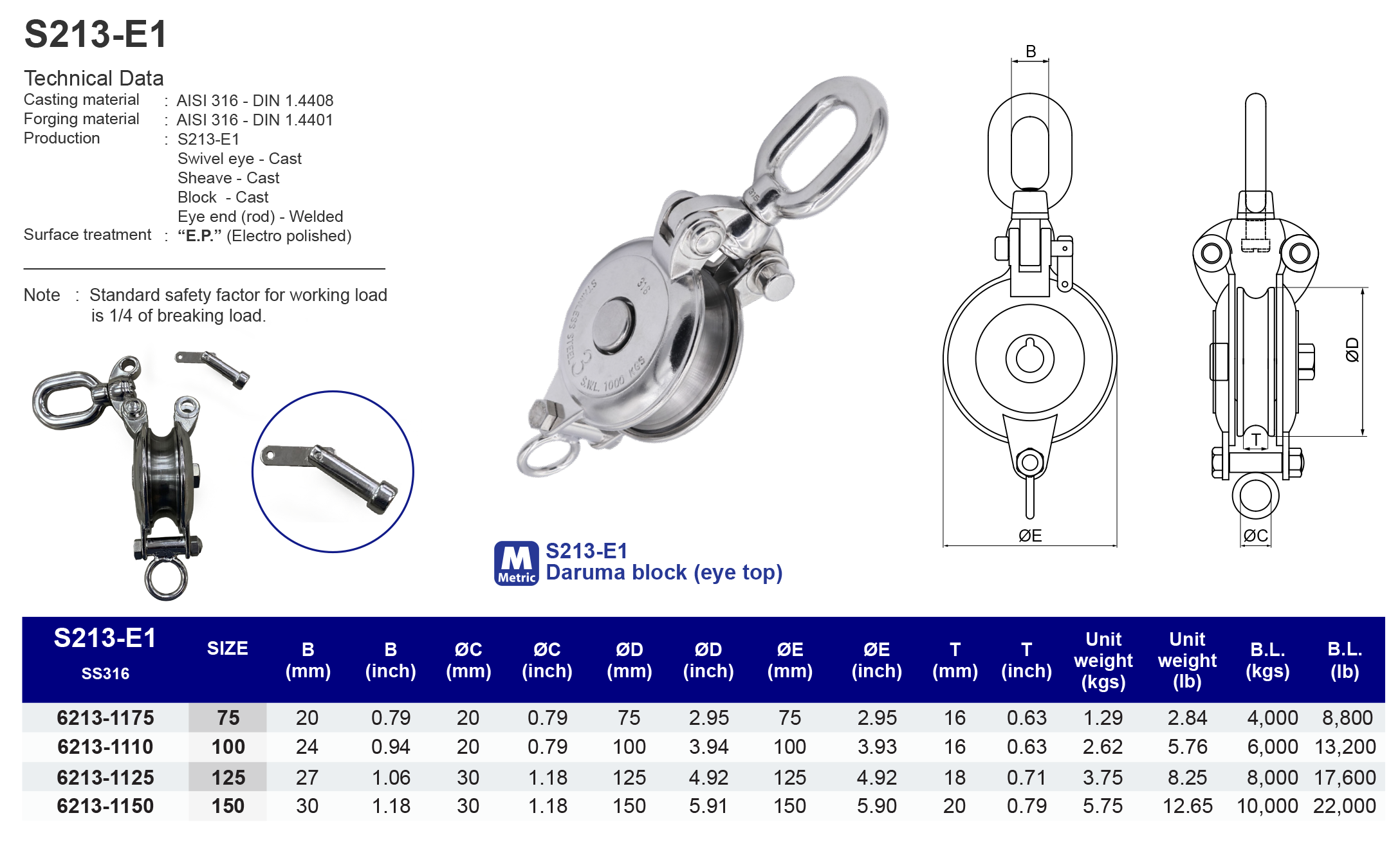

Model
S213-E1

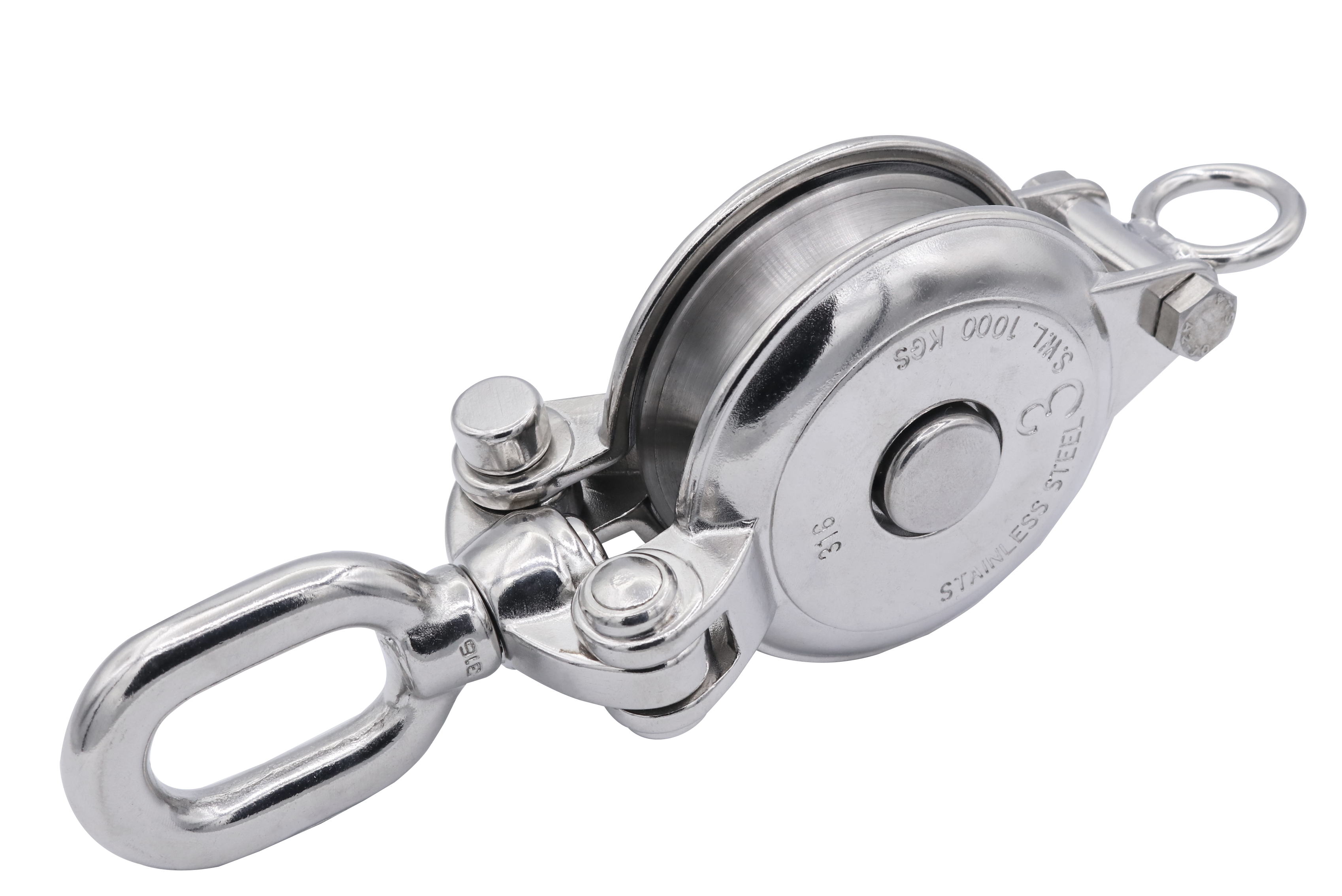

Daruma block (eye top)
316 ss
| SS316 | SIZE | B (mm) | ØC (mm) | ØD (mm) | ØE (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 62131175 | 75 | 20 | 20 | 75 | 75 | 16 | 1.29 | 4,000 |
| 62131110 | 100 | 24 | 20 | 100 | 100 | 16 | 2.62 | 6,000 |
| 62131125 | 125 | 27 | 30 | 125 | 125 | 18 | 3.75 | 8,000 |
| 62131150 | 150 | 30 | 30 | 150 | 150 | 20 | 5.75 | 10,000 |
| SS316 | SIZE | B (inch) | ØC (inch) | ØD (inch) | ØE (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 62131175 | 3" | 0.79 | 0.79 | 2.95 | 2.95 | 0.63 | 2.84 | 8,800 |
| 62131110 | 4" | 0.94 | 0.79 | 3.94 | 3.93 | 0.63 | 5.76 | 13,200 |
| 62131125 | 5" | 1.06 | 1.18 | 4.92 | 4.92 | 0.71 | 8.25 | 17,600 |
| 62131150 | 6" | 1.18 | 1.18 | 5.91 | 5.90 | 0.79 | 12.65 | 22,000 |
