Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Production: S212 - E1 - 75 Swivel eye - Cast
Sheave - Cast
Block - Cast
Surface Treatment: “E.P.” (Electro polished)
Note : Standard safety factor for working load
is 1/4 of breaking load.

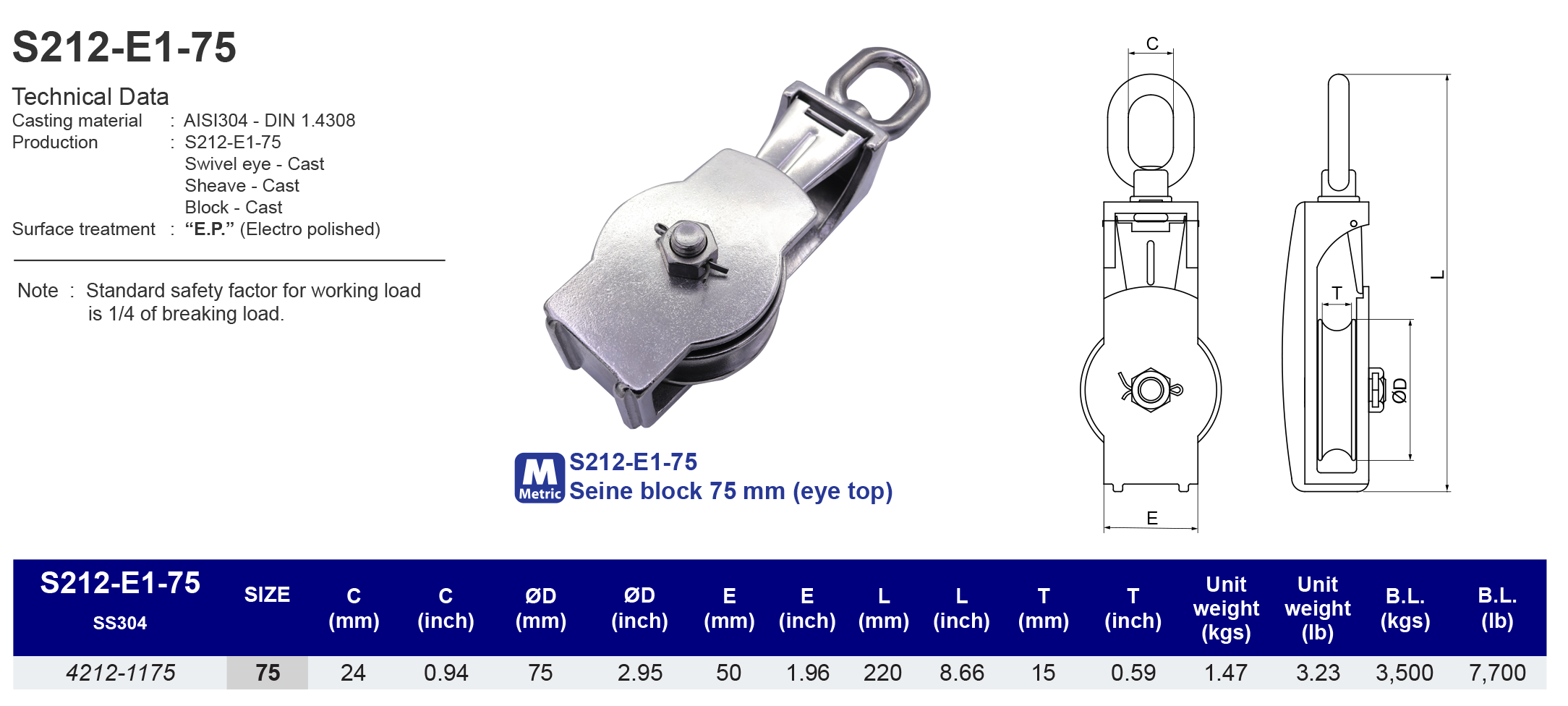

Model
S212-E1-75

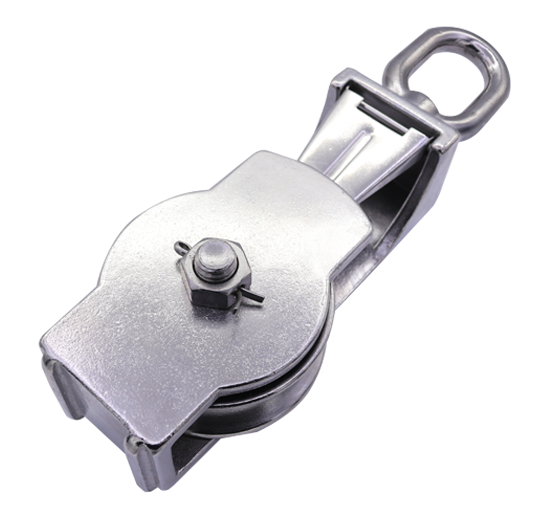

Seine block 75 mm (eye top)
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![S212-E1-75 drawing S212-E1-75 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S212-E1-75_DiagramV1.png)
![S212-E1-75 image S212-E1-75 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S212-E1-75_ImageV1.png)
SS304 | SIZE | C (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|
42121175 | 75 | 24 | 75 | 50 | 220 | 15 | 1.47 | 3,500 |
SS304 | SIZE | C (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|
42121175 | 3" | 0.94 | 2.95 | 1.96 | 8.66 | 0.59 | 3.23 | 7,700 |
