Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Forging Material: AISI304 - DIN 1.4301
Rod: AISI304 - DIN 1.4301
Production:
S211 - E2 - Swivel eye / Hook - Cast
Sheave - Cast
Block - Forged
Eye end - Rod
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

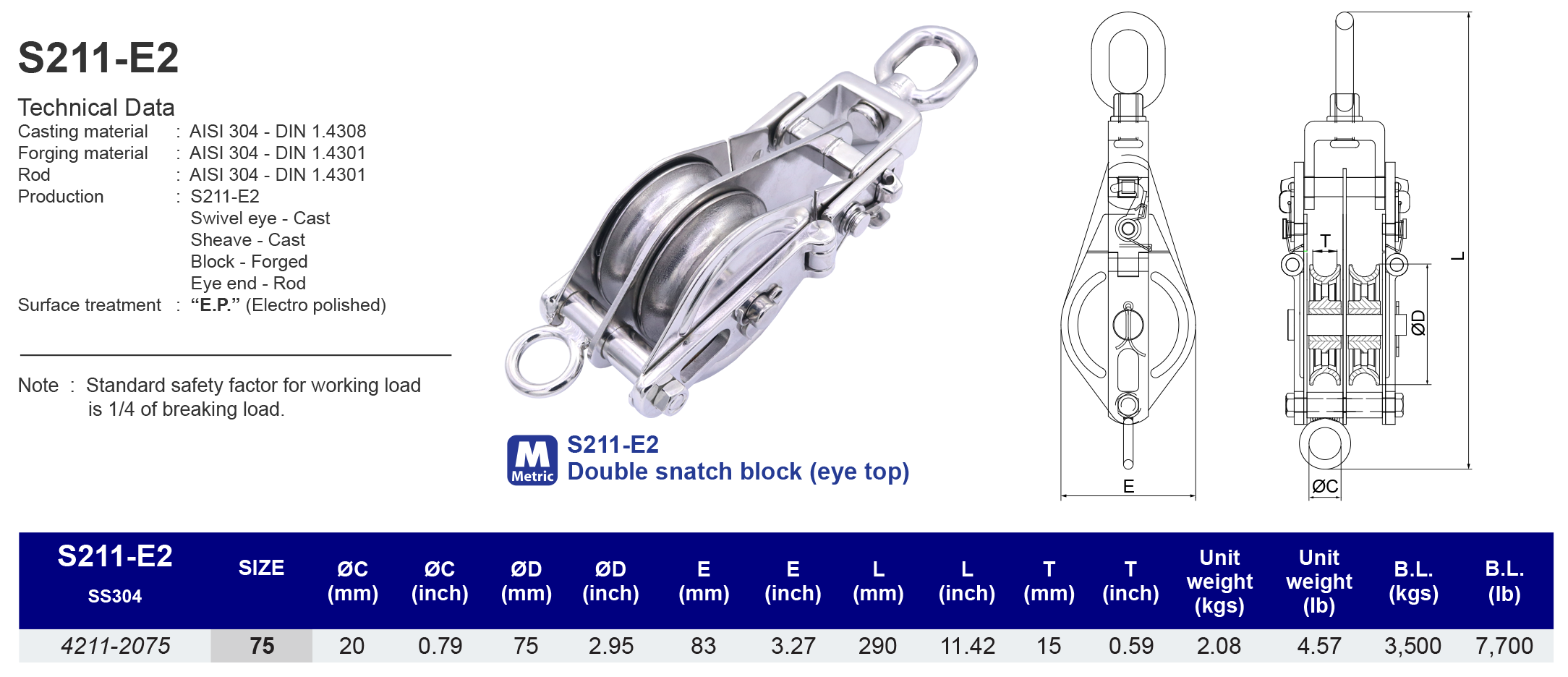

Model
S211-E2

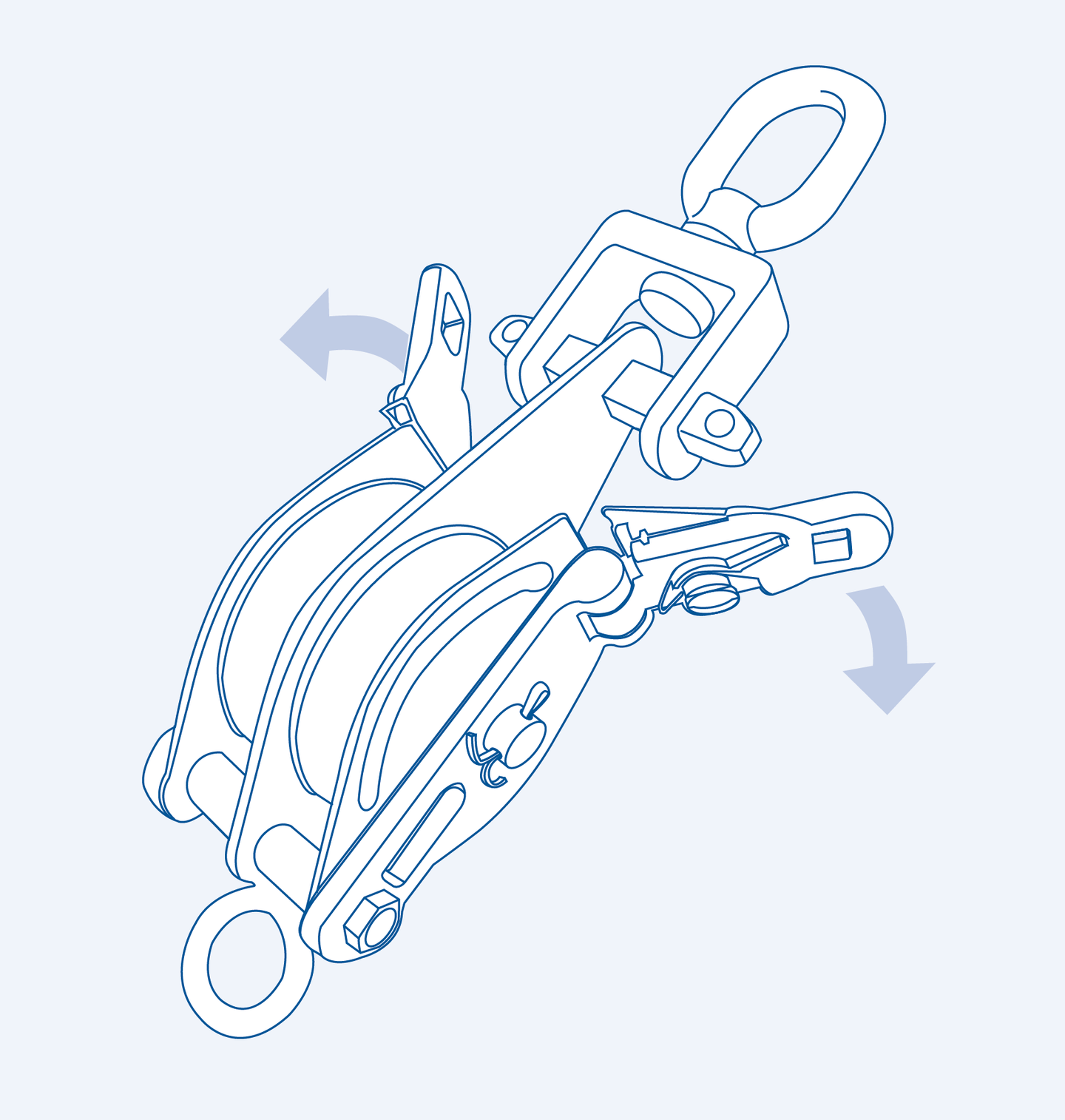

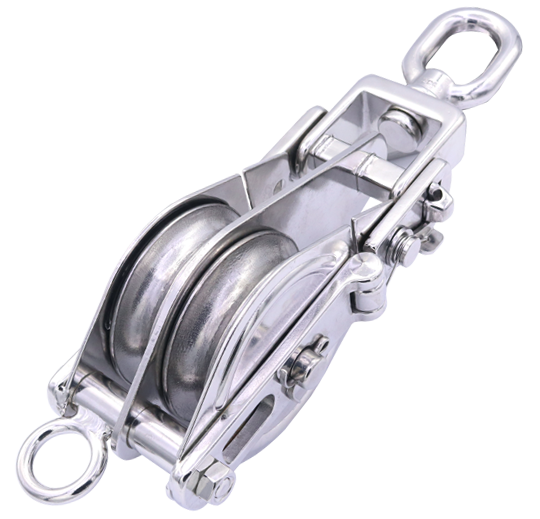

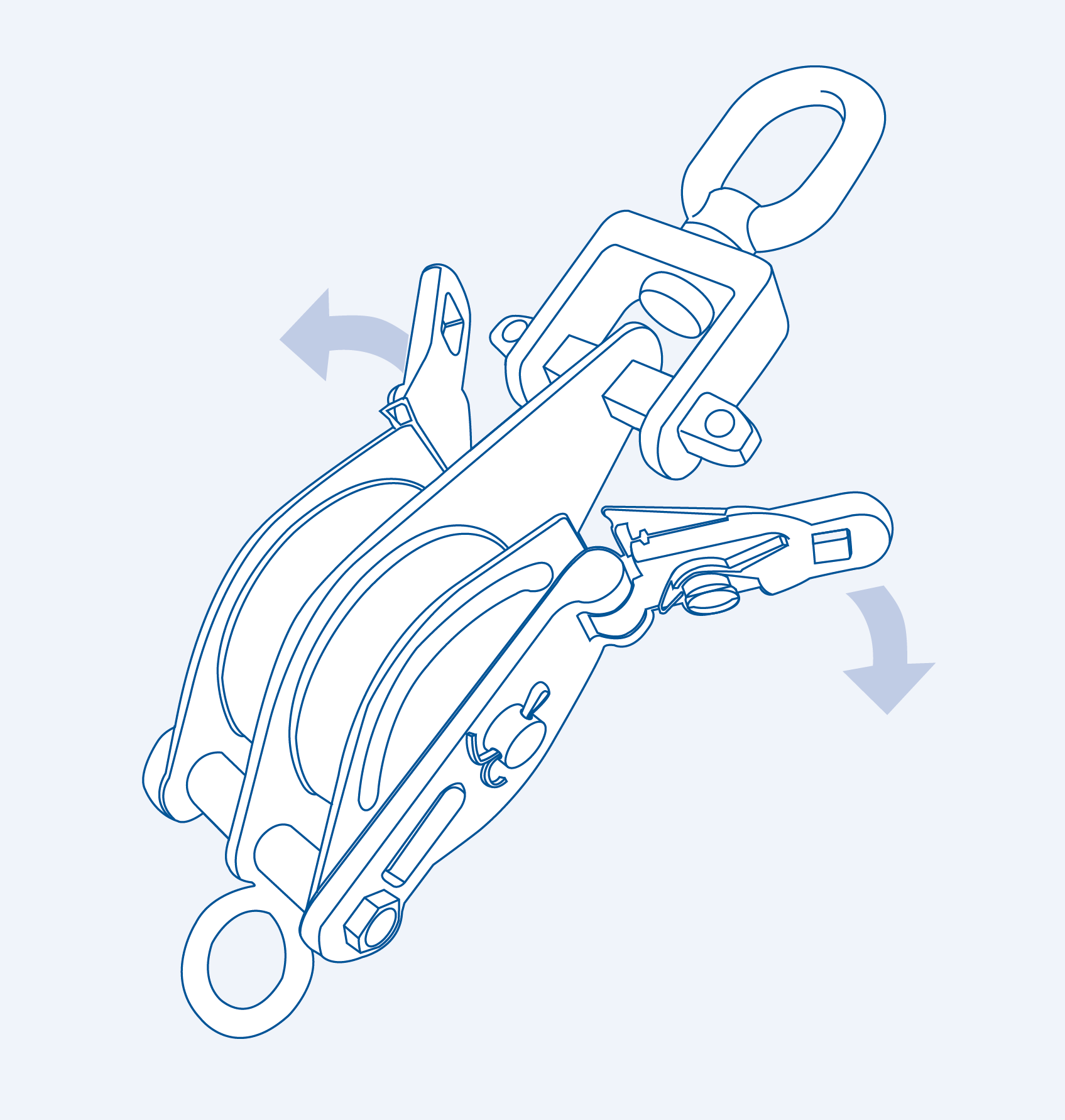

Double snatch block (eye top)
304 ss
![Kinzi 304 Kinzi 304](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/304-ss.png)
![S211-E2 drawing S211-E2 drawing](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S211-E2_DiagramV1.png)
![S211-E2 image S211-E2 image](https://cdn.shopify.com/s/files/1/0084/2475/1151/files/S211-E2_ImageV1.png)
SS304 | SIZE | ØC (mm) | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
---|---|---|---|---|---|---|---|---|
42112075 | 75 | 20 | 75 | 83 | 290 | 15 | 2.08 | 3,500 |
SS304 | SIZE | ØC (inch) | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
---|---|---|---|---|---|---|---|---|
42112075 | 3" | 0.79 | 2.95 | 3.27 | 11.42 | 0.59 | 4.57 | 7,700 |
