Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Forging Material: AISI304 - DIN 1.4301
Rod: AISI304 - DIN 1.4301
Production:
S211 - E1 - Swivel eye / Hook - Cast
Sheave - Cast
Block - Forged
Eye end - Rod
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

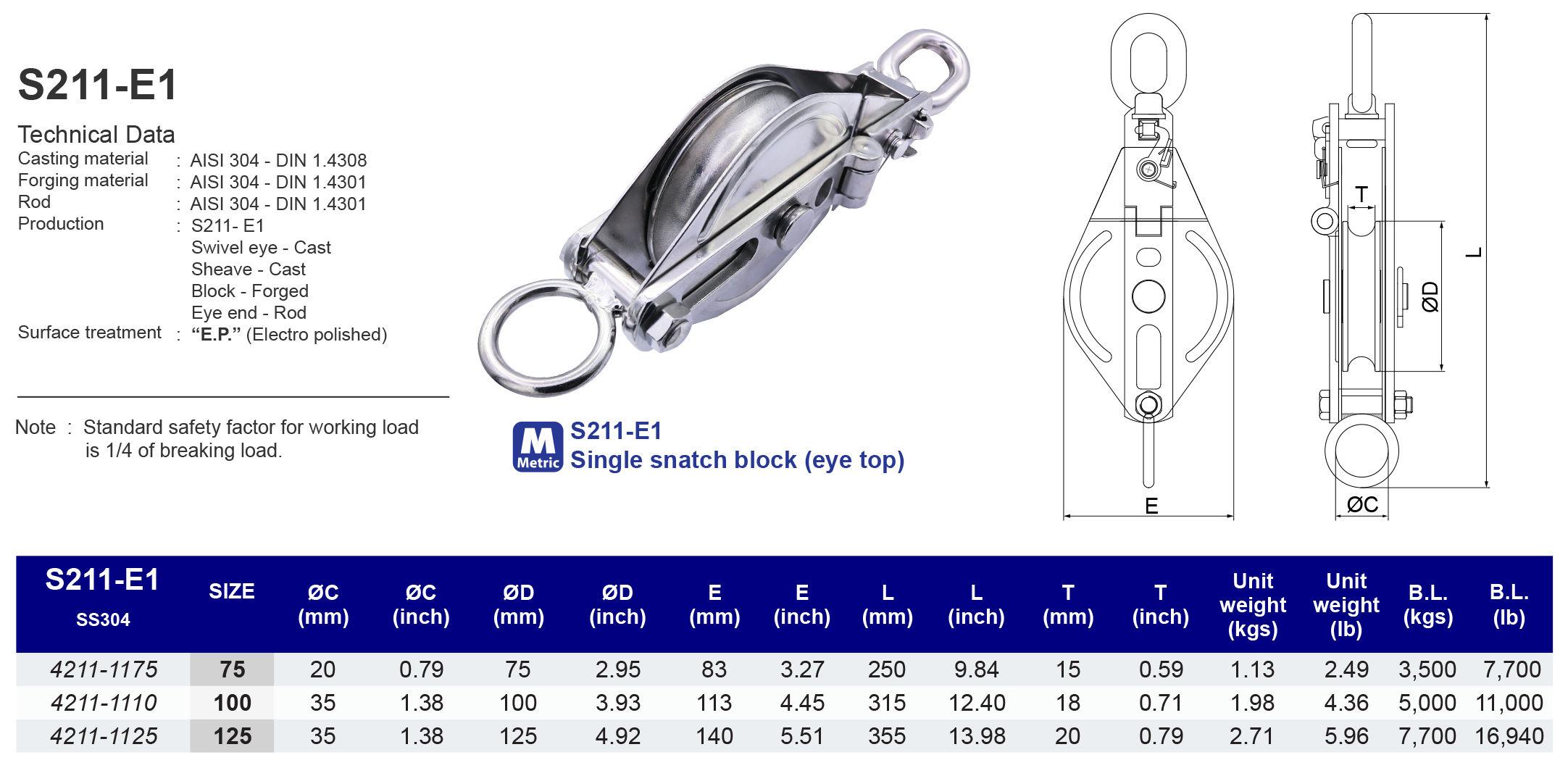

Model
S211-E1

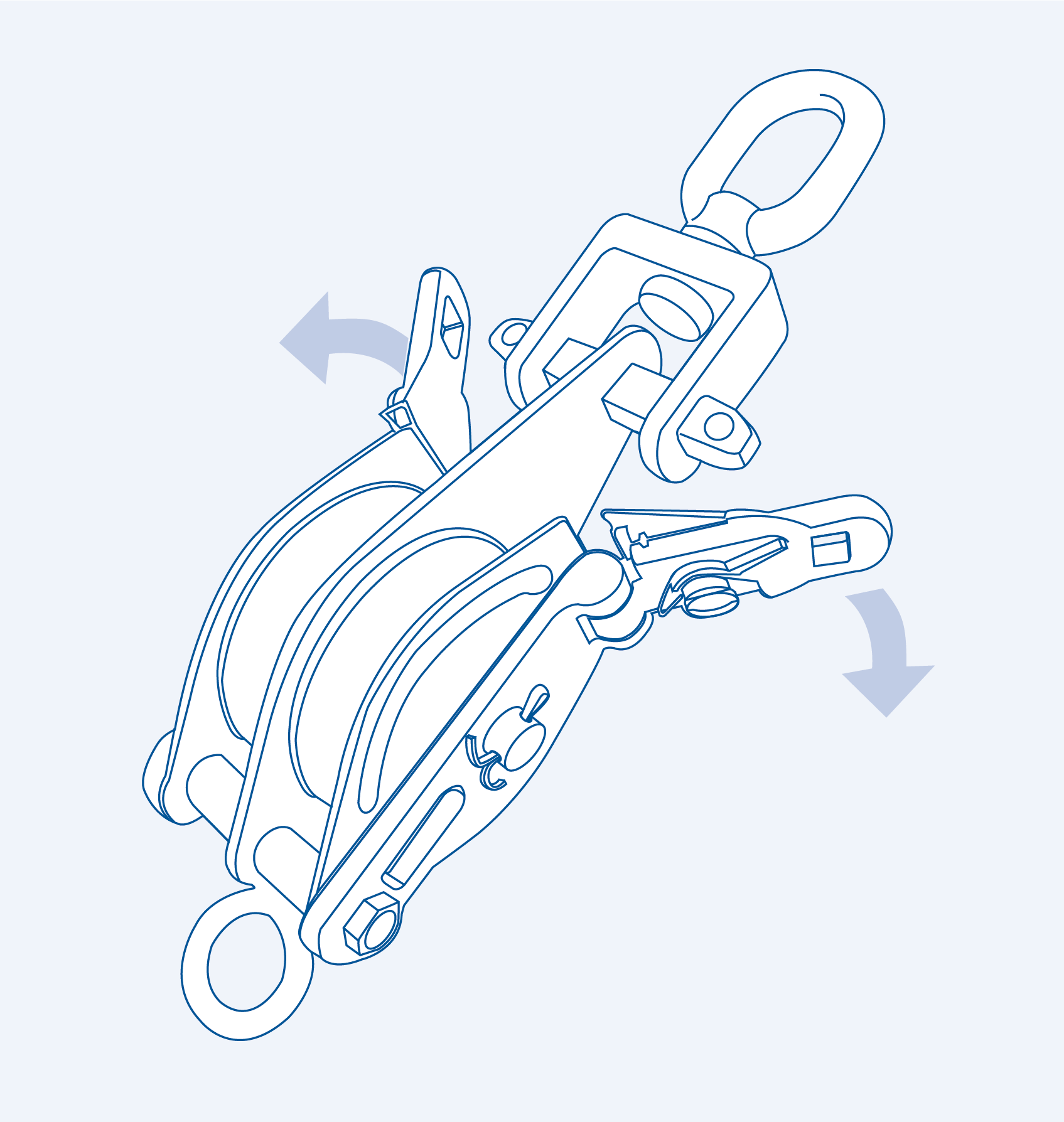

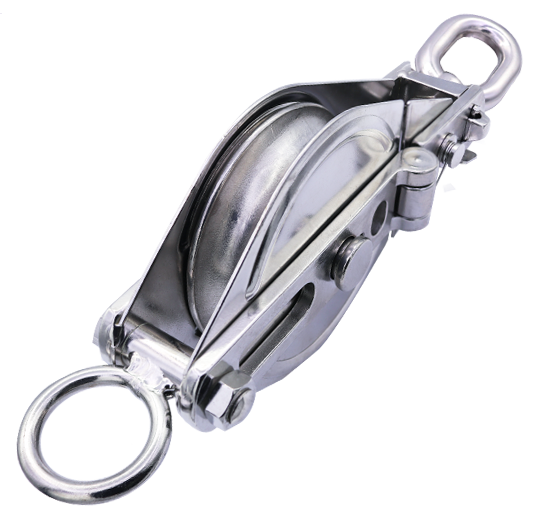

Single snatch block (eye top)
304 ss
| SS304 | SIZE | ØC (mm) | ØD (mm) | ØE (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 42111175 | 75 | 20 | 75 | 83 | 250 | 15 | 1.13 | 3,500 |
| 42111110 | 100 | 35 | 100 | 113 | 315 | 18 | 1.98 | 5,000 |
| 42111125 | 125 | 35 | 125 | 140 | 355 | 20 | 2.71 | 7,700 |
| SS304 | SIZE | ØC (inch) | ØD (inch) | ØE (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 42111175 | 3" | 0.79 | 2.95 | 3.27 | 9.84 | 0.59 | 2.49 | 7,700 |
| 42111110 | 4" | 1.38 | 3.93 | 4.45 | 12.4 | 0.71 | 4.36 | 11,000 |
| 42111125 | 5" | 1.38 | 4.92 | 5.51 | 13.98 | 0.79 | 5.96 | 16,940 |
