SKU: 42102175
Size: 100mm
Price:
$55.78

Looking for B2B pricing? Apply for a B2B account

Stock:
Sold out (Available to manufacture)
Log in to Add to Cart

Description

Technical Data:
Casting Material: AISI304 - DIN 1.4308
Forging Material: AISI304 - DIN 1.4301
Rod: AISI304 - DIN 1.4301
Production:
S210 - H1 - Hook - Cast
Sheave - Cast
Block - Forged
Eye end - Rod
Surface Treatment:“E.P.” (Electro polished) Note : Standard safety factor for working loadis 1/4 of breaking load. DATA SHEET DOWNLOAD

Model

S210-H1

Single heavy block (hook top)
304 ss

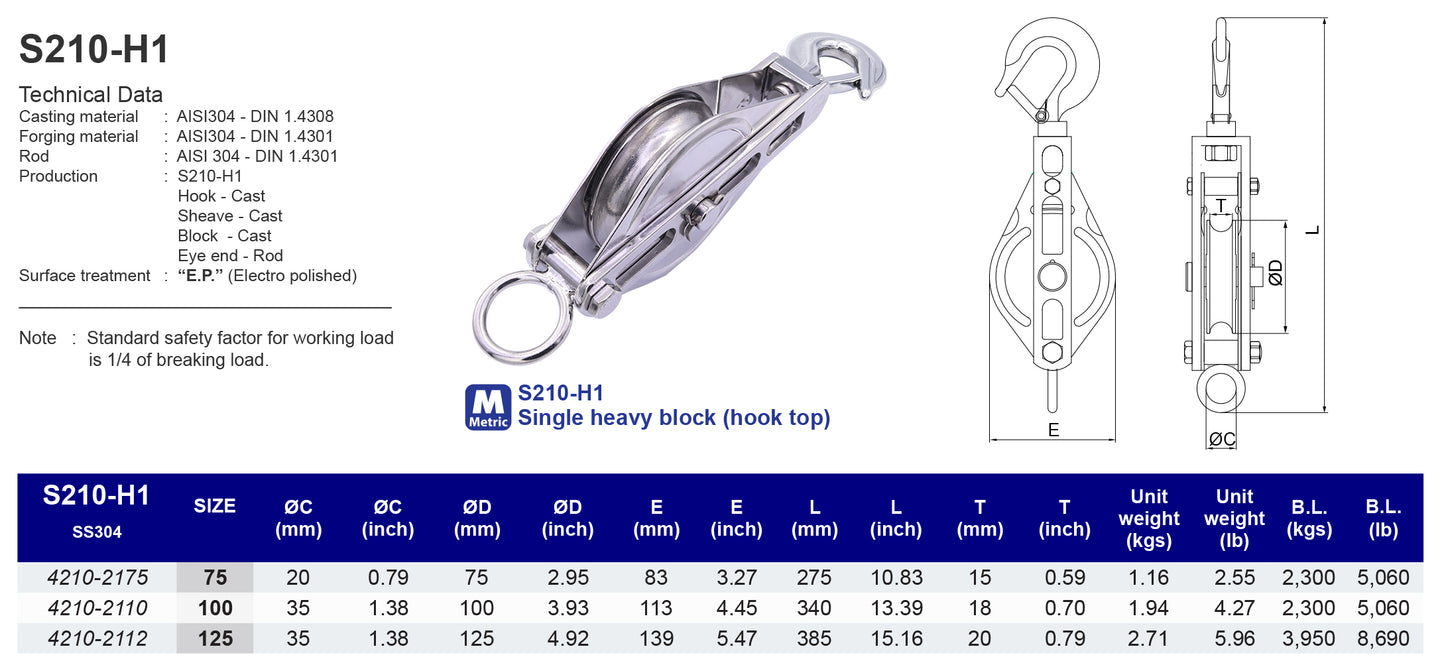

S210-H1 drawing

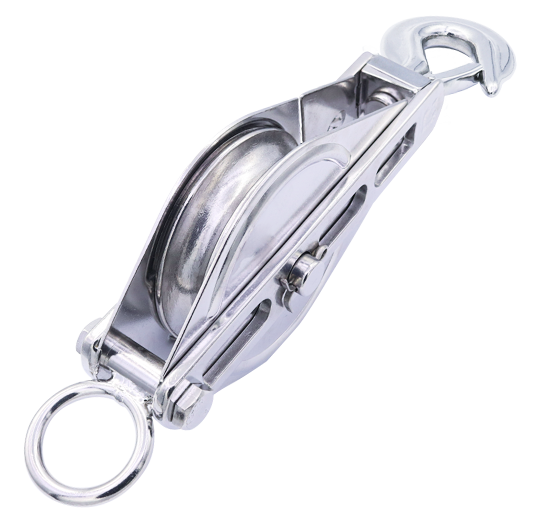

S210-H1 image
SS304SIZEØC (mm)ØD (mm)ØE (mm)L (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4210217575207583275151.162,300
4210211010035100113340181.942,300
4210211212535125139385202.713,950
SS304SIZEØC (inch)ØD (inch)ØE (inch)L (inch)T (inch)Unit weight (lb)B.L. (lb)
421021753"0.792.953.2710.830.592.555,060
421021104"1.383.934.4513.390.704.275,060
421021125"1.384.925.4715.160.795.968,690
