Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Welding Material: AISI304 - DIN 1.4301
Production:
S210 - E2 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Block (frame) - Cast
Eye end (Rod) - Cast
Surface Treatment: “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load. DATA SHEET DOWNLOAD

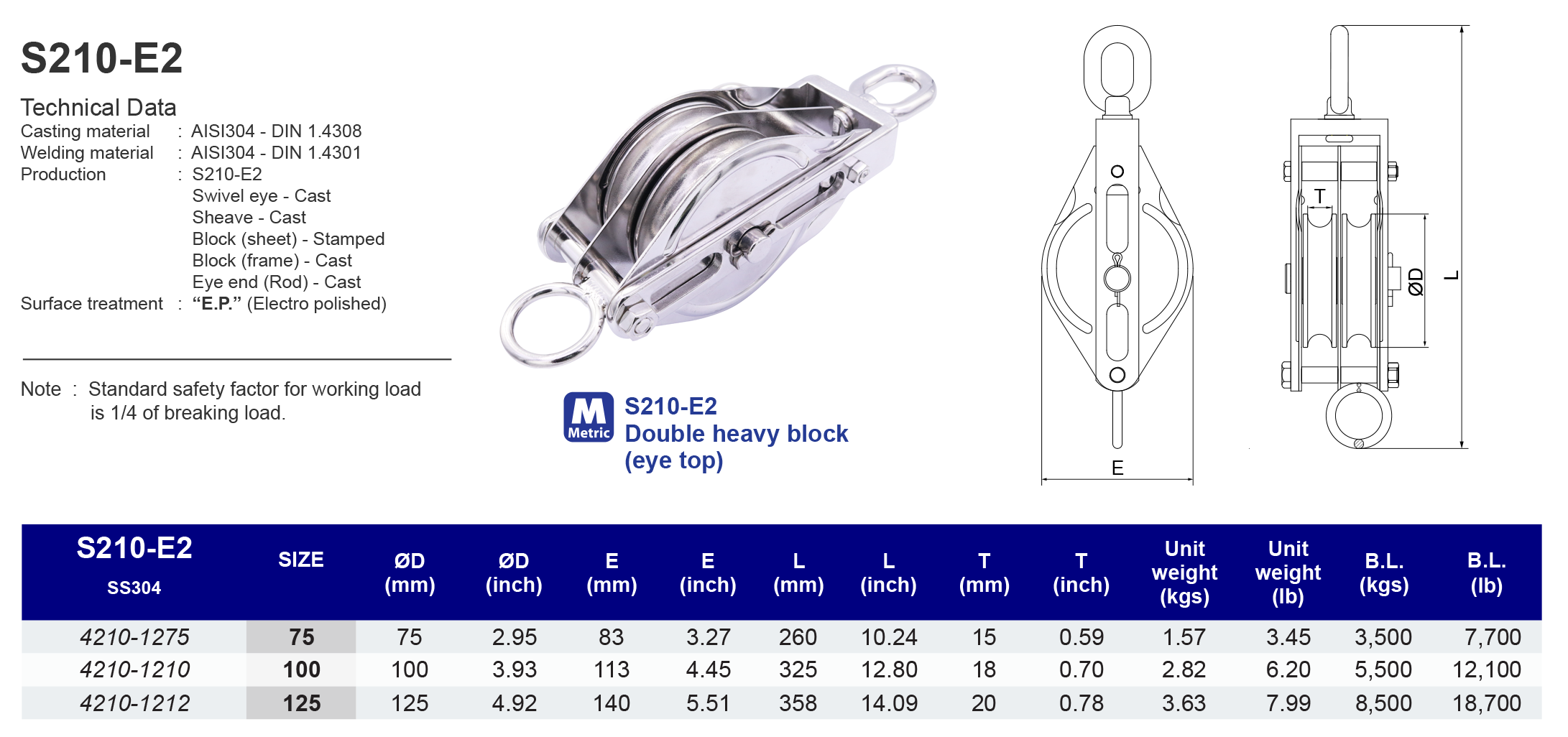

Model
S210-E2

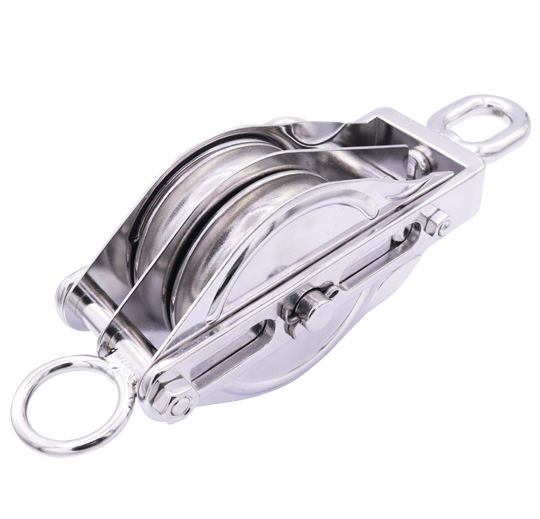

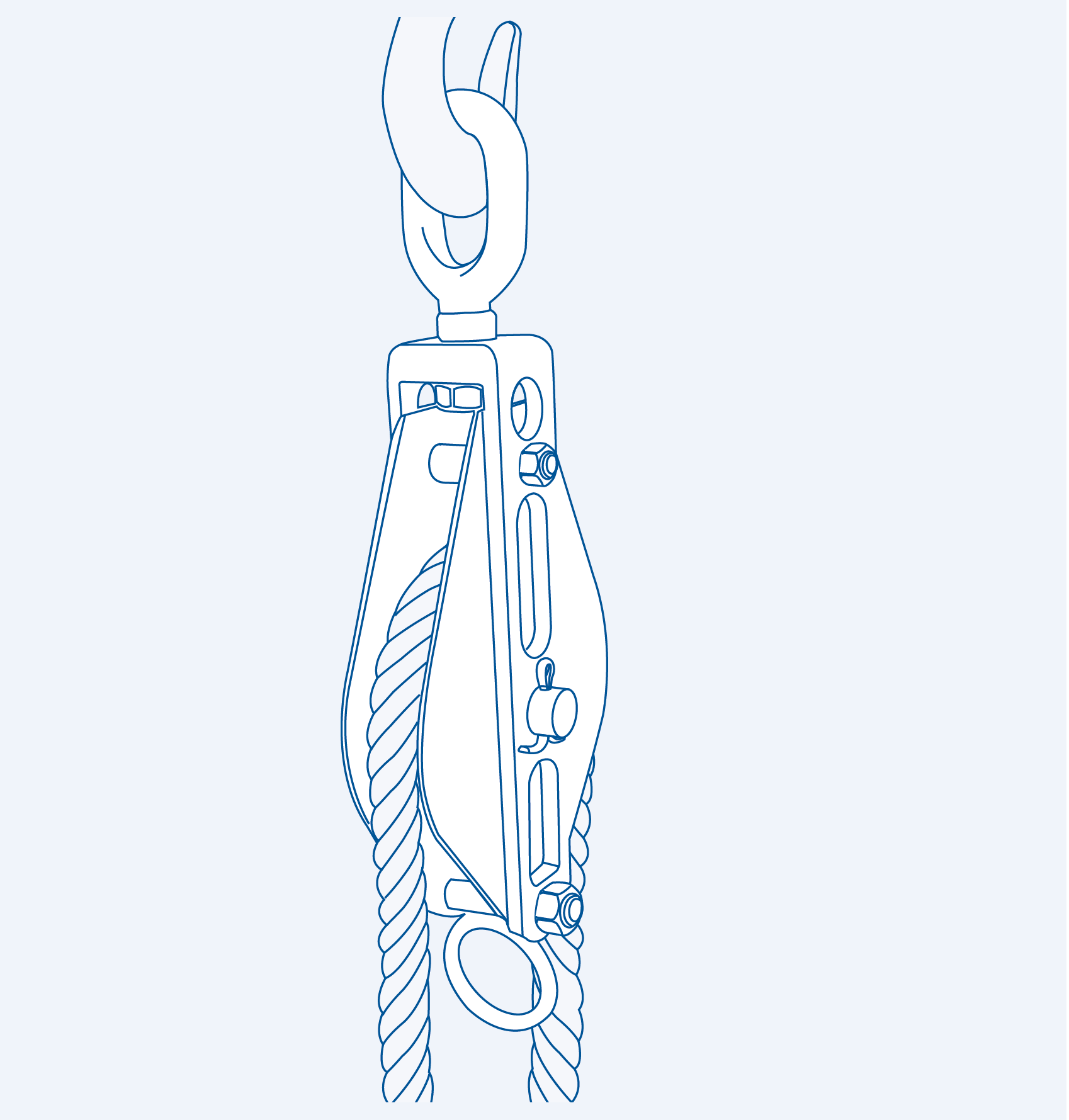

Double heavy block (eye top)
304 ss
| SS304 | SIZE | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42101275 | 75 | 75 | 83 | 260 | 15 | 1.57 | 3,500 |
| 42101210 | 100 | 100 | 113 | 325 | 18 | 2.82 | 5,500 |
| 42101212 | 125 | 125 | 140 | 358 | 20 | 3.63 | 8,500 |
| SS304 | SIZE | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42101275 | 3" | 2.95 | 3.27 | 10.24 | 0.59 | 3.45 | 7,700 |
| 42101210 | 4" | 3.93 | 4.45 | 12.8 | 0.70 | 6.20 | 12,100 |
| 42101212 | 5" | 4.92 | 5.51 | 14.09 | 0.78 | 7.99 | 18,700 |
