Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308
Welding Material: AISI304 - DIN 1.4301
Production: S210 - E1 - Swivel eye - Cast
Sheave - Cast
Block (sheet) - Stamped
Block (frame) - Cast
Eye end (Rod) - Cast
Surface Treatment:“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.

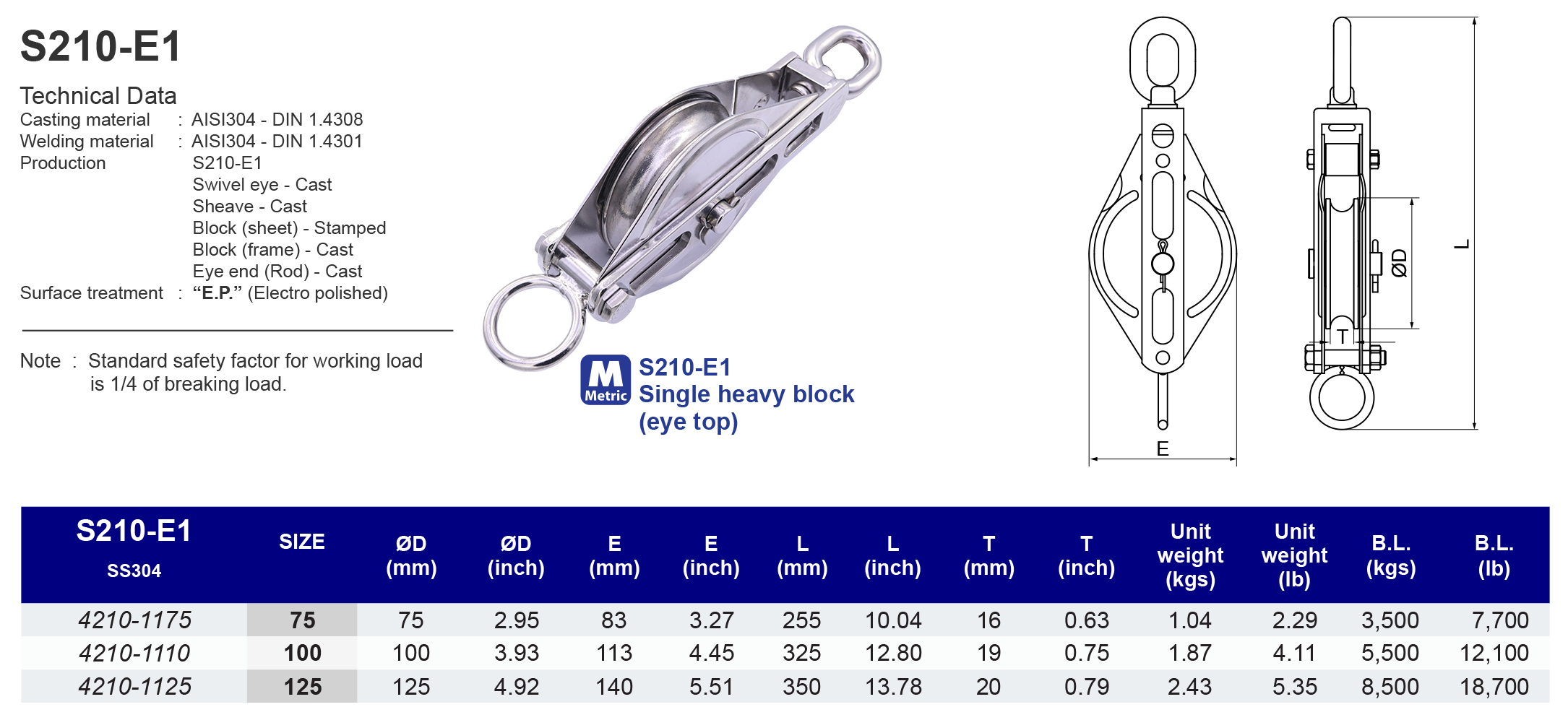

Model
S210-E1

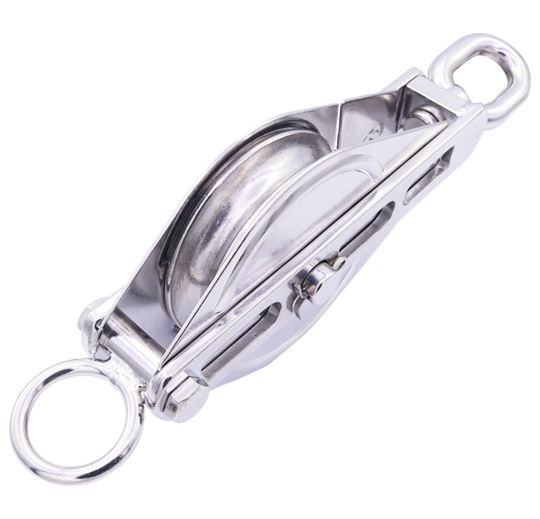

Single heavy block (eye top)
304 ss
| SS304 | SIZE | ØD (mm) | E (mm) | L (mm) | T (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|
| 42101175 | 75 | 75 | 83 | 255 | 16 | 1.04 | 3,500 |
| 42101110 | 100 | 100 | 113 | 325 | 19 | 1.87 | 5,500 |
| 42101125 | 125 | 125 | 140 | 350 | 20 | 2.43 | 8,500 |
| SS304 | SIZE | ØD (inch) | E (inch) | L (inch) | T (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|
| 42101175 | 3" | 2.95 | 3.27 | 10.04 | 0.63 | 2.29 | 7,700 |
| 42101110 | 4" | 3.93 | 4.45 | 12.8 | 0.75 | 4.11 | 12,100 |
| 42101125 | 5" | 4.92 | 5.51 | 13.78 | 0.79 | 5.35 | 18,700 |
