S10 C- link - 304 (CLEARANCE SALE)

SKU: 41000008

Size: 8mm (Min 149pcs)
Price:

Login to view the price.

Stock:
Login to view stock.

Description









Technical Data:
Casting Material:
AISI304 - DIN 1.4308/
AISI316 - DIN 1.4408
Production:
S10 - Link - Cast
Surface Treatment:
“E.P.” (Electro polished)                                                                                                      Note : Standard safety factor for working load
is 1/4 of breaking load.


DATA SHEET DOWNLOAD

Model

S10

C - link
304 ss

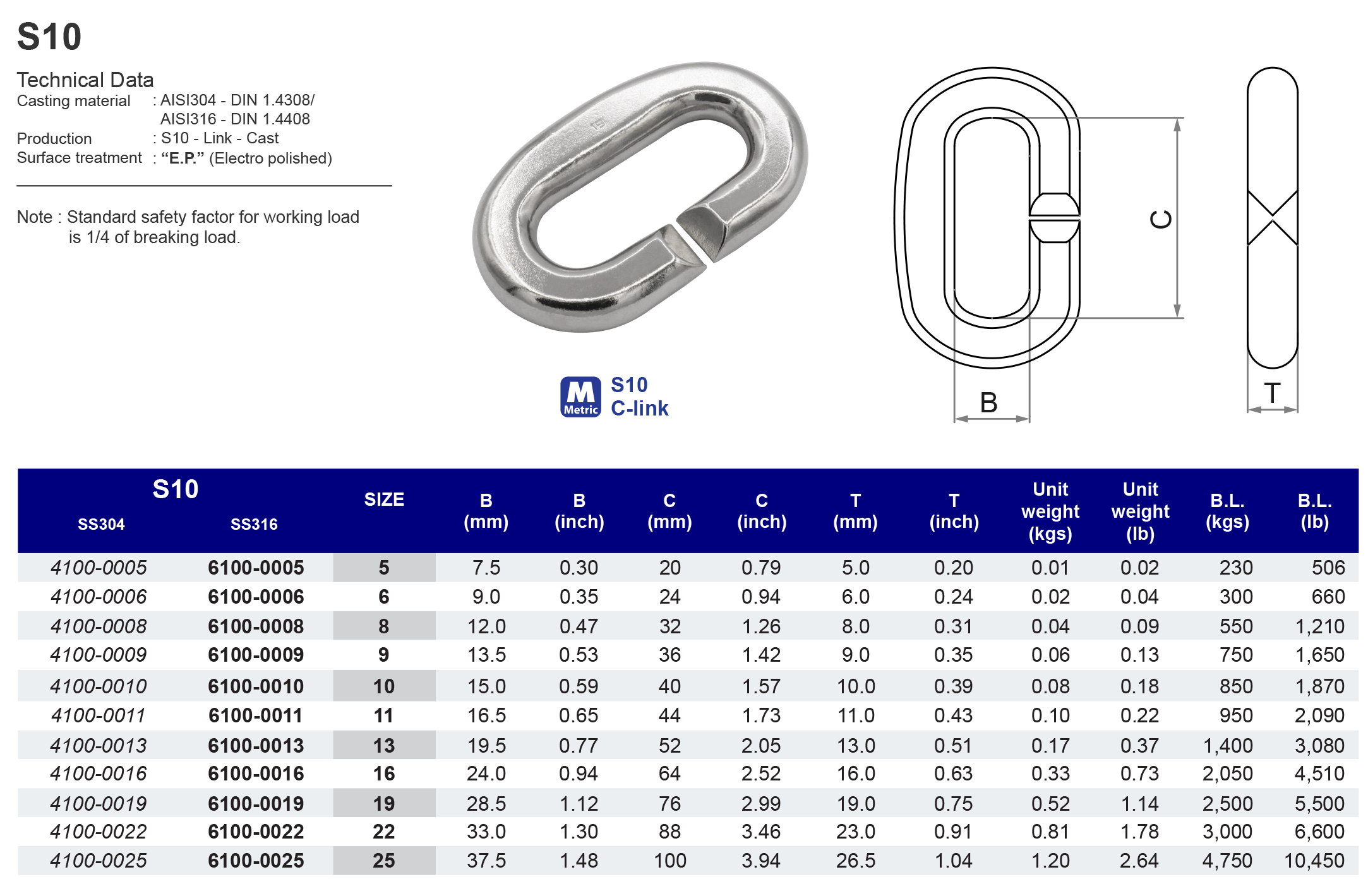

S10 drawing

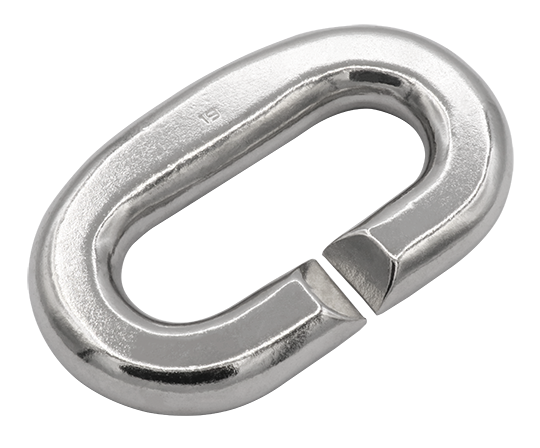

S10 image
SS304SIZEB (mm)C (mm)T (mm)Unit weight (kgs)B.L. (kgs)
4100000557.52050.01230
41000006692460.02300
410000088123280.04550
41000009913.53690.06750
41000010101540100.08850
410000111116.544110.10950
410000131319.552130.171,400
41000016162464160.332,050
410000191928.576190.522,500
41000022223388230.813,000
410000252537.510026.51.204,750
SS304SIZEB (inch)C (inch)T (inch)Unit weight (lb)B.L. (lb)
410000053/16"0.300.790.200.02506
410000061/4"0.350.940.240.04660
410000085/16"0.471.260.310.091,210
4100000911/32"0.531.420.350.131,650
410000103/8"0.591.570.390.181,870
410000117/16"0.651.730.430.222,090
410000131/2"0.772.050.510.373,080
410000165/8"0.942.520.630.734,510
410000193/4"1.122.990.751.145,500
410000227/8"1.303.460.911.786,600
410000251"1.483.941.042.6410,450
