Description
Technical Data:
Casting Material: AISI304 - DIN 1.4308/AISI316 - DIN 1.4408
Forging Material: AISI304 - DIN 1.4401/AISI316 - DIN 1.4301
Production: S0182 - Swivel - Cast
Pin - Forged
Surface Treatment:“E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load

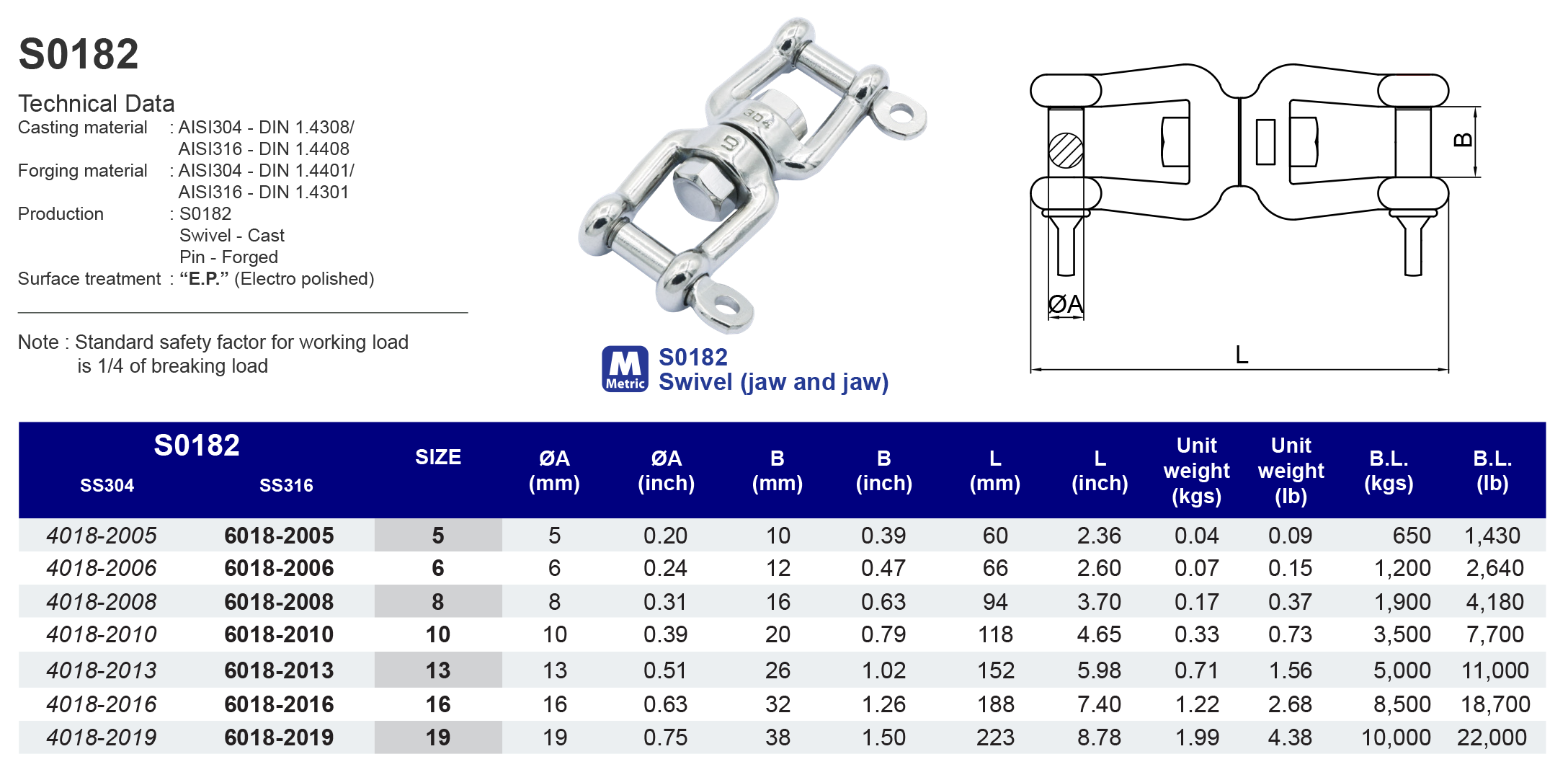

Model
S0182
Swivel (jaw and jaw)
304 ss
| SS304 | Size | ØA (mm) | B (mm) | L (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 40182005 | 5 | 5 | 10 | 60 | 0.04 | 650 |
| 40182006 | 6 | 6 | 12 | 66 | 0.07 | 1,200 |
| 40182008 | 8 | 8 | 16 | 94 | 0.17 | 1,900 |
| 40182010 | 10 | 10 | 20 | 118 | 0.33 | 3,500 |
| 40182013 | 13 | 13 | 26 | 152 | 0.71 | 5,000 |
| 40182016 | 16 | 16 | 32 | 188 | 1.22 | 8,500 |
| 40182019 | 19 | 19 | 38 | 223 | 1.99 | 10,000 |
| SS304 | Size | ØA (inch) | B (inch) | L (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 40182005 | 3/16" | 0.20 | 0.39 | 2.36 | 0.09 | 1,430 |
| 40182006 | 1/4" | 0.24 | 0.47 | 2.60 | 0.15 | 2,640 |
| 40182008 | 5/16" | 0.31 | 0.63 | 3.70 | 0.37 | 4,180 |
| 40182010 | 3/8" | 0.39 | 0.79 | 4.65 | 0.73 | 7,700 |
| 40182013 | 1/2" | 0.51 | 1.02 | 5.98 | 1.56 | 11,000 |
| 40182016 | 5/8" | 0.63 | 1.26 | 7.40 | 2.68 | 18,700 |
| 40182019 | 3/4" | 0.75 | 1.50 | 8.78 | 4.38 | 22,000 |
