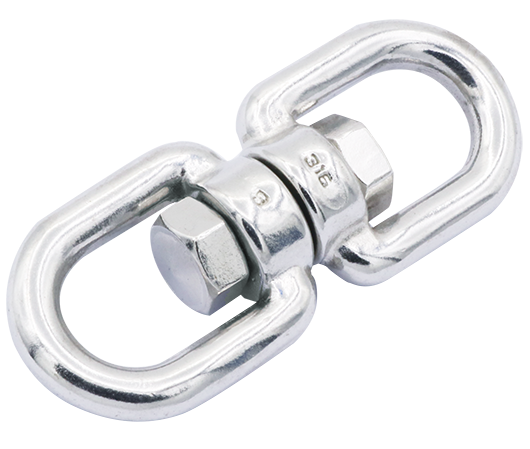

S018 Swivel (eye and eye)

Technical Data:
Casting Material: AISI304 - DIN 1.4308/
                           AISI316 - DIN 1.4408
Production: S018 - Swivel - Cast
Surface Treatment: “E.P” (Electro polished)                                                                            Note : Standard safety factor for working load
is 1/4 of breaking load

DATA SHEET DOWNLOAD
