Description
Technical Data:
Fork : Casting Duplex (Grade 4A)
Lock Nut : Casting material
: AISI316, EN 1.4408
Pin : Bar 316
Surface treatment : “M.F.” (Matte finished) M16-M45
“G.F.” (Gloss finished) M56-M100
MBL : Minimum Breaking Load before cable assembly.
Limit Tension : Recommended maximum load for a tension
member. All other applications should
consider ¼ of MBL*.

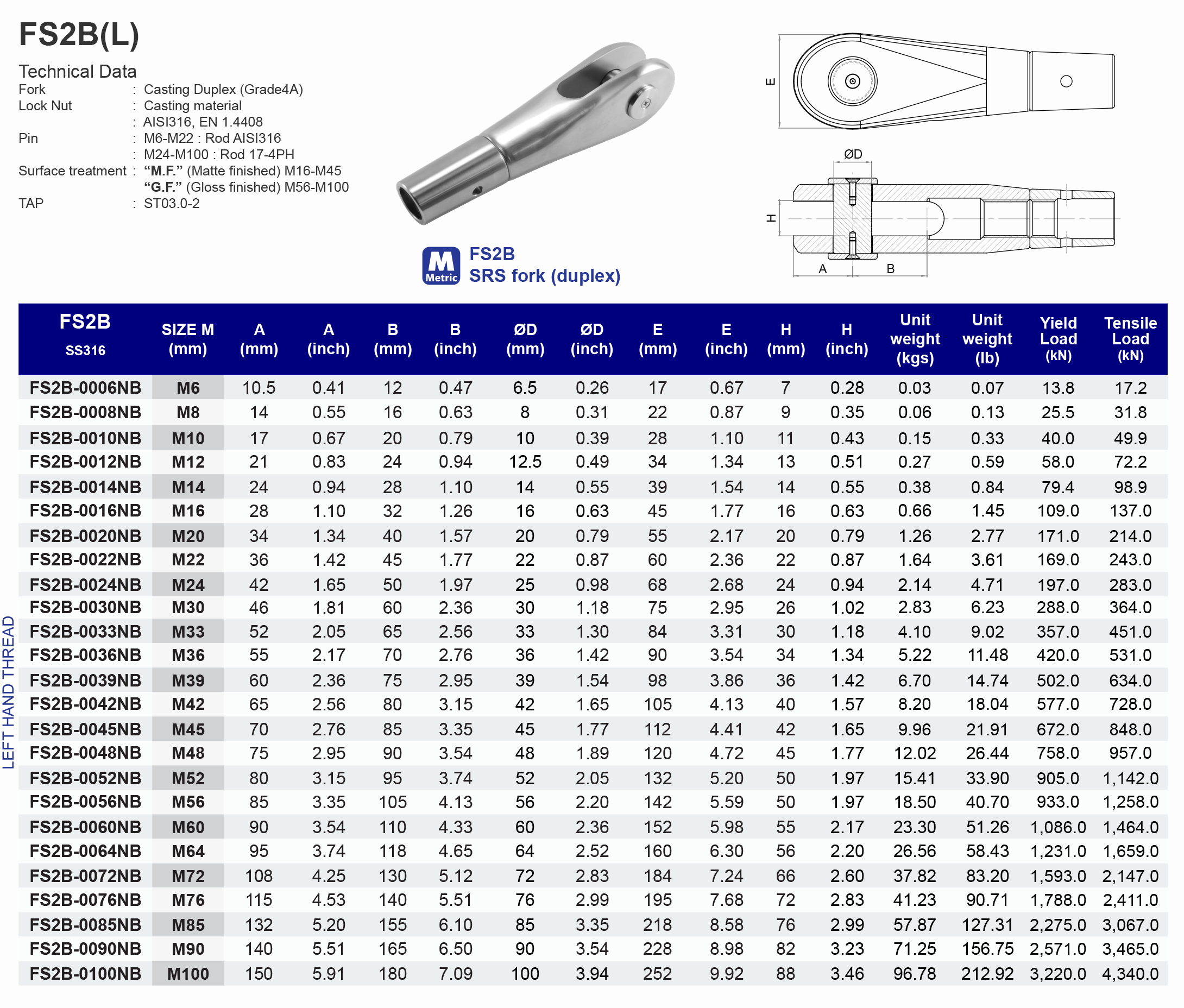

DATA SHEET DOWNLOAD
Model

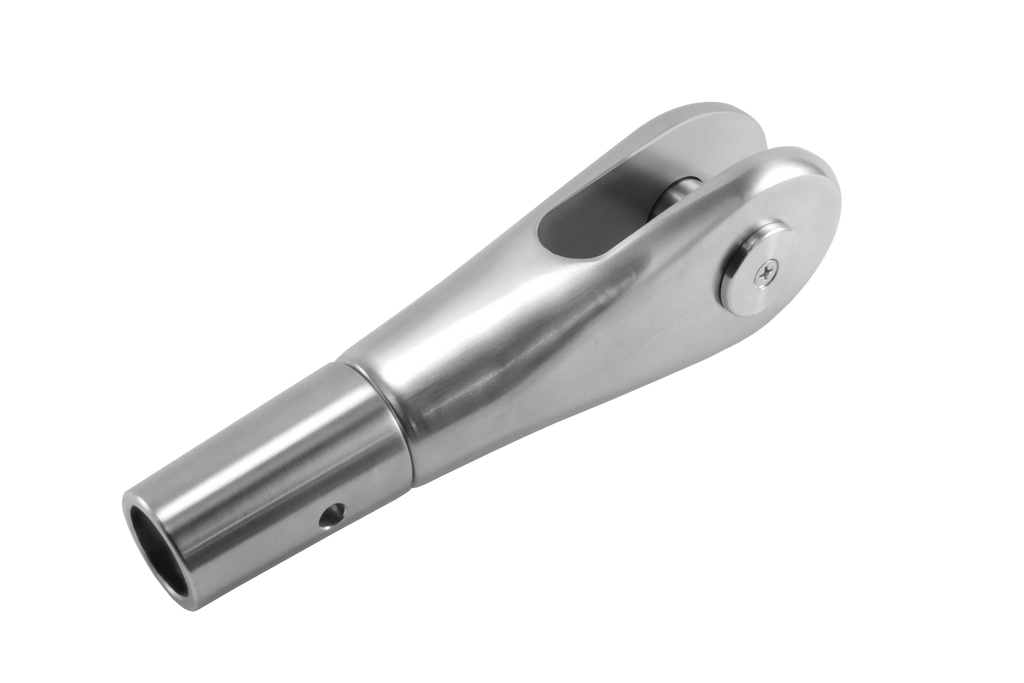

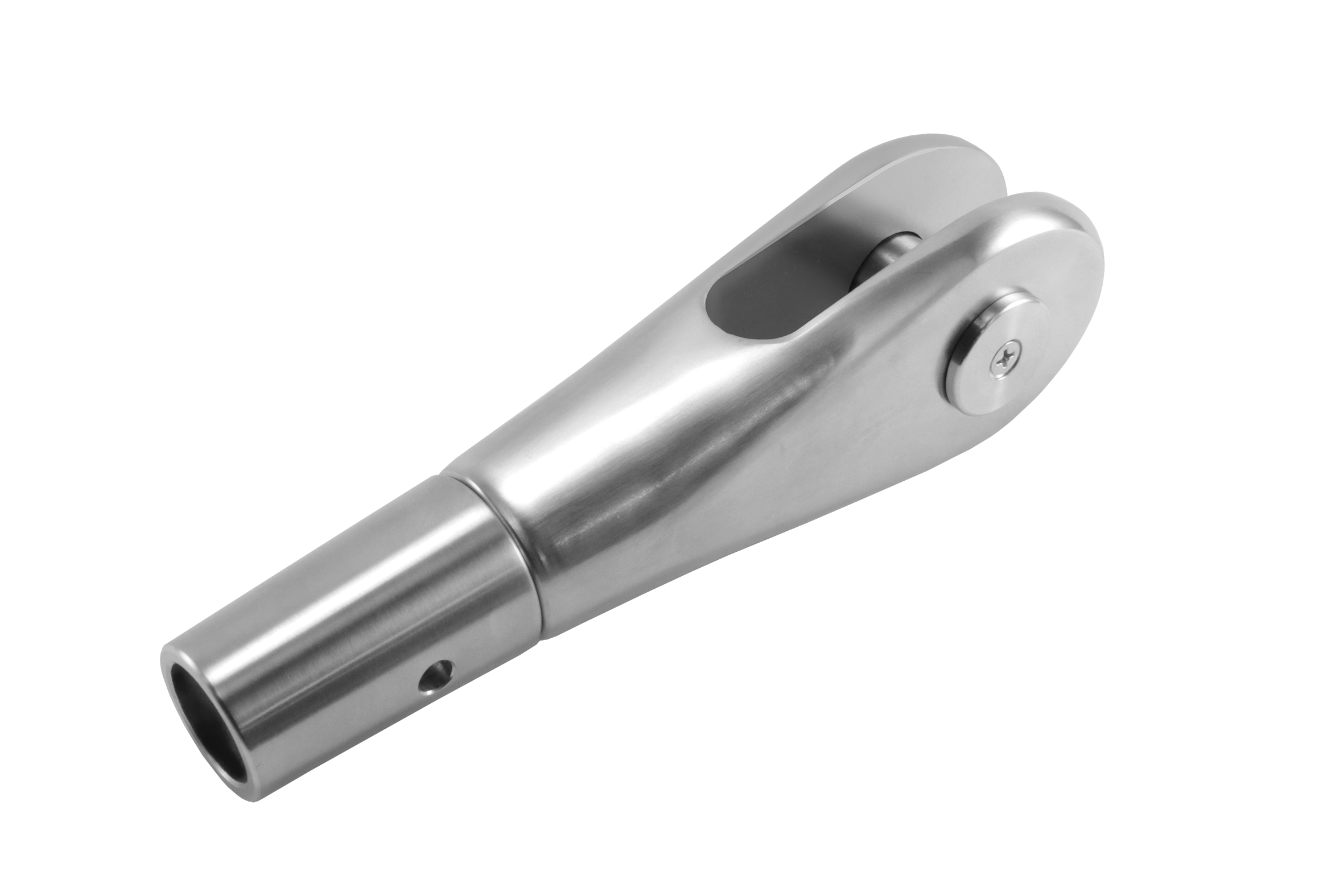

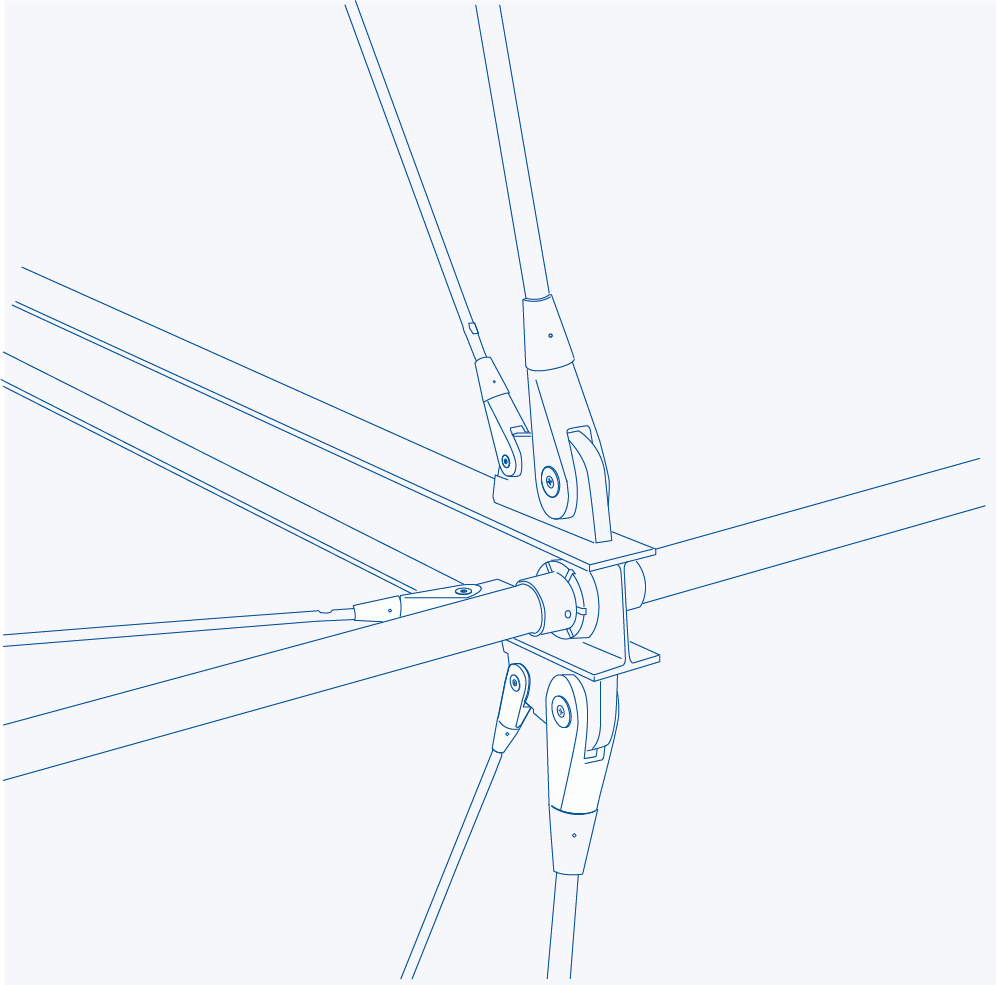

FS2B(L)
SRS Fork (Duplex)
Duplex ss
| SS316 | SIZE M (mm) | A (mm) | B (mm) | ØD (mm) | E (mm) | H (mm) | Unit weight (kgs) | Limit Tension (kN) | MBL (kN) |
|---|---|---|---|---|---|---|---|---|---|
| FS2B0006NB | M6 | 9 | 12 | 6.5 | 17 | 7 | 0.03 | 6 | 13 |
| FS2B0008NB | M8 | 12 | 16 | 8 | 22 | 9 | 0.06 | 11 | 23 |
| FS2B0010NB | M10 | 15 | 20 | 10 | 28 | 11 | 0.15 | 18 | 36 |
| FS2B0012NB | M12 | 18 | 30.5 | 12.5 | 34 | 13 | 0.27 | 26 | 52 |
| FS2B0014NB | M14 | 22 | 28 | 14 | 39 | 14 | 0.38 | 35.7 | 71.3 |
| FS2B0016NB | M16 | 28 | 32 | 16 | 45 | 16 | 0.67 | 44 | 87 |
| FS2B0020NB | M20 | 34 | 40 | 20 | 55 | 20 | 1.26 | 68 | 137 |
| FS2B0022NB | M22 | 36 | 45 | 22 | 60 | 22 | 1.67 | 84 | 169 |
| FS2B0024NB | M24 | 42 | 50 | 25 | 68 | 24 | 2.12 | 98 | 197 |
| FS2B0030NB | M30 | 46 | 60 | 30 | 75 | 26 | 2.82 | 157 | 314 |
| FS2B0033NB | M33 | 52 | 65 | 33 | 84 | 30 | 4.15 | 194 | 388 |
| FS2B0036NB | M36 | 55 | 70 | 36 | 90 | 34 | 5.26 | 228 | 457 |
| FS2B0039NB | M39 | 60 | 75 | 39 | 98 | 36 | 6.74 | 273 | 546 |
| FS2B0042NB | M42 | 65 | 80 | 42 | 105 | 40 | 8.14 | 313 | 627 |
| FS2B0045NB | M45 | 70 | 85 | 45 | 112 | 42 | 9.96 | 365 | 731 |
| FS2B0048NB | M48 | 75 | 90 | 48 | 120 | 45 | 12.38 | 412 | 824 |
| FS2B0052NB | M52 | 80 | 95 | 52 | 132 | 50 | 15.54 | 492 | 984 |
| FS2B0056NB | M56 | 85 | 105 | 56 | 142 | 50 | 18.51 | 568 | 1,136.00 |
| FS2B0060NB | M60 | 90 | 110 | 60 | 152 | 55 | 23.25 | 661 | 1,322.00 |
| FS2B0064NB | M64 | 95 | 118 | 64 | 160 | 56 | 26.92 | 749 | 1,498.00 |
| FS2B0068NB | M68 | 100 | 125 | 68 | 174 | 61 | 31.88 | 855 | 1,710.00 |
| FS2B0072NB | M72 | 108 | 130 | 72 | 184 | 66 | 37.82 | 969 | 1,939.00 |
| FS2B0076NB | M76 | 115 | 140 | 76 | 195 | 72 | 41.23 | 1,088.00 | 2,177.00 |
| FS2B0080NB | M80 | 122 | 145 | 80 | 205 | 72 | 48.60 | 1,216.00 | 2,432.00 |
| FS2B0085NB | M85 | 132 | 155 | 85 | 218 | 76 | 57.87 | 1,385.00 | 2,770.00 |
| FS2B0090NB | M90 | 140 | 165 | 90 | 228 | 82 | 71.25 | 1,565.00 | 3,130.00 |
| FS2B0100NB | M100 | 150 | 180 | 100 | 252 | 88 | 96.78 | 1,960.00 | 3,920.00 |
| SS316 | SIZE M (mm) | A (inch) | B (inch) | ØD (inch) | E (inch) | H (inch) | Unit weight (lb) | Limit Tension (kN) | MBL (kN) |
|---|---|---|---|---|---|---|---|---|---|
| FS2B0006NB | M6 | 0.35 | 0.47 | 0.26 | 0.67 | 0.28 | 0.07 | 6 | 13 |
| FS2B0008NB | M8 | 0.47 | 0.63 | 0.31 | 0.87 | 0.35 | 0.13 | 11 | 23 |
| FS2B0010NB | M10 | 0.59 | 0.79 | 0.39 | 1.1 | 0.43 | 0.33 | 18 | 36 |
| FS2B0012NB | M12 | 0.71 | 1.2 | 0.49 | 1.34 | 0.51 | 0.59 | 26 | 52 |
| FS2B0014NB | M14 | 0.87 | 1.1 | 0.55 | 1.54 | 0.55 | 0.84 | 35.7 | 71.3 |
| FS2B0016NB | M16 | 1.1 | 1.26 | 0.63 | 1.77 | 0.63 | 1.47 | 44 | 87 |
| FS2B0020NB | M20 | 1.34 | 1.57 | 0.79 | 2.17 | 0.79 | 2.77 | 68 | 137 |
| FS2B0022NB | M22 | 1.42 | 1.77 | 0.87 | 2.36 | 0.87 | 3.67 | 84 | 169 |
| FS2B0024NB | M24 | 1.65 | 1.97 | 0.98 | 2.68 | 0.94 | 4.66 | 98 | 197 |
| FS2B0030NB | M30 | 1.81 | 2.36 | 1.18 | 2.95 | 1.02 | 6.20 | 157 | 314 |
| FS2B0033NB | M33 | 2.05 | 2.56 | 1.3 | 3.31 | 1.18 | 9.13 | 194 | 388 |
| FS2B0036NB | M36 | 2.17 | 2.76 | 1.42 | 3.54 | 1.34 | 11.57 | 228 | 457 |
| FS2B0039NB | M39 | 2.36 | 2.95 | 1.54 | 3.86 | 1.42 | 14.83 | 273 | 546 |
| FS2B0042NB | M42 | 2.56 | 3.15 | 1.65 | 4.13 | 1.57 | 17.91 | 313 | 627 |
| FS2B0045NB | M45 | 2.76 | 3.35 | 1.77 | 4.41 | 1.65 | 21.91 | 365 | 731 |
| FS2B0048NB | M48 | 2.95 | 3.54 | 1.89 | 4.72 | 1.77 | 27.24 | 412 | 824 |
| FS2B0052NB | M52 | 3.15 | 3.74 | 2.05 | 5.2 | 1.97 | 34.19 | 492 | 984 |
| FS2B0056NB | M56 | 3.35 | 4.13 | 2.2 | 5.59 | 1.97 | 40.72 | 568 | 1,136.00 |
| FS2B0060NB | M60 | 3.54 | 4.33 | 2.36 | 5.98 | 2.17 | 51.15 | 661 | 1,322.00 |
| FS2B0064NB | M64 | 3.74 | 4.65 | 2.52 | 6.3 | 2.2 | 59.22 | 749 | 1,498.00 |
| FS2B0068NB | M68 | 3.94 | 4.92 | 2.68 | 6.85 | 2.4 | 70.14 | 855 | 1,710.00 |
| FS2B0072NB | M72 | 4.25 | 5.12 | 2.83 | 7.24 | 2.6 | 83.2 | 969 | 1,939.00 |
| FS2B0076NB | M76 | 4.53 | 5.51 | 2.99 | 7.68 | 2.83 | 90.71 | 1,088.00 | 2,177.00 |
| FS2B0080NB | M80 | 4.8 | 5.71 | 3.15 | 8.07 | 2.83 | 106.92 | 1,216.00 | 2,432.00 |
| FS2B0085NB | M85 | 5.2 | 6.1 | 3.35 | 8.58 | 2.99 | 127.31 | 1,385.00 | 2,770.00 |
| FS2B0090NB | M90 | 5.51 | 6.5 | 3.54 | 8.98 | 3.23 | 156.75 | 1,565.00 | 3,130.00 |
| FS2B0100NB | M100 | 5.91 | 7.09 | 3.94 | 9.92 | 3.46 | 212.92 | 1,960.00 | 3,920.00 |
