Description
Technical Data:
Casting Material:
AISI316 - DIN 1.4408
Production:
DIN444 - Bolt - Cast
SFDIN444 - Bolt - Forged
Surface Treatment:
Electro polished / Passivated

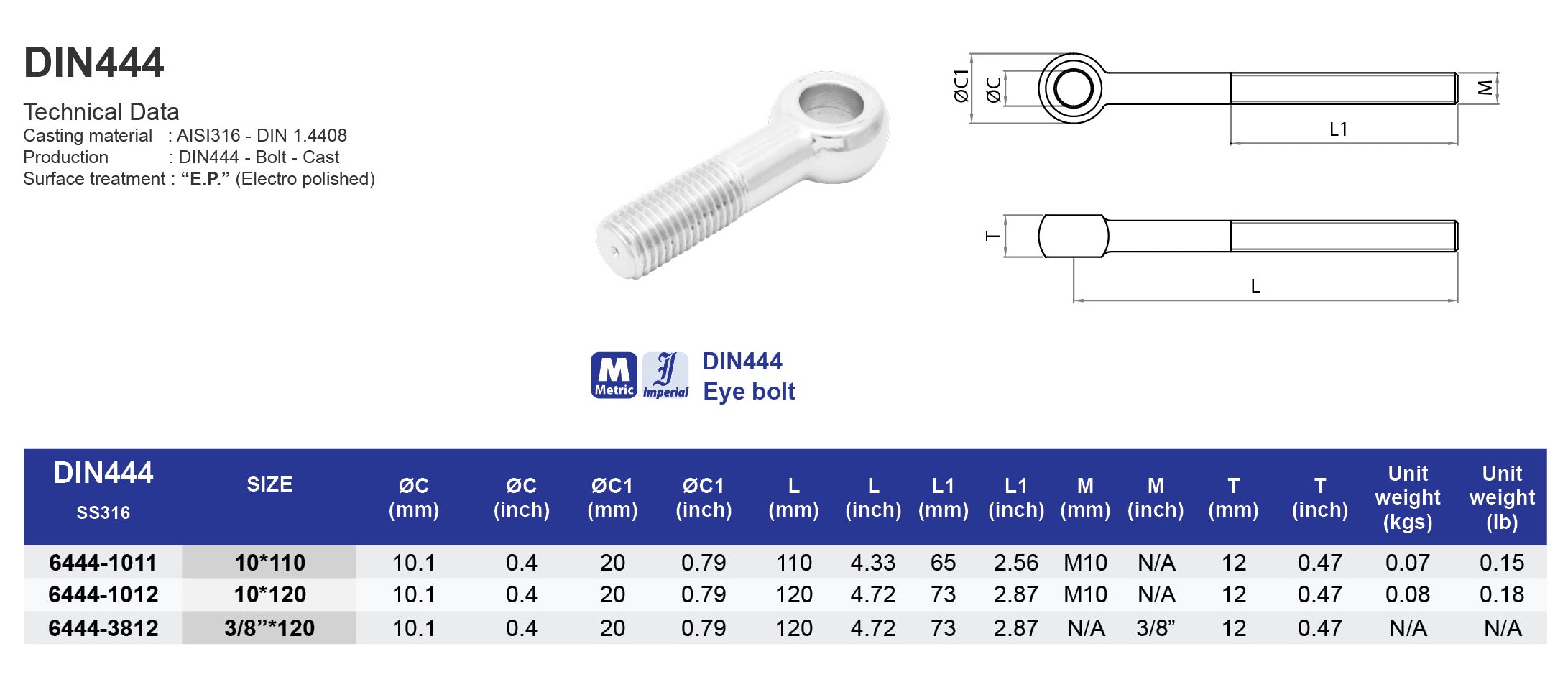

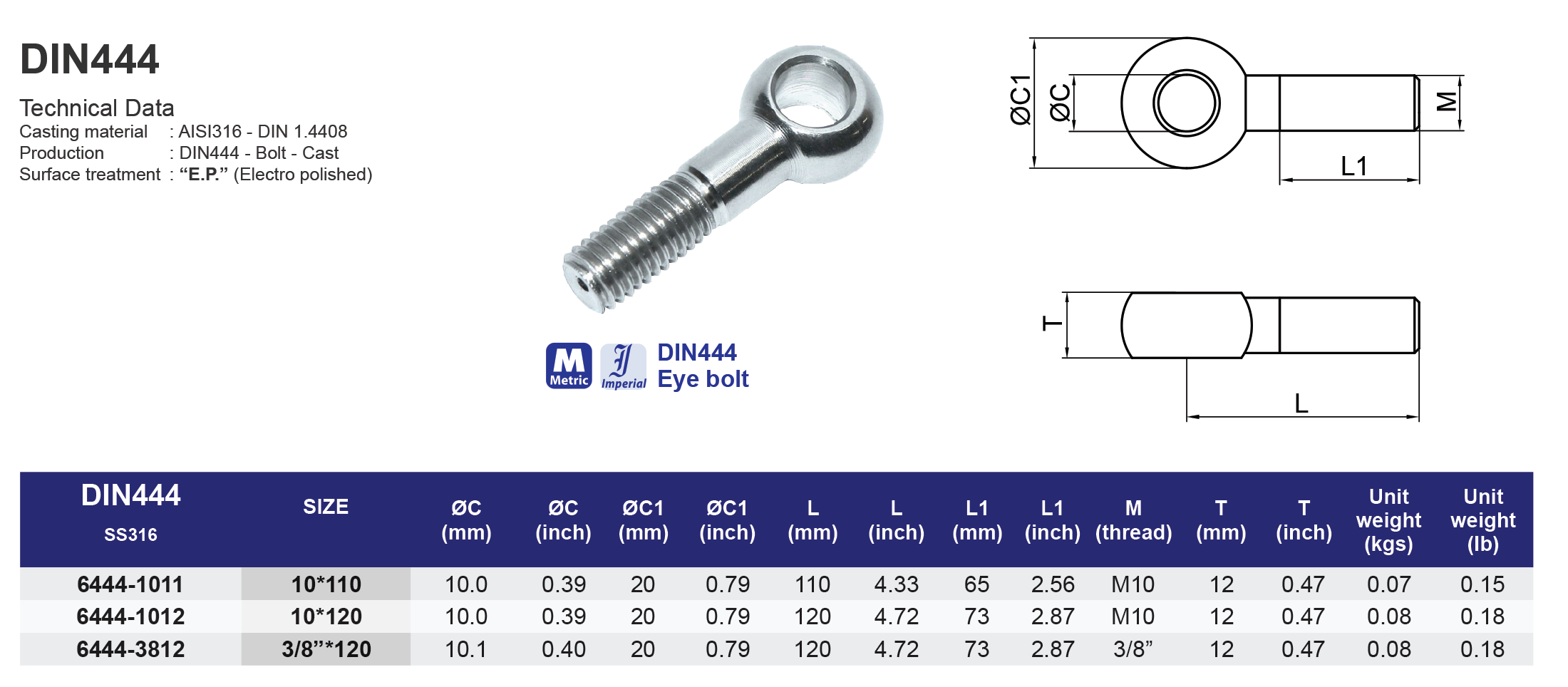

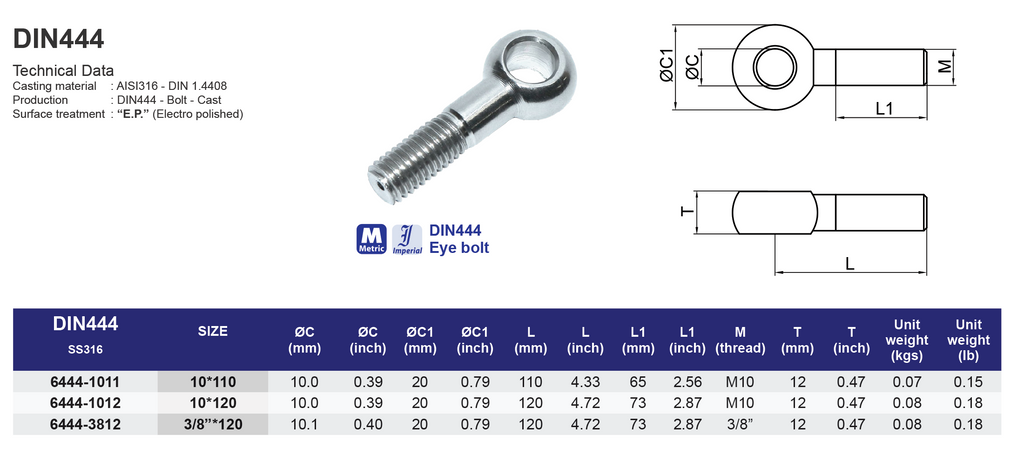

Model
DIN444

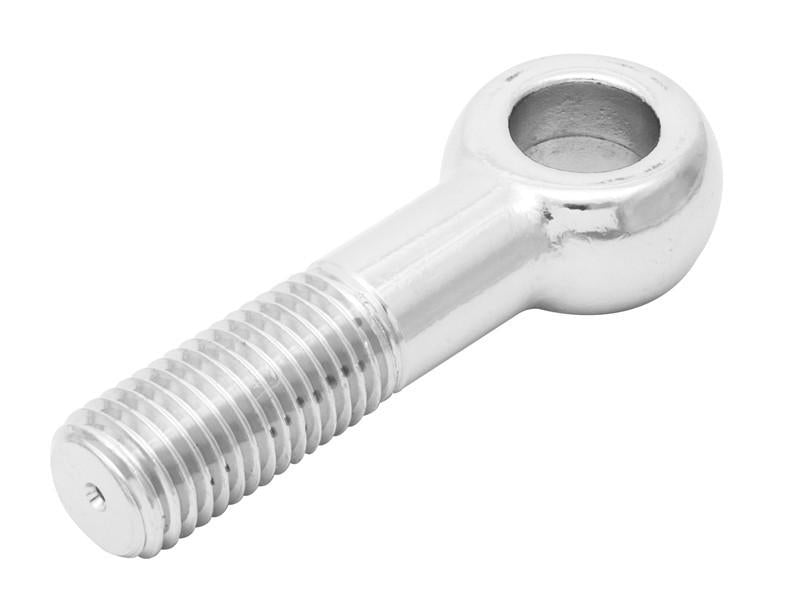

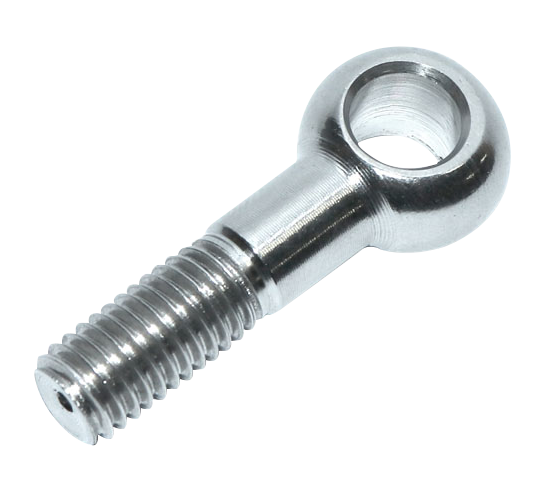

Eye Bolt
316 ss
| SS316 | Size | ØC(mm) | ØC1(mm) | L(mm) | L1(mm) | M(mm) | T(mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|---|
| 64441011 | 10*110 | 10.1 | 20 | 110 | 65 | M10 | 12 | 0.07 |
| 64441012 | 10*120 | 10.1 | 20 | 120 | 73 | M10 | 12 | 0.08 |
| SS316 | Size | ØC(inch) | ØC1(inch) | L(inch) | L1(inch) | M(inch) | T(inch) | Unit weight(Ib) |
|---|---|---|---|---|---|---|---|---|
| 64443812 | 3/8"*120 | 0.4 | 0.79 | 4.72 | 2.87 | 3/8" | 0.47 | 0.18 |
