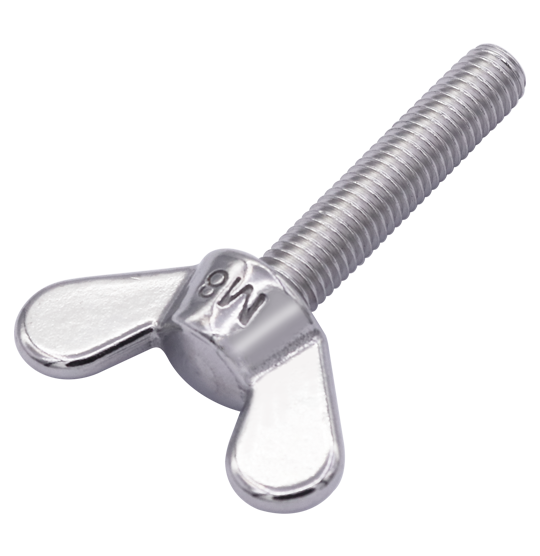

Name: DIN316 Wing bolt - 316
Brand: 316 ss
SKU: 63160515
Price: 999.99 USD
Availability: InStock

Roll over image to zoom in Click on image to zoom

Scroll to view the Specs of the Product

Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production: DIN316 - Thread - Forged
Surface Treatment: “E.P.” (Electro polished)

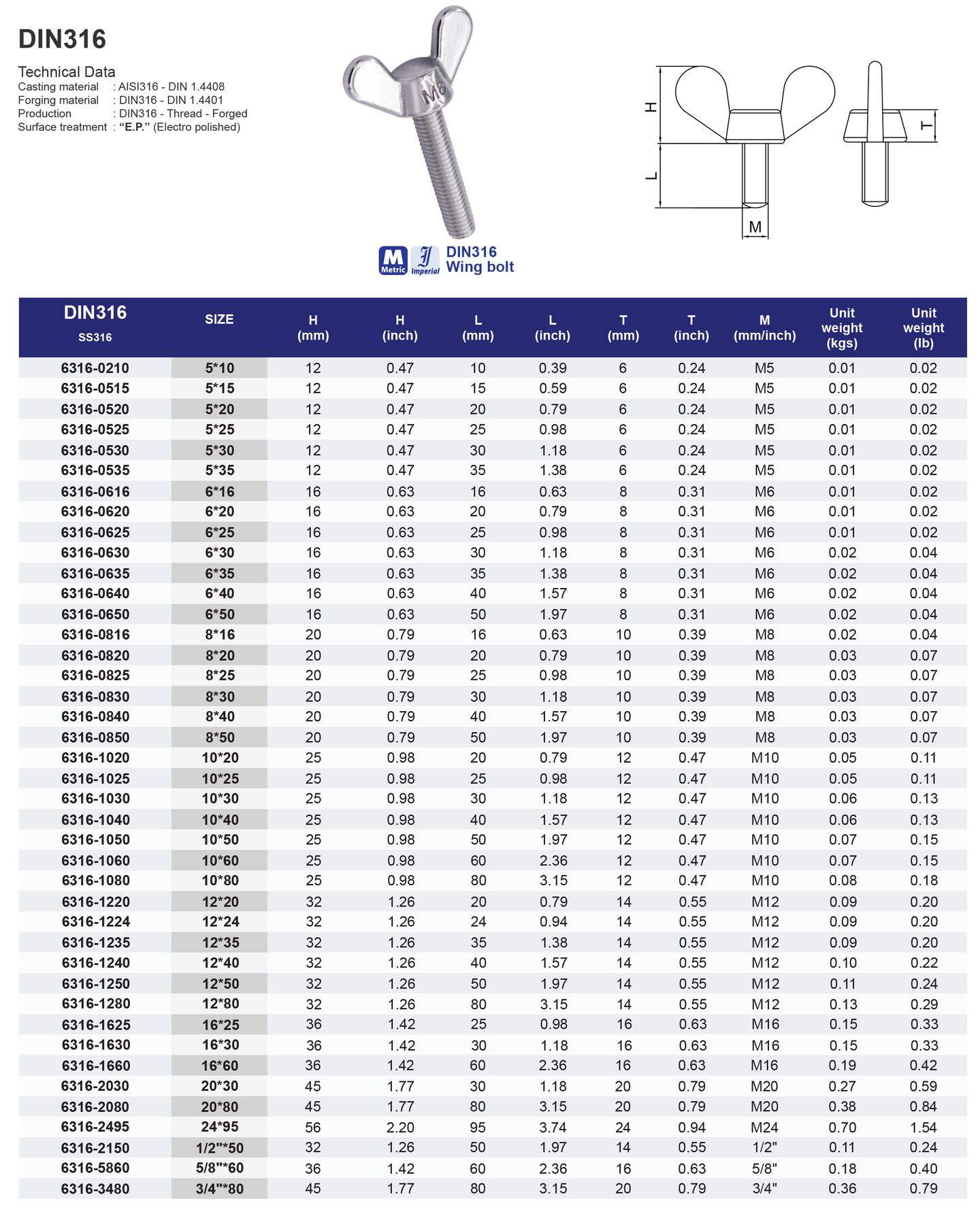

DATA SHEET DOWNLOAD

Model

DIN316

Wing bolt
316 ss

SS316	Size	H (mm)	L (mm)	T (mm)	M (mm)	Unit weight (kgs)
63160210	5*10	12	10	6	M5	0.01
63160515	5*15	12	15	6	M5	0.01
63160520	5*20	12	20	6	M5	0.01
63160525	5*25	12	25	6	M5	0.01
63160530	5*30	12	30	6	M5	0.01
63160535	5*35	12	35	6	M5	0.01
63160616	6*16	16	16	8	M6	0.01
63160620	6*20	16	20	8	M6	0.01
63160625	6*25	16	25	8	M6	0.01
63160630	6*30	16	30	8	M6	0.02
63160635	6*35	16	35	8	M6	0.02
63160640	6*40	16	40	8	M6	0.02
63160650	6*50	16	50	8	M6	0.02
63160816	8*16	20	16	10	M8	0.02
63160820	8*20	20	20	10	M8	0.03
63160825	8*25	20	25	10	M8	0.03
63160830	8*30	20	30	10	M8	0.03
63160840	8*40	20	40	10	M8	0.03
63160850	8*50	20	50	10	M8	0.03
63161020	10*20	25	20	12	M10	0.05
63161025	10*25	25	25	12	M10	0.05
63161030	10*30	25	30	12	M10	0.06
63161040	10*40	25	40	12	M10	0.06
63161050	10*50	25	50	12	M10	0.07
63161060	10*60	25	60	12	M10	0.07
63161080	10*80	25	80	12	M10	0.08
63161220	12*20	32	20	14	M12	0.09
63161224	12*24	32	24	14	M12	0.09
63161235	12*35	32	35	14	M12	0.09
63161240	12*40	32	40	14	M12	0.10
63161250	12*50	32	50	14	M12	0.11
63161280	12*80	32	80	14	M12	0.13
63161625	16*25	36	25	16	M16	0.15
63161630	16*30	36	30	16	M16	0.15
63161660	16*60	36	60	16	M16	0.19
63162030	20*30	45	30	20	M20	0.27
63162080	20*80	45	80	20	M20	0.38
63162495	24*95	56	95	24	M24	0.70

SS316	Size	H (inch)	L (inch)	T (inch)	M (inch)	Unit weight (lb)
63162150	1/2"*50	32	50	14	1/2"	0.24
63165860	5/8"*60	36	60	16	5/8"	0.40
63163480	3/4"*80	45	80	20	3/4"	0.79

DIN316 Wing bolt - 316
