Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Production: DIN315 - Nut - Cast
Surface Treatment: “E.P.” (Electro polished)

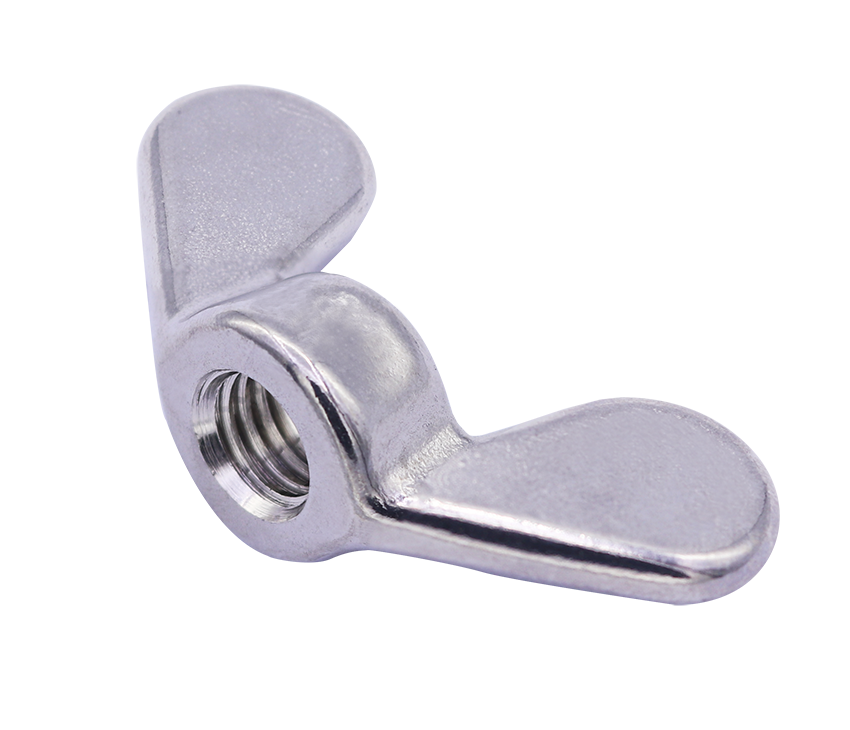

Model
DIN315
Wing nut
316 ss

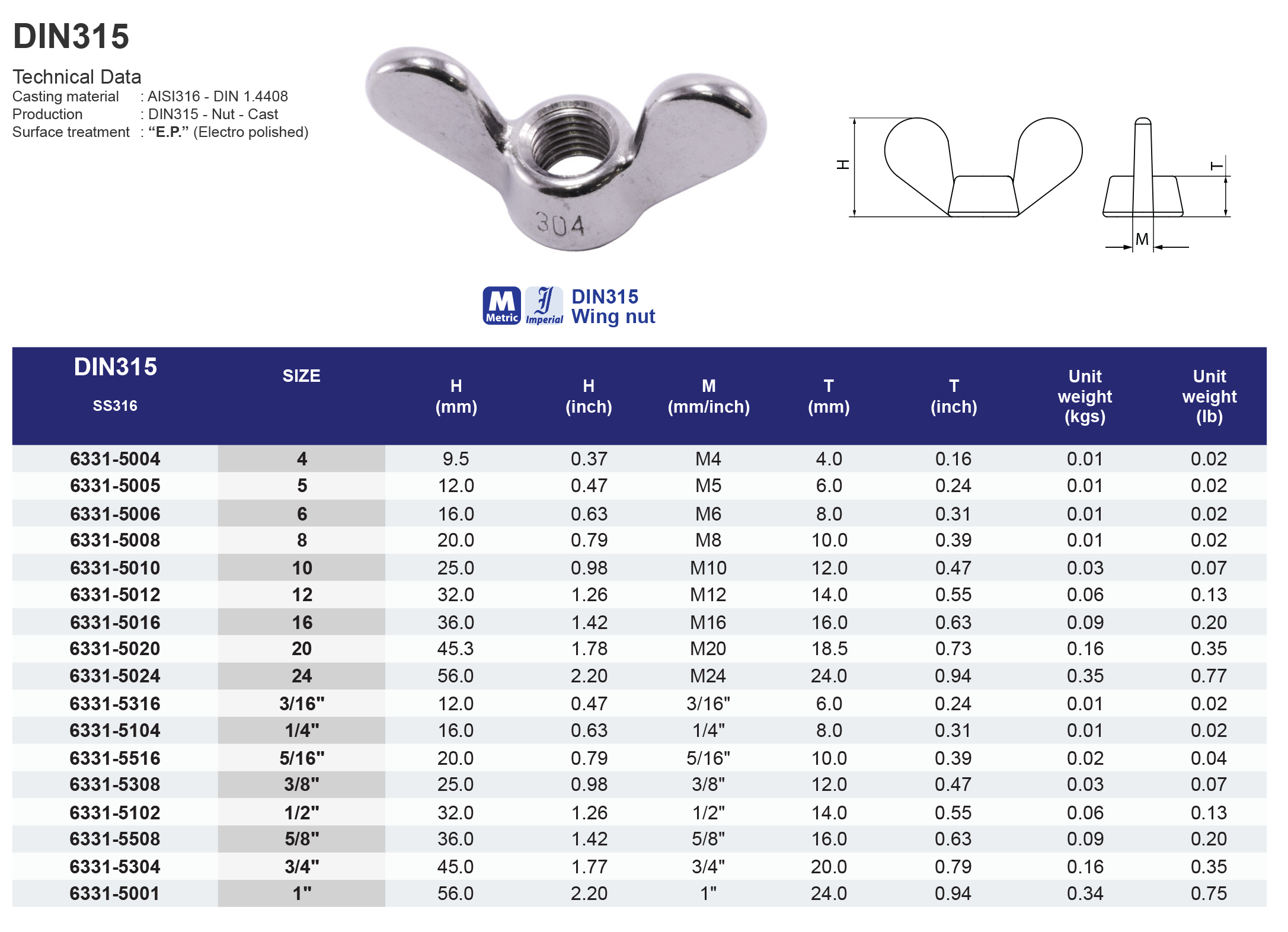

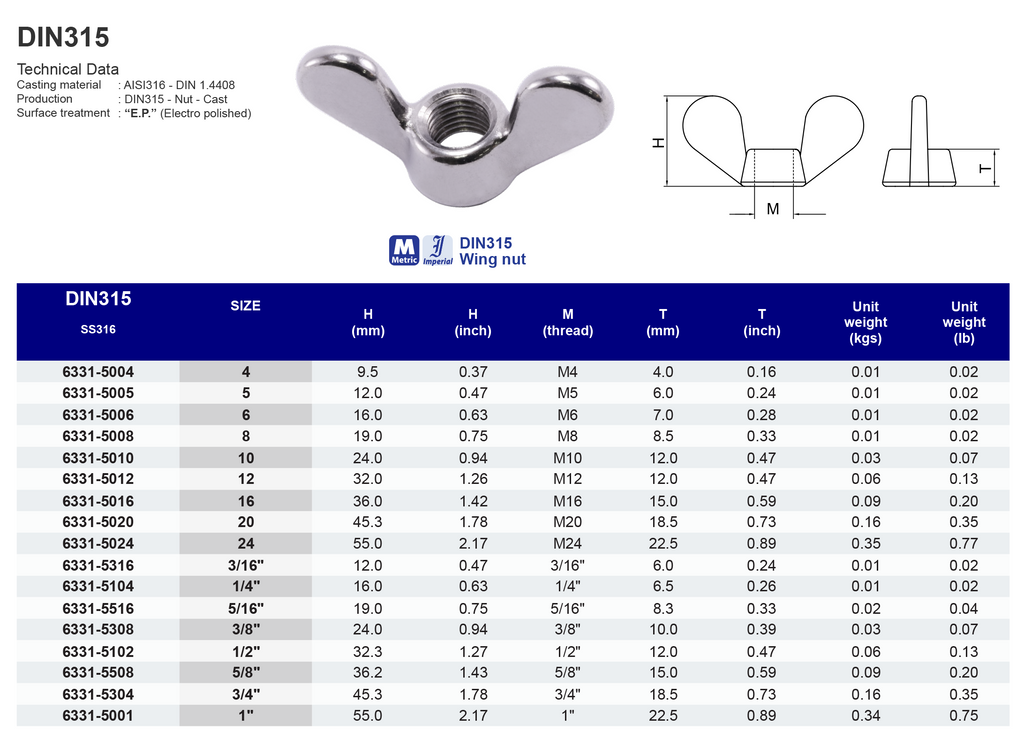

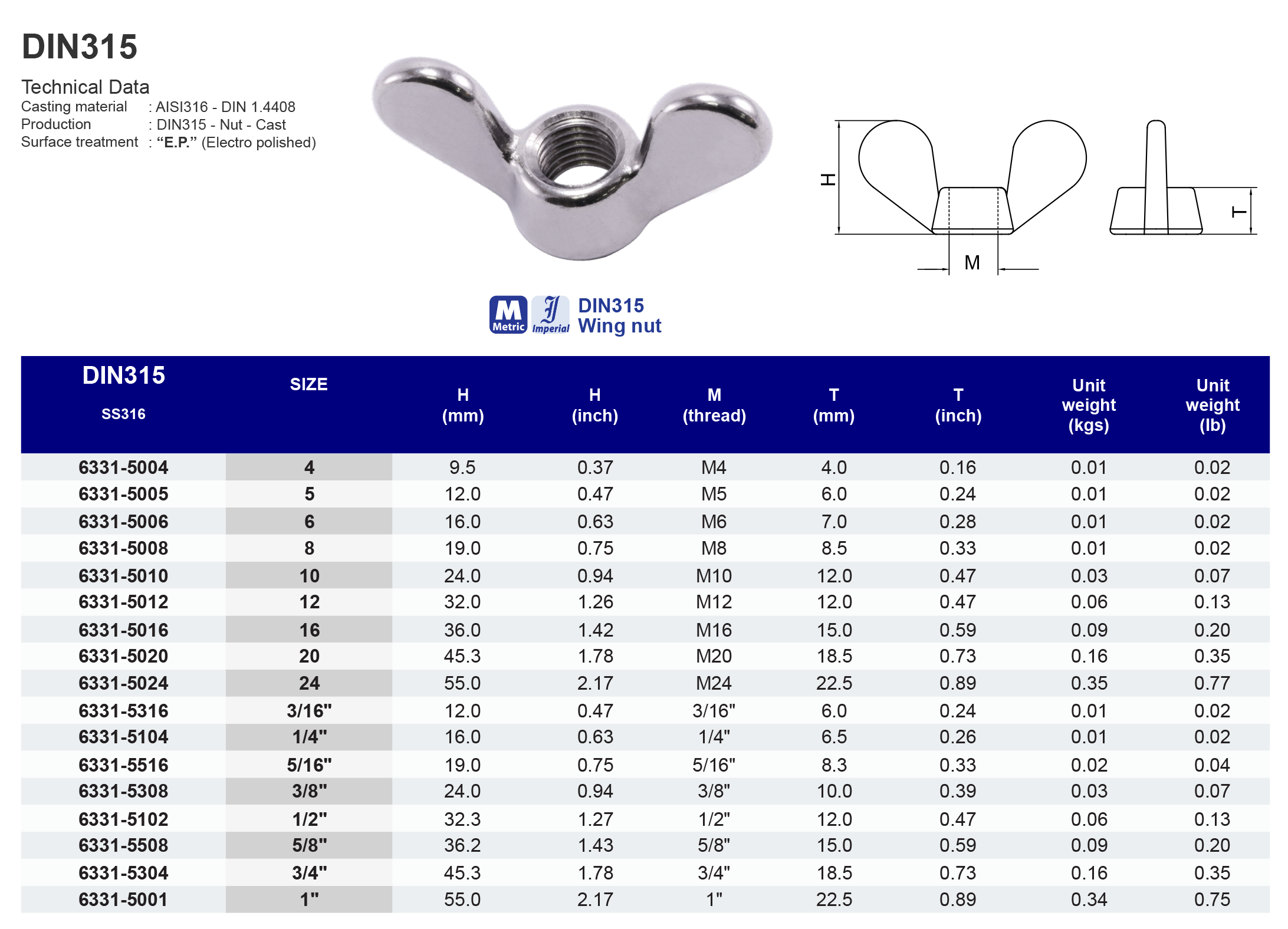

| SS316 | Size | H (mm) | M (mm) | T (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|
| 63315004 | 4 | 9.5 | M4 | 4 | 0.01 |
| 63315005 | 5 | 12 | M5 | 6 | 0.01 |
| 63315006 | 6 | 16 | M6 | 8 | 0.01 |
| 63315008 | 8 | 20 | M8 | 10 | 0.01 |
| 63315010 | 10 | 25 | M10 | 12 | 0.03 |
| 63315012 | 12 | 32 | M12 | 14 | 0.06 |
| 63315016 | 16 | 36 | M16 | 16 | 0.09 |
| 63315020 | 20 | 45.3 | M20 | 18.5 | 0.16 |
| 63315024 | 24 | 56 | M24 | 24 | 0.35 |
| SS316 | Size | H (inch) | M (inch) | T (inch) | Unit weight (lb) |
|---|---|---|---|---|---|
| 63315316 | 3/16"UNC | 0.47 | 3/16" | 0.24 | 0.02 |
| 63315104 | 1/4"UNC | 0.63 | 1/4" | 0.31 | 0.02 |
| 63315516 | 5/16"UNC | 0.79 | 5/16" | 0.39 | 0.04 |
| 63315308 | 3/8"UNC | 0.98 | 3/8" | 0.47 | 0.07 |
| 63315102 | 1/2"UNC | 1.26 | 1/2" | 0.55 | 0.13 |
| 63315508 | 5/8"UNC | 1.42 | 5/8" | 0.63 | 0.2 |
| 63315304 | 3/4"UNC | 1.77 | 3/4" | 0.79 | 0.35 |
| 63315001 | 1"UNC | 2.20 | 1" | 0.94 | 0.75 |
