Description
Technical Data:
Forging Material: AISI 316 - DIN 1.4401
Production: Machined
Surface Treatment: “E.P.” (Electro Polished)

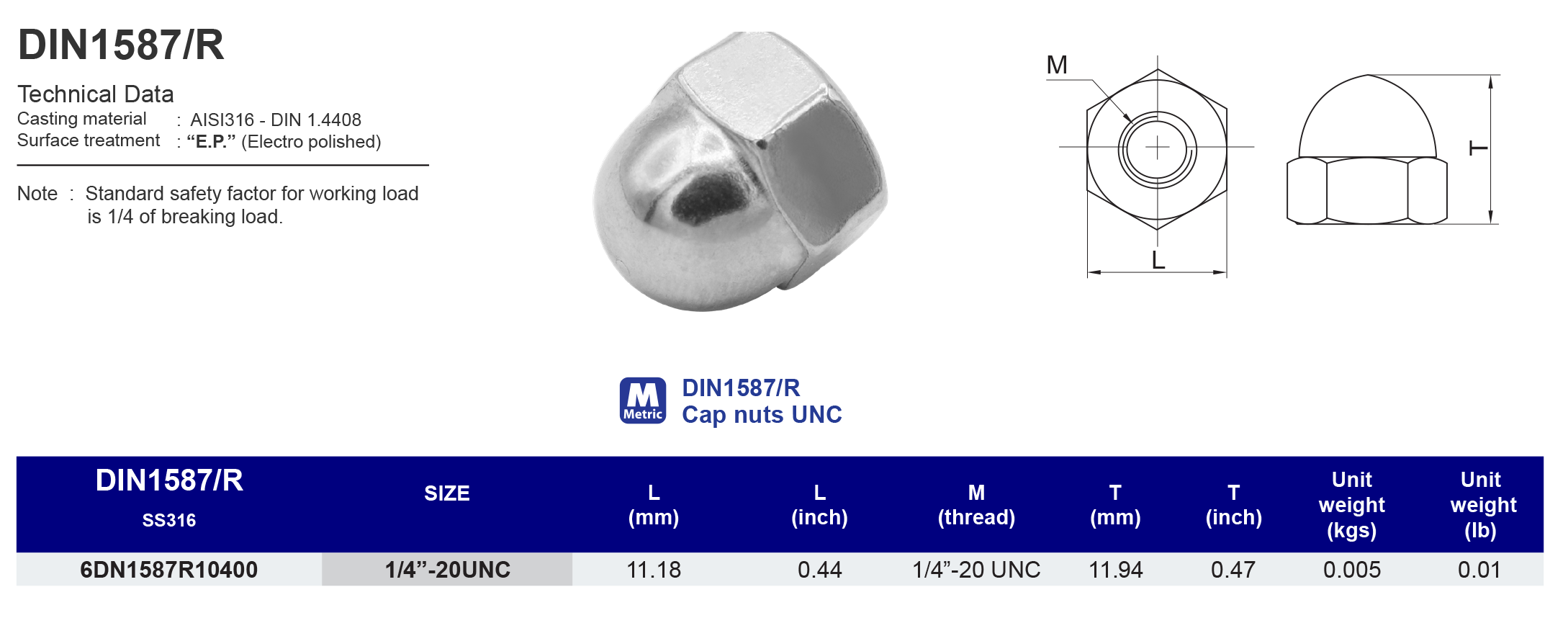

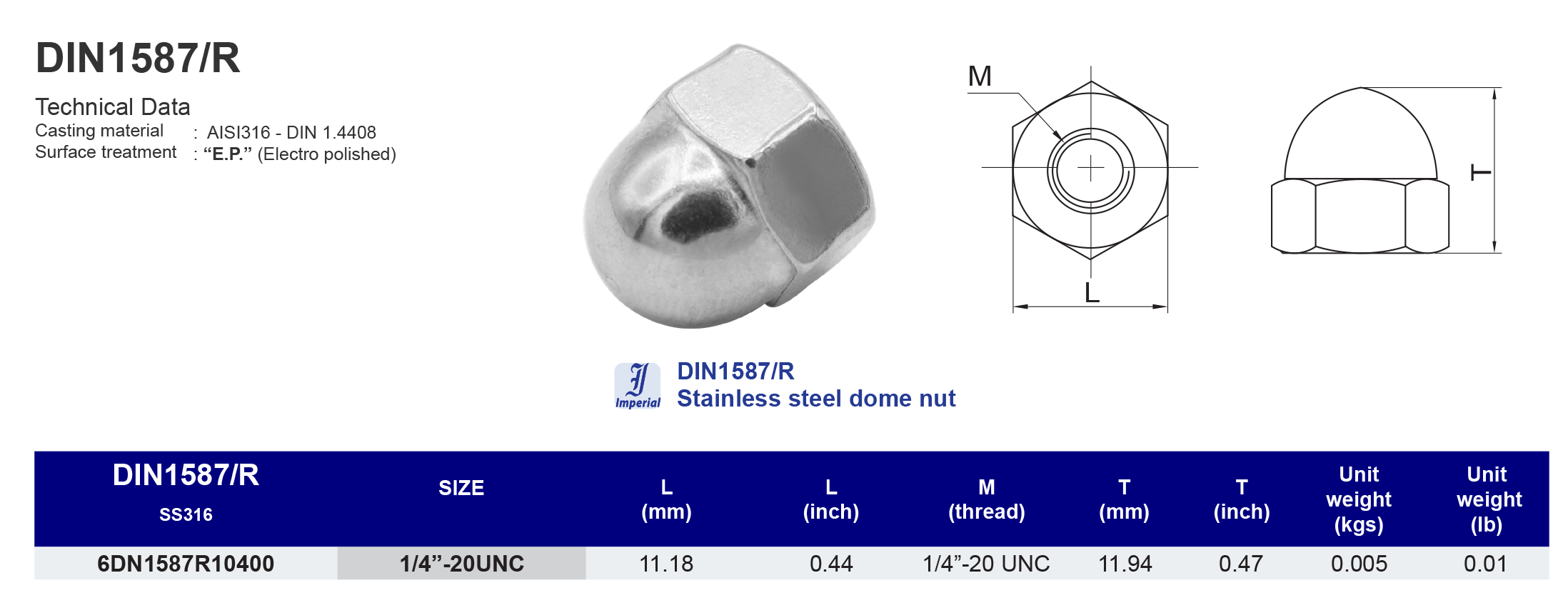

Model
DIN1587/R
Cap nuts UNC
316 ss
| SS316 | Size | L (mm) | M (thread) | T (mm) | Weight (kgs) |
|---|---|---|---|---|---|
| 6DN1587R10400 | 1/4"-20UNC | 11.18 | 1/4"-20 UNC | 11.94 | 0.005 |
| SS316 | Size | L (inch) | M (thread) | T (inch) | Weight (lb) |
|---|---|---|---|---|---|
| 6DN1587R10400 | 1/4"-20UNC | 0.44 | 1/4"-20 UNC | 0.47 | 0.01 |
