Description
Technical Data:
Forging Material:
AISI 304 - DIN 1.4301
Production: Forged
Surface Treatment: Electro Polished / Passivated
Model
BFOP-PIN

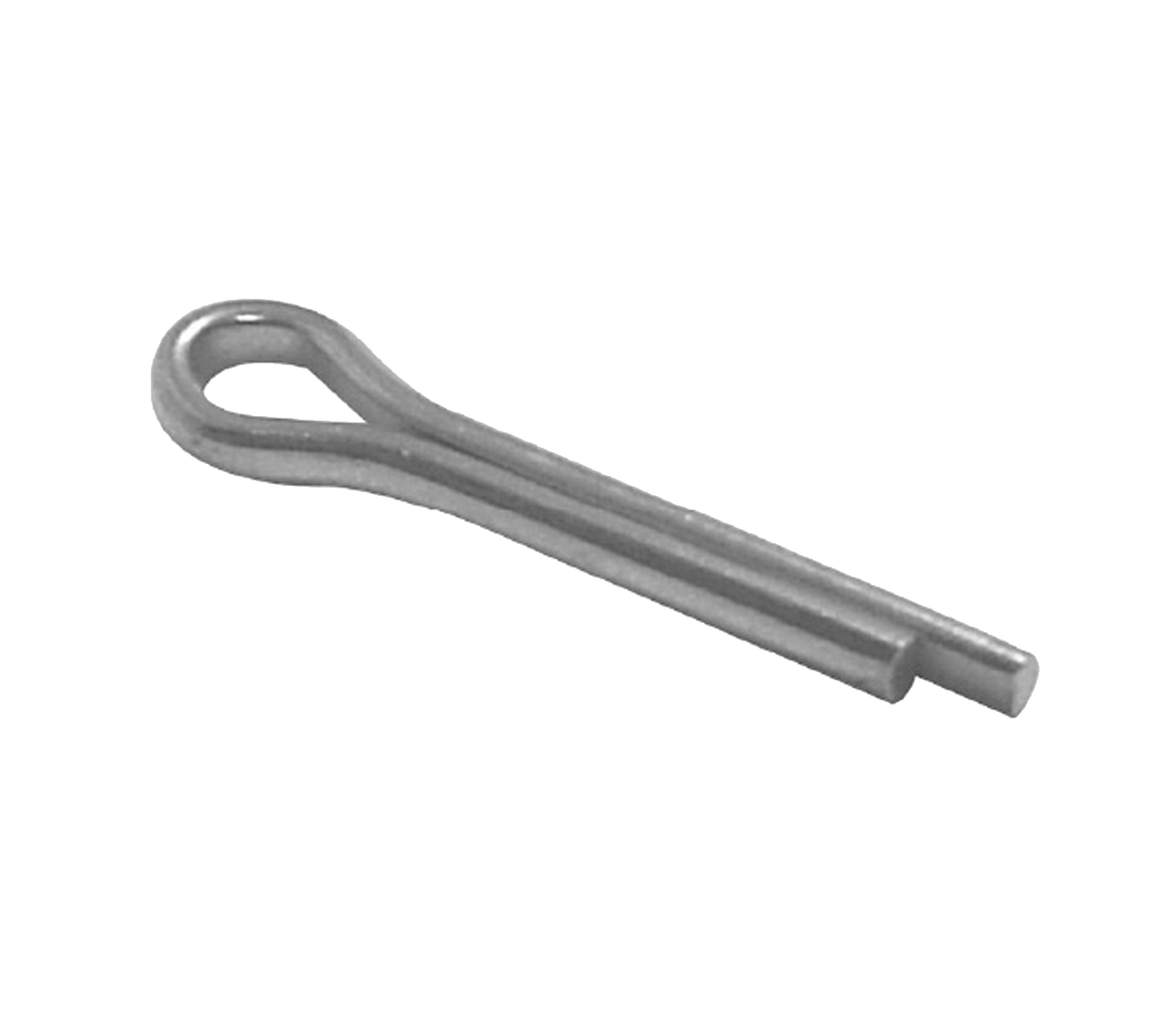

Cotter Pin
304 ss

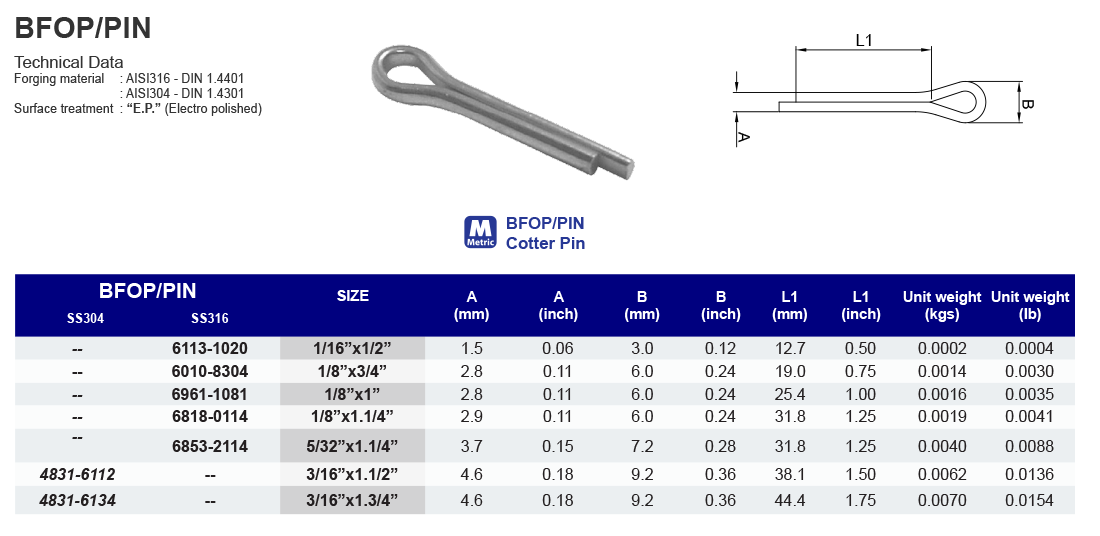

| SS304 | Size | A(mm) | B(mm) | L1(mm) | Unit Weight( kgs) |
|---|---|---|---|---|---|
| 48316112 | 3/16"x1.1/2" | 4.6 | 9.2 | 38.1 | 0.0062 |
| 48316134 | 3/16"x1.3/4" | 4.6 | 9.2 | 44.4 | 0.0070 |
| SS304 | Size | A(mm) | B(mm) | L1(mm) | Unit Weight( kgs) |
|---|---|---|---|---|---|
| 48316112 | 3/16"x1.1/2" | 0.18 | 0.36 | 1.50 | 0.0136 |
| 48316134 | 3/16"x1.3/4" | 0.18 | 0.36 | 1.75 | 0.0154 |
