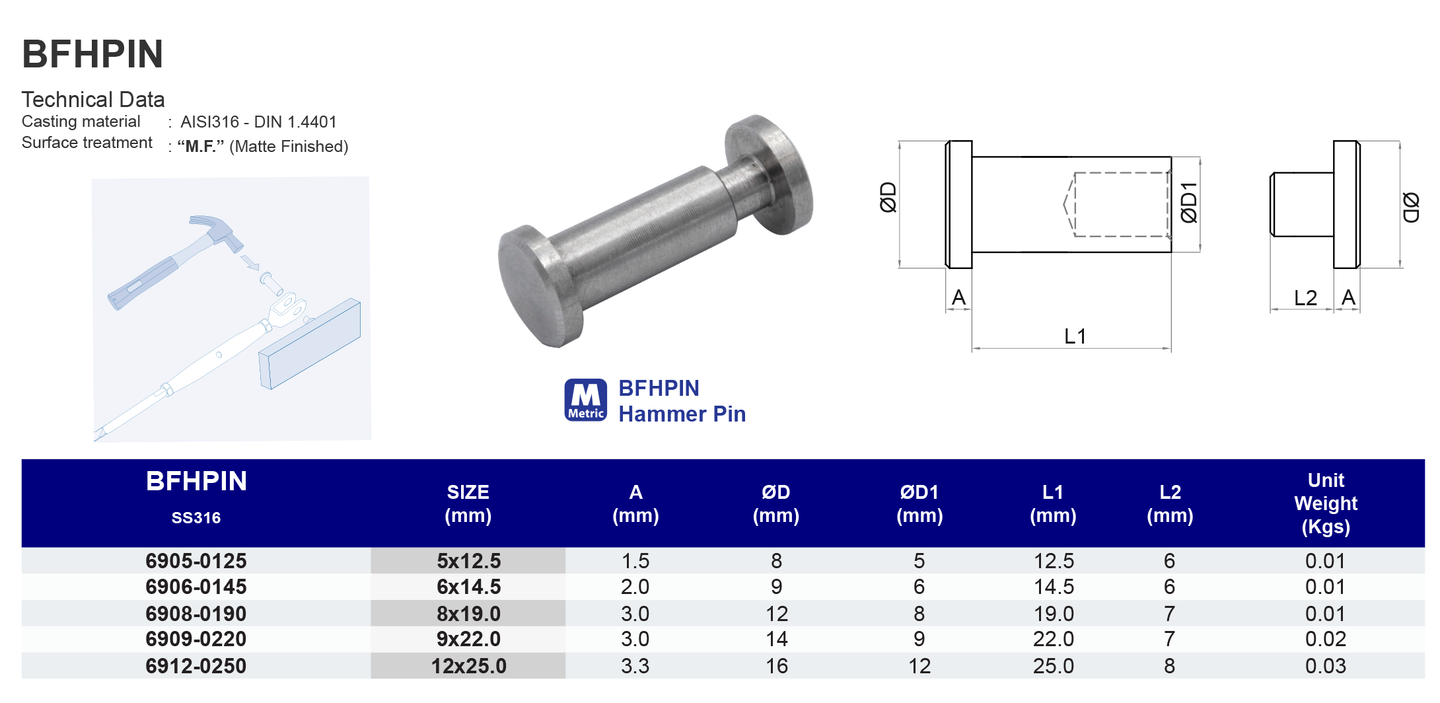

Description
Technical Data:
Casting material : AISI316 , EN 1.4401
Surface Treatment: "M.F." (Matte finished)
Model
BFHPIN

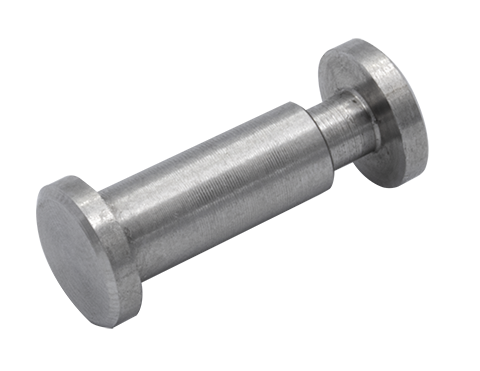

Hammer pin
316 ss

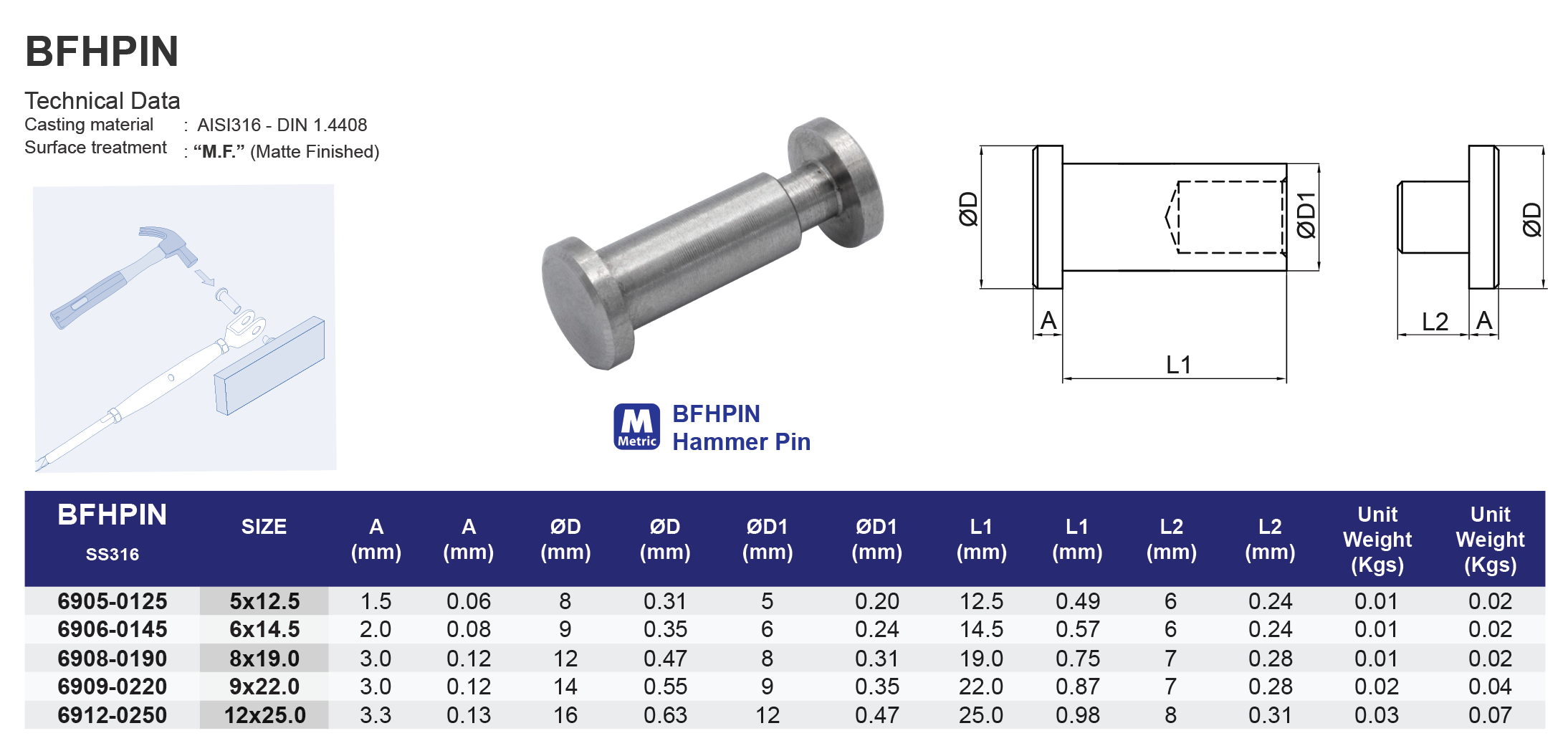

| SS316 | SIZE (mm) | A (mm) | ØD (mm) | ØD1 (mm) | L1 (mm) | L2 (mm) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 69050125 | 5 | 1.5 | 8 | 5 | 12.5 | 6 | 0.01 |
| 69060145 | 6 | 2 | 9 | 6 | 14.5 | 6 | 0.01 |
| 69080190 | 8 | 3 | 12 | 8 | 19 | 7 | 0.01 |
| 69090220 | 9 | 3 | 14 | 9 | 22 | 7 | 0.02 |
| 69120250 | 12 | 3.3 | 16 | 12 | 25 | 8 | 0.03 |
| SS316 | SIZE (inch) | A (inch) | ØD (inch) | ØD1 (inch) | L1 (inch) | L2 (inch) | Unit weight (kgs) |
|---|---|---|---|---|---|---|---|
| 69050125 | 3/16" | 0.06 | 0.31 | 3/16" | 0.49 | 0.24 | 0.01 |
| 69060145 | 1/4" | 0.08 | 0.35 | 1/4" | 0.57 | 0.24 | 0.01 |
| 69080190 | 5/16" | 0.12 | 0.47 | 5/16" | 0.75 | 0.28 | 0.01 |
| 69090220 | 11/32" | 0.12 | 0.55 | 11/32" | 0.87 | 0.28 | 0.02 |
| 69120250 | 1/2" | 0.13 | 0.63 | 1/2" | 0.98 | 0.31 | 0.03 |
