Description
Technical Data:
Forging material : AISI316 - DIN 1.4401
Production : SF7803S - Jaw - Cast
Pin - Forged
Accessory - Ring
Surface treatment : “E.P.” (Electro polished) Note : Standard safety factor for working load
is 1/4 of breaking load.
DATA SHEET DOWNLOAD
Model
SF7803S
Swage Forks
316 ss

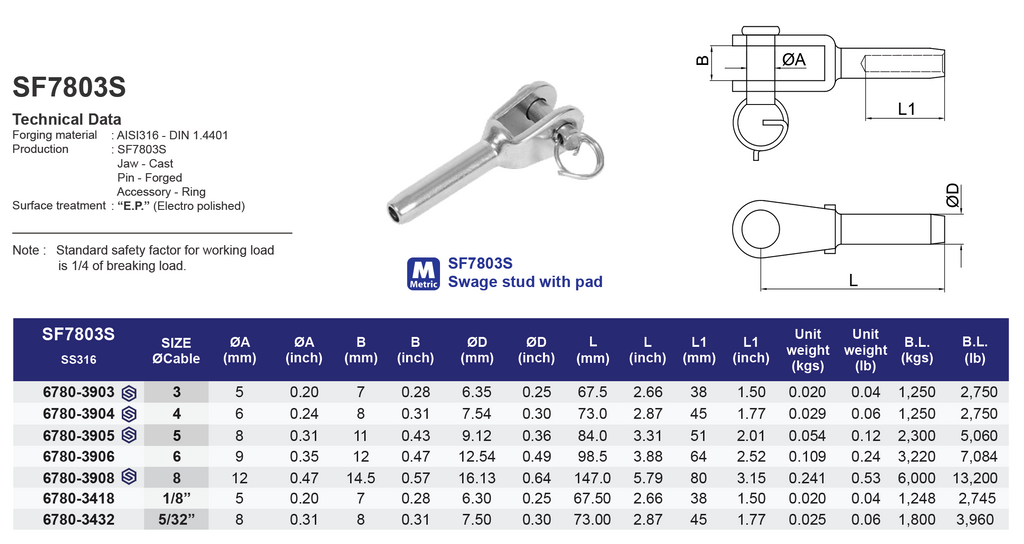

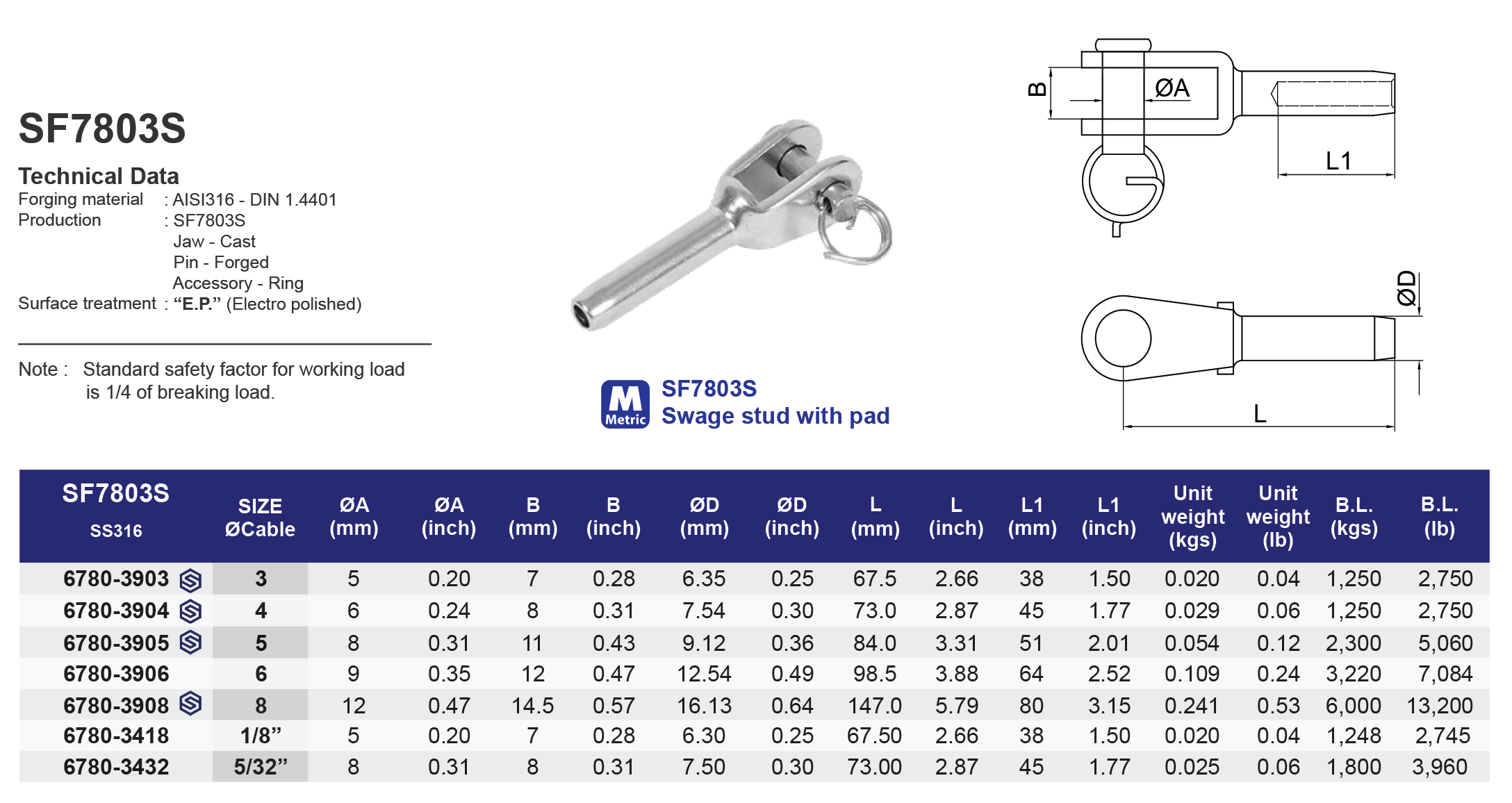

| SS316 | Size ØCable (mm) | ØA (mm) | B (mm) | ØD (mm) | L (mm) | L1 (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|---|---|
| 67803903 | 3 | 5 | 7 | 5.53 | 53.5 | 32 | 0.020 | 1,250 |
| 67803904 | 4 | 6 | 7 | 5.53 | 62 | 35 | 0.029 | 1,250 |
| 67803905 | 5 | 8 | 8 | 6.35 | 68 | 38 | 0.054 | 2,300 |
| 67803906 | 6 | 9 | 11 | 7.54 | 77 | 45 | 0.060 | 3,220 |
| 67803908 | 8 | 12 | 12 | 9.12 | 87 | 51 | 0.241 | 6,000 |
| SS316 | Size ØCable (mm) | ØA (inch) | B (inch) | ØD (inch) | L (inch) | L1 (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|---|---|
| 67803903 | 3 | 0.20 | 0.28 | 0.22 | 2.11 | 1.26 | 0.04 | 2,750 |
| 67803904 | 4 | 0.24 | 0.28 | 0.22 | 2.44 | 1.38 | 0.06 | 2,750 |
| 67803905 | 5 | 0.31 | 0.31 | 0.25 | 2.68 | 1.50 | 0.12 | 5,060 |
| 67803906 | 6 | 0.35 | 0.43 | 0.30 | 3.03 | 1.77 | 0.13 | 7,084 |
| 67803908 | 8 | 0.47 | 0.47 | 0.36 | 3.43 | 2.01 | 0.53 | 13,200 |
