Description
Technical Data:
Casting Material: AISI316 - DIN 1.4408
Forging Material: AISI316 - DIN 1.4401
Production:
S2478 - Shackle - Cast
Swivel - Cast
Pin - Forged
Surface treatment : “E.P.” (Electro polished)
Note : Standard safety factor for working load is 1/4 of breaking load

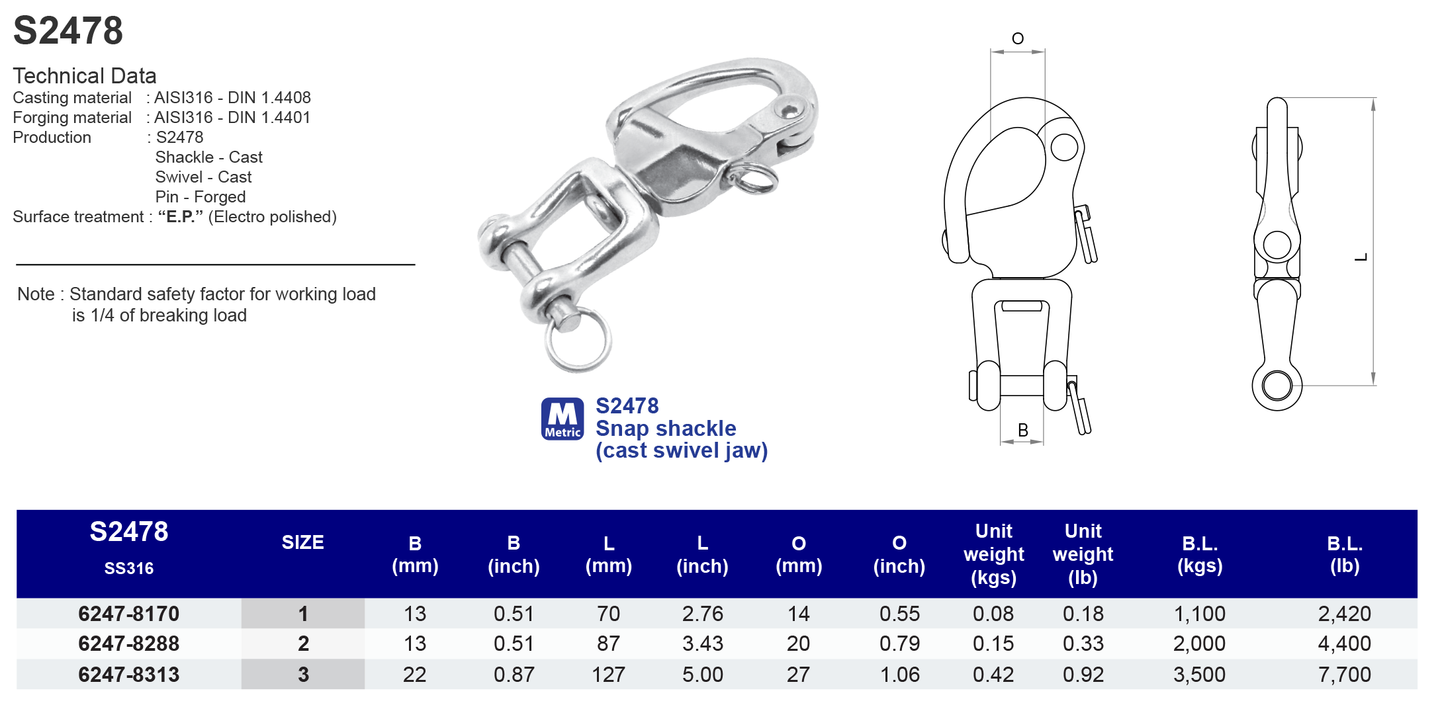

Model
S2478

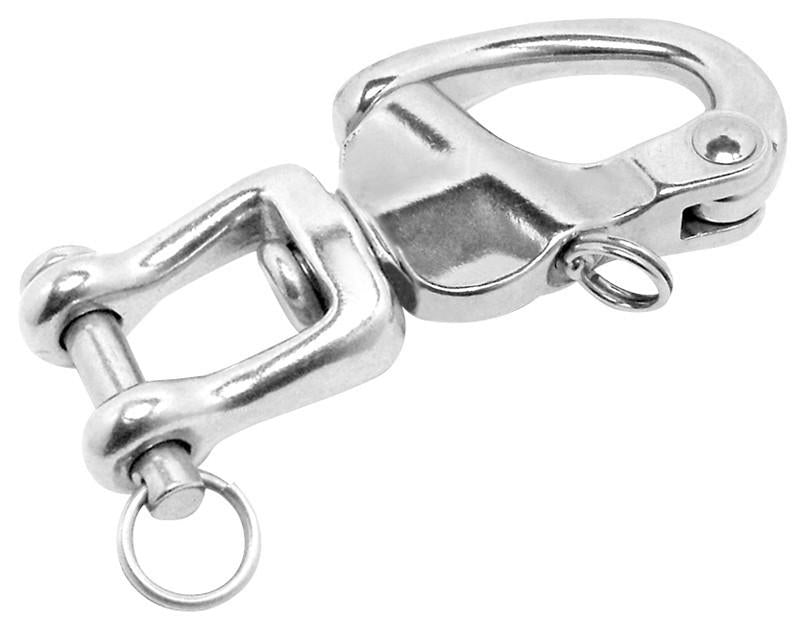

Snap shackle (cast swivel jaw)
316 ss
| SS316 | Size | B (mm) | L (mm) | O (mm) | Unit weight (kgs) | B.L. (kgs) |
|---|---|---|---|---|---|---|
| 62478170 | 1 | 13 | 70 | 14 | 0.08 | 1,100 |
| 62478288 | 2 | 13 | 87 | 20 | 0.15 | 2,000 |
| 62478313 | 3 | 22 | 127 | 27 | 0.42 | 3,500 |
| SS316 | Size | B (inch) | L (inch) | O (inch) | Unit weight (lb) | B.L. (lb) |
|---|---|---|---|---|---|---|
| 62478170 | 1/2" | 0.51 | 2.76 | 0.55 | 0.18 | 2,420 |
| 62478288 | 5/8" | 0.51 | 3.43 | 0.79 | 0.33 | 4,400 |
| 62478313 | 7/8" | 0.87 | 5.00 | 1.06 | 0.92 | 7,700 |
